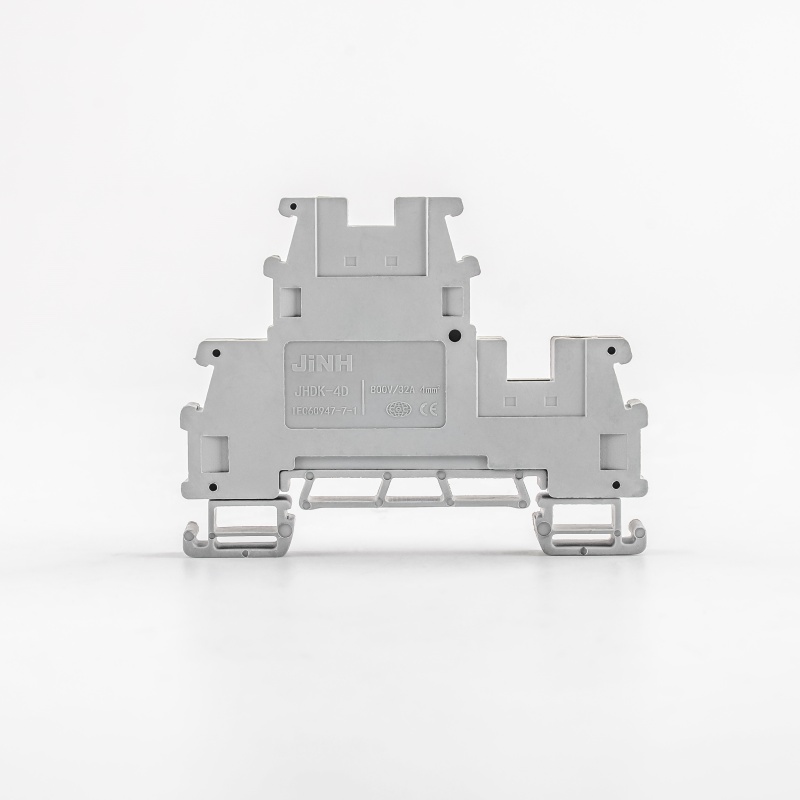

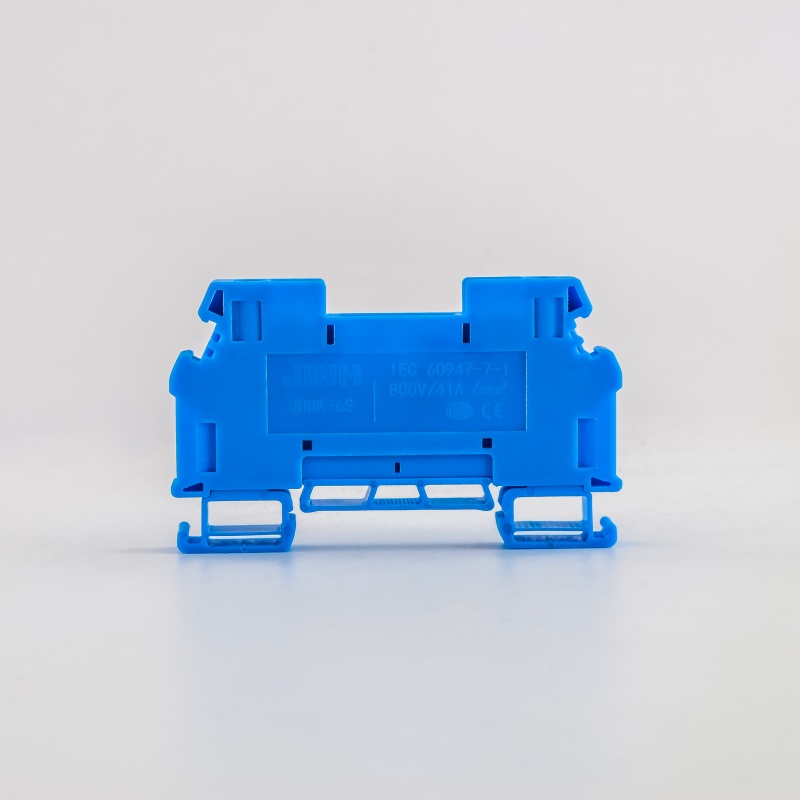

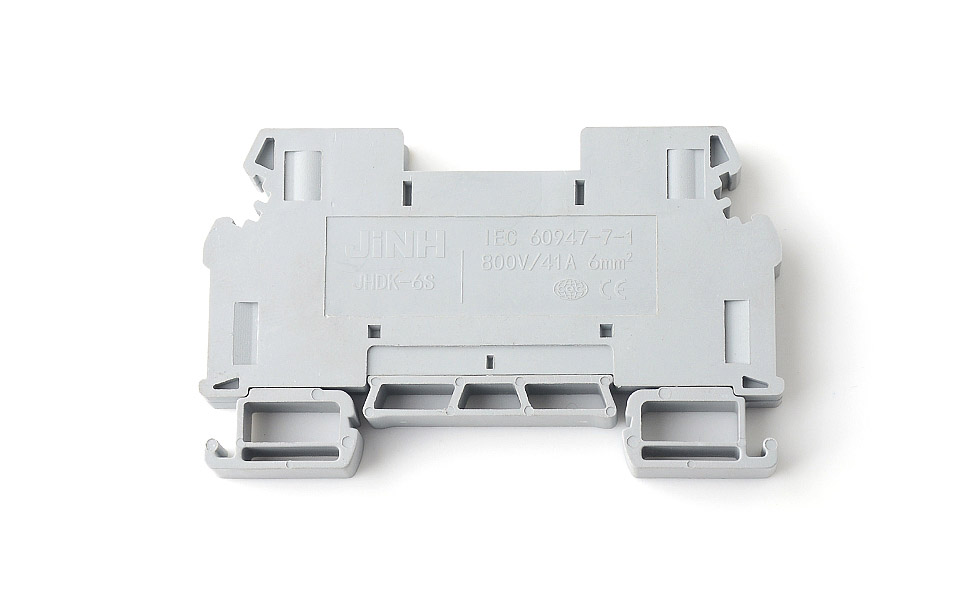

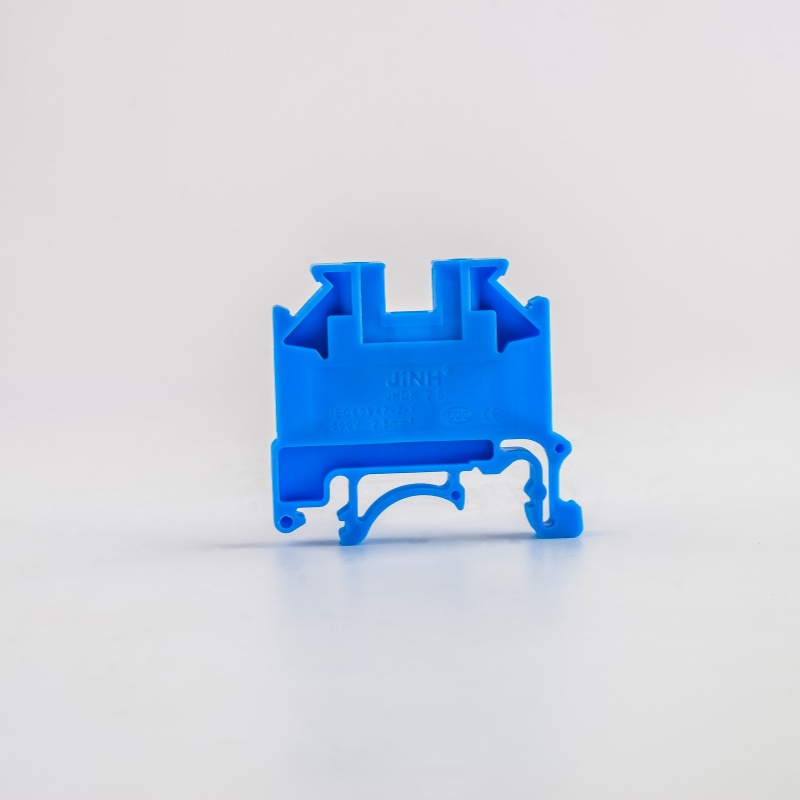

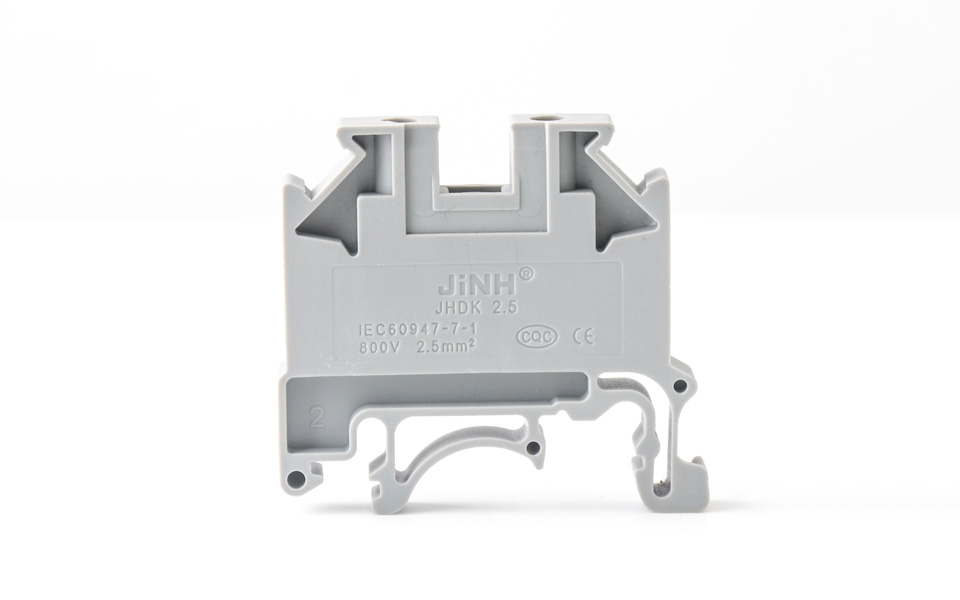

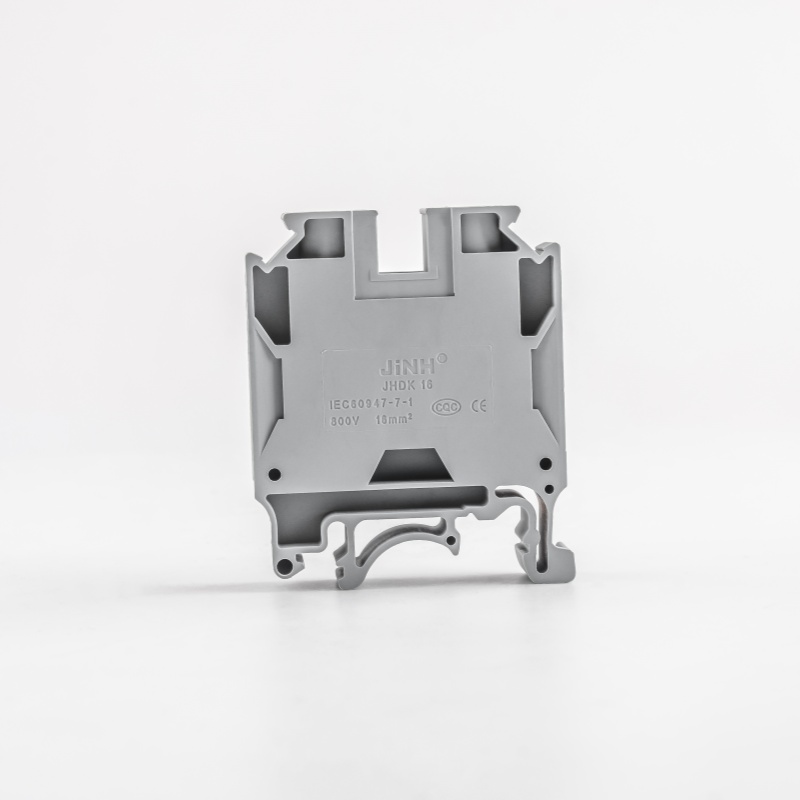

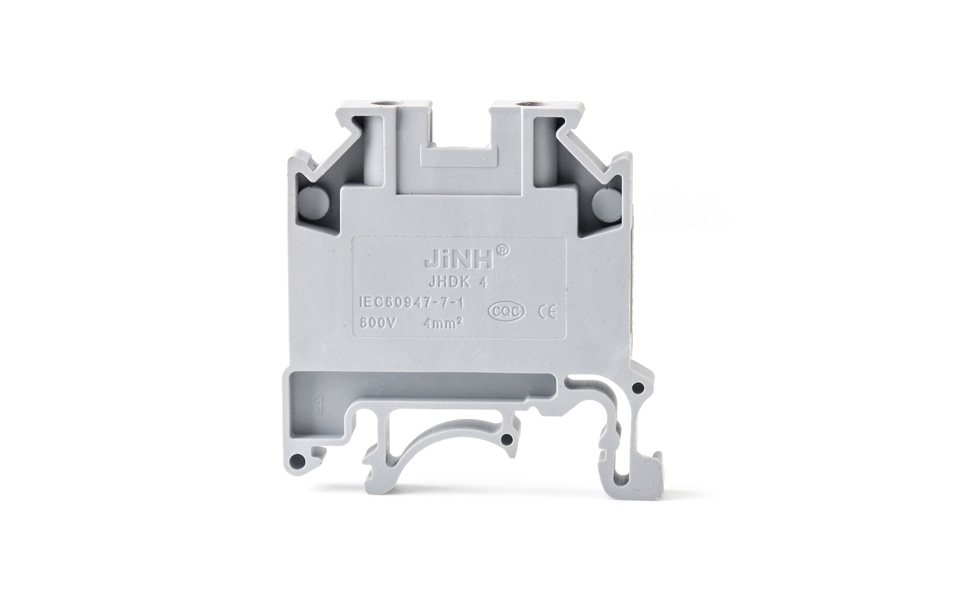

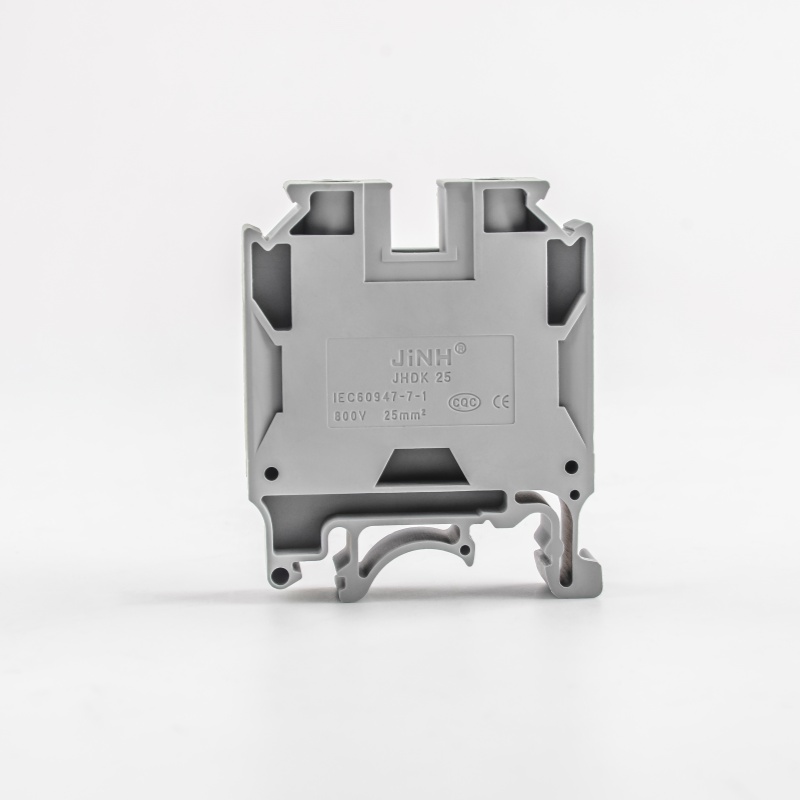

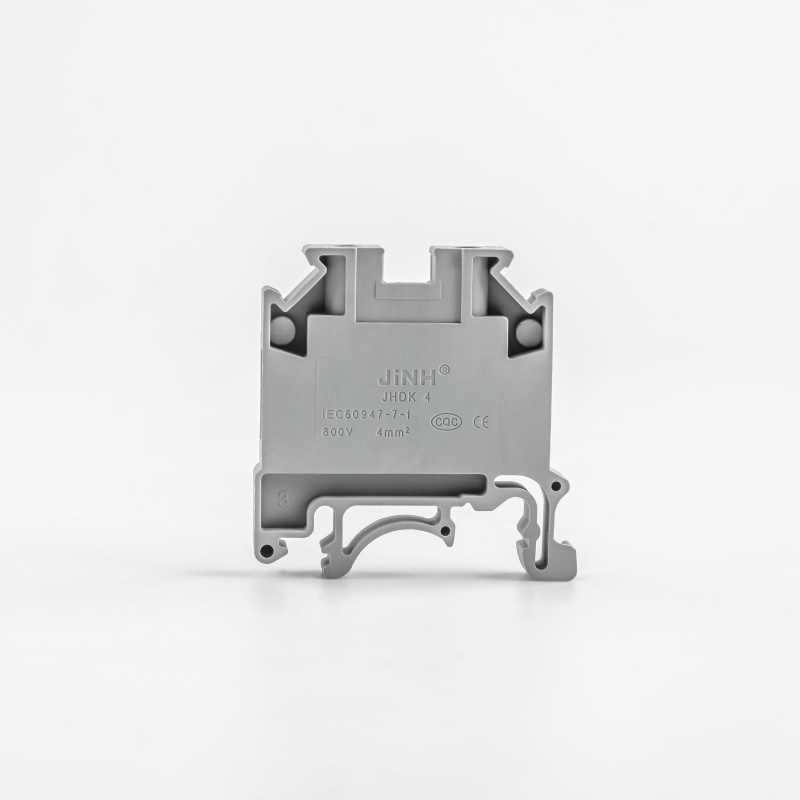

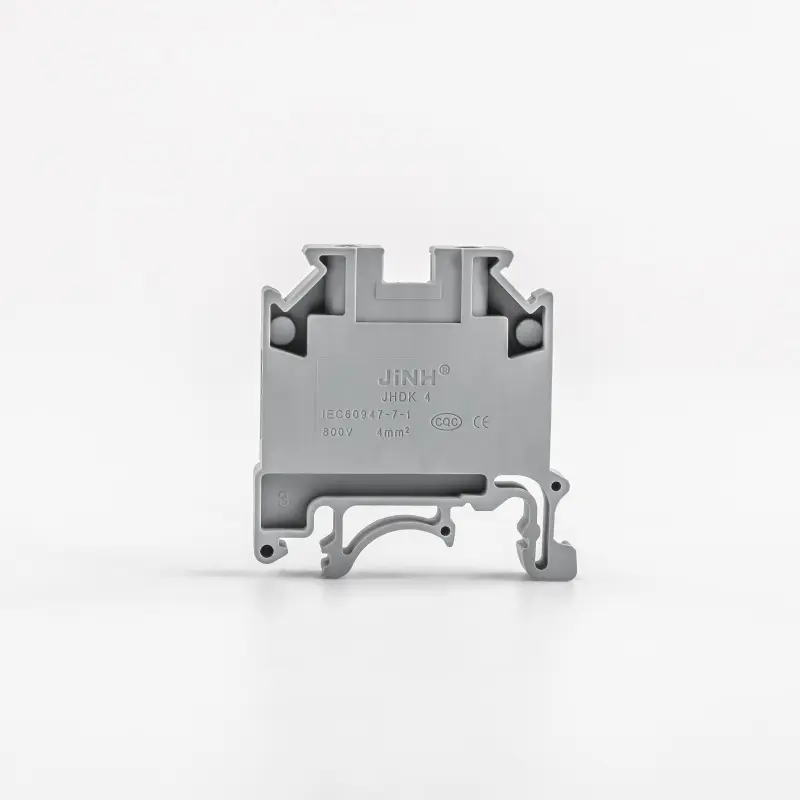

DK Terminal Blocks With Customizable Baffles
JINH DK Terminal Block is an upgraded version of the UK terminal block. The DK Terminal Block eliminates the need to purchase separate shield plates, as each terminal is equipped with its own shield plate, saving installation time.
Quick Quote

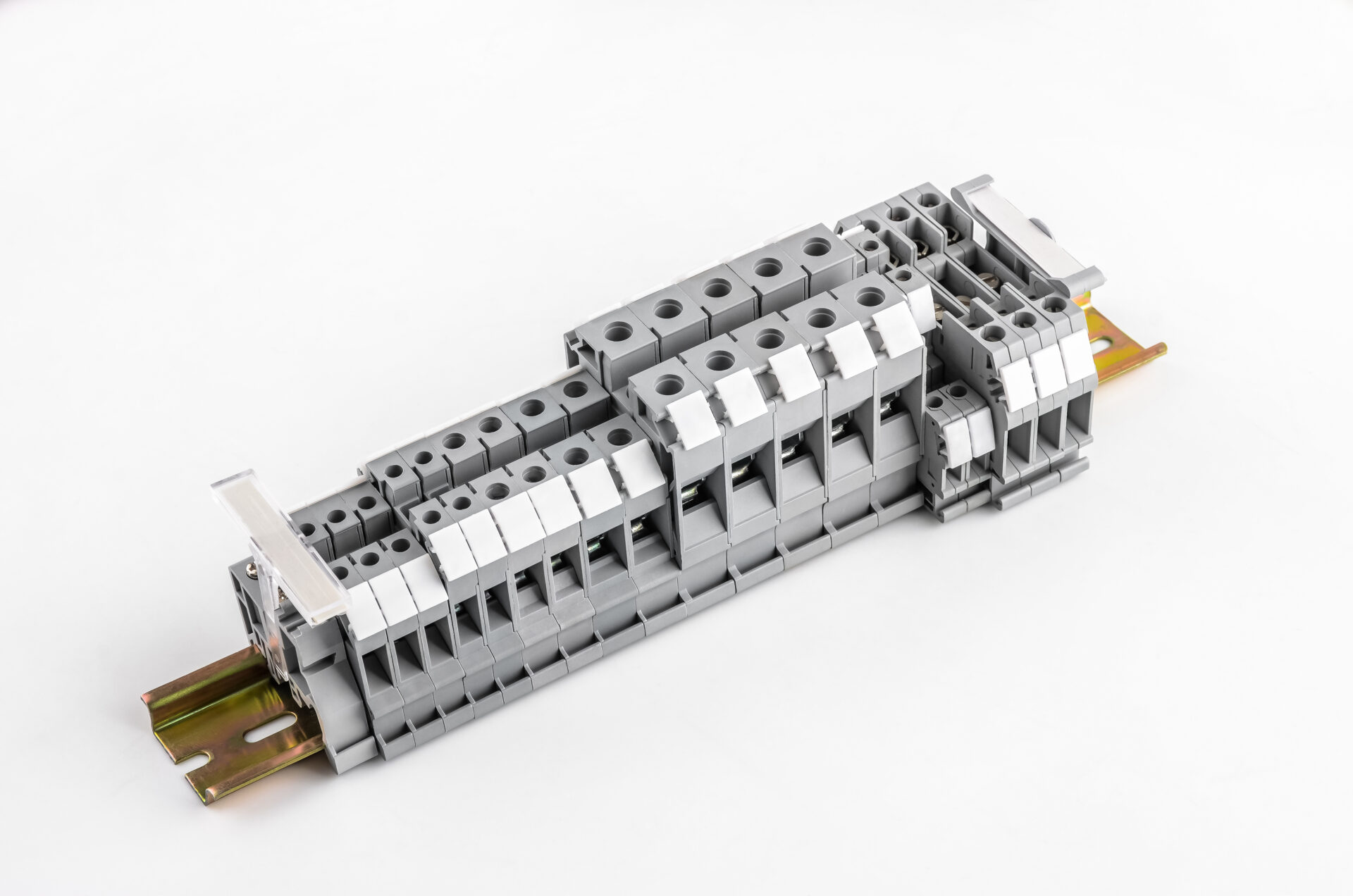

JINH DK Din Rail Terminal Block
Explore the features and benefits of JINH DK Terminal Blocks to discover how our DK terminal blocks meet your wiring needs.
- 1.Housing Material：PA66,Flame Retardant Rating UL94 V0
- 2.DIN Rail Mounting：They snap onto a standard 35mm DIN rail
- 3.Conductive materials：Tin-plated copper,Resistant to corrosion and oxidation, extending service life.
- 4.Clamping Mechanism:A screw is tightened down onto the conductor, providing a very strong and reliable connection.
- 5.High-quality terminal blocks mean fewer failures and less downtime.
- 6.Providing a safe, organized, and highly flexible connection system.
DK Terminal Block Wiring Video
Send Inquiry NowHow the JINH DK DIN Rail Terminal Blocks Function
Loosen both screws, insert one wire into each side’s opening, and tighten the screws firmly.You have now created a secure, organized, and safe electrical connection between the two wires. The current can flow from one wire, through the internal metal conductor of the terminal block, and out to the second wire.
Send Inquiry Now
High Cost-Effectiveness of JINH DK DIN Rail Terminal Block
DK terminal blocks that do not require installation of protective covers can increase installation efficiency by 20%. Each terminal’s internal conductor remains fully enclosed, significantly enhancing safety and reducing the risk of electric shock due to improper use. As a manufacturer, JINH offers custom protective covers for DK terminal blocks, such as transparent covers or covers in different colors.
Application Scenario
Industrial Control Panels (PLC Panels)
Motor Control Centers (MCCs)
Automation Machinery
Power Distribution Systems
Renewable Energy Systems (Solar, Wind)
Railway Systems
Benefits of using DK terminal blocks
Safety
The PA66 plastic housing prevents accidental contact with live parts.
Organization
Wires are neatly terminated in a logical order, making troubleshooting easy.
Reliability
The JINH DK terminal block clamping mechanisms ensure a stable, low-resistance connection that won't loosen over time (if properly installed).
Flexibility
The modular design means the panel can be easily modified or expanded in the future.
Cost-Effectiveness
As a manufacturer, JINH provides this reliable DK standard functionality at a competitive price point.
Resource
DK Terminal Block FAQ
Yes.We made a lot of customized products for our customer before. And we made many moulds for our customers already.
About customized packing,we can put your Logo or other info on the packing.It is no problem.
1.Access the Clamp: You insert an appropriate screwdriver into the screw head on the front of the terminal block.
2.Loosen: Turn the screw counter-clockwise to open the clamping plate and create a space for the wire.
3.Insert Wire: Insert the prepared (stripped) solid or stranded wire (often with a ferrule) into the wire entry hole.
4.Tighten: Turn the screw clockwise. This action drives the screw, which pushes a metal clamping plate down onto the conductor.
The wire is pressed firmly against the current-carrying metal bar (usually made of copper alloy) inside the block, creating a low-resistance, secure electrical connection. The force of the screw also provides excellent vibration resistance.
We have a guarantee of one year.
