PT Push-in Terminal Block With Extremely High Wiring Efficiency
The spring-loaded push-in terminal block and direct-insert connection technology are several times faster than traditional screw-based methods, significantly reducing wiring time and lowering labor costs.
Quick Quote

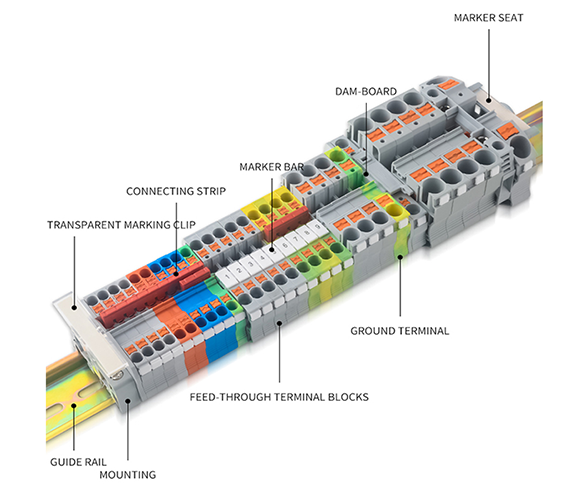

JINH PT Push-in Terminal Block
Explore the features and benefits of JINH PT Terminal Blocks to discover how our PT terminal blocks meet your wiring needs.
- 1.Housing Material：PA66,Flame Retardant Rating UL94 V0
- 2.Conductive materials：Tin-plated copper,Resistant to corrosion and oxidation, extending service life
- 3.Internal Structure:Spring Clamping Technology
- 4.No professional skills required—easy to get started.
- 5.High-quality terminal blocks mean fewer failures and less downtime.
- 6.Ideal for confined spaces and environments where tools are difficult to use effectively.
PT Terminal Block Wiring Video
Send Inquiry NowHow the JINH PT Terminal Blocks Function
The JINH PT Push-in Terminal Blocks automatically clamp wires using the elastic force of built-in springs, eliminating the need for external tools. Reliable connections are achieved through the simple “insert-clamp” operation.
Send Inquiry Now
High Efficiency of JINH PT Terminal Block
The wiring design of the PT Terminal Block eliminates the need for screw tightening, reducing the wiring time for each terminal to just a few seconds. This makes it particularly suitable for scenarios involving numerous wires and dense wiring configurations.
Application Scenario
Security Surveillance System
Industrial control equipment
Home Appliances and Smart Home Devices Production Line
Outdoor Lighting Circuit
Instrumentation and medical equipment
Deep interior of distribution boxes and densely wired areas within equipment
Benefits of using PT terminal blocks
Tool-free wiring
Even workers without specialized skills can easily get started, lowering the barrier to manual operation and reducing error rates.
Spatial Advantage
JINH PT terminal blocks structure design is more compact, accommodating more terminals than traditional screw terminal blocks within the same installation area, making it suitable for miniaturized equipment.
Quick setup
Saves time on screwing in bolts—simply plug wires directly into the PT Terminal Block to complete wiring, boosting wiring efficiency by at least 70%.
Highly reliable
JINH PT terminal blocks featuring a spring-loaded clamping mechanism, it delivers consistent clamping force to prevent poor contact caused by screw loosening, offering superior vibration resistance.
Electrical Safety
After wiring, the conductors are securely clamped to prevent loosening. JINH PT terminal blocks feature flame-retardant housing material. Products undergo factory safety inspections to minimize electrical hazards.
Resource
PT Terminal Block FAQ
For rigid wires or pre-terminated connectors, they can be directly inserted into the wiring ports of the Push-in terminal block. For stranded wires, use a screwdriver to press the orange button to open the wiring port, insert the wire, and then release the button.
First, ensure the wire gauge matches the terminal block. Strip the wire to an appropriate length. Apply moderate force when inserting the wire to ensure it fully enters and is securely held by the spring-loaded clamping mechanism. After each wire insertion, verify the connection is firm. If necessary, use a multimeter to test the continuity of the connection.
Different models of push-in terminal blocks have varying operating temperature ranges, typically spanning from approximately -40°C to +85°C. For use in higher-temperature environments, select models with high-temperature resistance and ensure adequate heat dissipation.
The push-in terminal block has a limited number of insertion cycles. Frequent insertion and removal may affect its performance and service life.
