The CNP720-2T IP68 Waterproof Junction Box is an upgraded version of our CNP723 waterproof junction box. It features a more compact design than the CNP723 series, making it ideal for confined spaces. With IP68-rated waterproof and dustproof protection, it ensures safer and more reliable wiring.
Features
● Wiring Hole: Double Hole
● Rated Current: 16-20A
● Temperature range: -30℃~+105℃
● Protection Rate: IP68
Material
● Material of shell: Polyamide Pa66
● Waterproof O-Ring: Silicon
● Self-tapping screws: #45 steel
Application
The CNP720-2P IP68 Waterproof Junction Box are ideal for marine systems, providing waterproof connections for boat lighting and control systems, as well as outdoor lighting, ensuring reliable performance in garden lights, street lighting, and floodlights. They also protect electrical connections in industrial machinery like control panels and heavy equipment.Perfect for harsh environments, these IP68 Waterproof Junction Box deliver durability and reliability across diverse applications.
Product Approvals

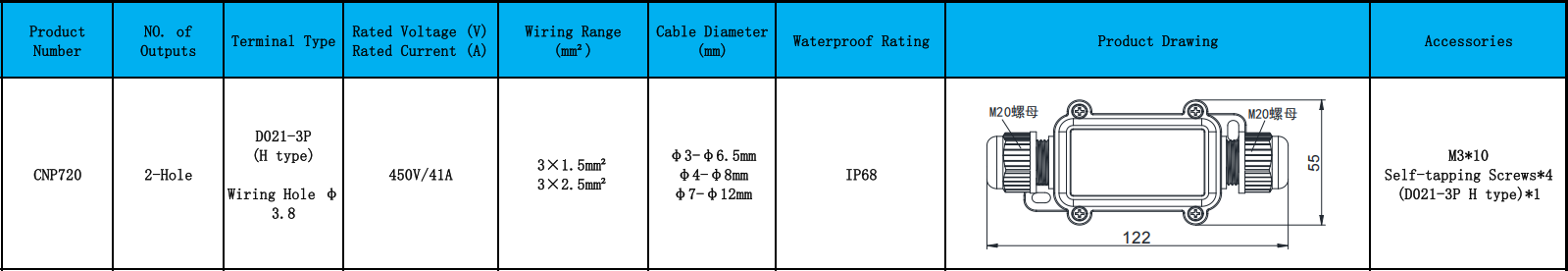

Specifications
| Product name | Product type | Cable gland OD(mm) | External dimension A x B x C |
Inside dimension A x B x C |
| CNP720-single |  |
φ6-φ11 | 105*55*41.3mm | 60*35*34mm |
| CNP720-double |  |
φ6-φ11 | 122*55*41.3mm | 60*35*34mm |
Download
