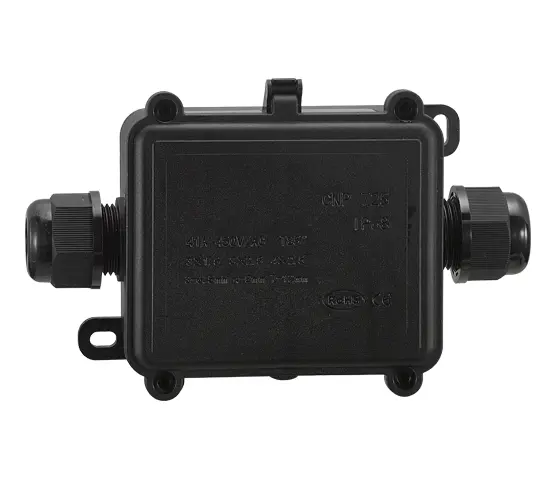

Waterproof Junction Box
The CNP73 series allows customization of inlets and outlets for various connectors, while the CNP31 series is a mini gel box designed for submersible installation (IP68). Our product offers convenience and superior performance for your electrical connection needs.
Consult Your JINH Expert
High Safety
High Quality
Free Samples
Downloads
Downloads The Brochures
You can download the brochures for Waterproof Junction Box by clicking on the links below. These brochures provide detailed information about our quick-connectors and their specifications. Feel free to reach out to us if you have any further questions or inquiries.
CNP Water-proof Junction Box Series Technical parameters
| Product name | Inside dimension AxBxC (mm) |
Outside dimension AxBxC (mm) |
Cable gland OD(mm) |
| CNP723-2T | 73x46x34 | 133x66x41.3 | 3-6.5/4-8/7-12 |
| CNP723-3T | 73x46x34 | 133x81x41.3 | 3-6.5/4-8/7-12 |
| CNP723-4T-A | 73x46x34 | 133x81x41.3 | 3-6.5/4-8/7-12 |
| CNP723-4T-B | 73x46x34 | 103x96x41.3 | 3-6.5/4-8/7-12 |
| CNP723-5T | 73x46x34 | 117x96x41.3 | 3-6.5/4-8/7-12 |
| CNP723-6T | 73x46x34 | 133x96x41.3 | 3-6.5/4-8/7-12 |
| CNP723(Custom) | 73x46x34 | 103x66x41.3 | 3-6.5/4-8/7-12 |
| CNP725-2T | 78x63x34 | 138x83x41.3 | 3-6.5/4-8/7-12 |
| CNP725-3T | 78x63x34 | 138x98x41.3 | 3-6.5/4-8/7-12 |
| CNP725-4T-A | 78x63x34 | 138x98x41.3 | 3-6.5/4-8/7-12 |
| CNP725-4T-B | 78x63x34 | 108x111x41.3 | 3-6.5/4-8/7-12 |
| CNP725-6T | 78x63x34 | 138x111x41.3 | 3-6.5/4-8/7-12 |
| CNP725-6T | 78x63x34 | 138x111x41.3 | 3-6.5/4-8/7-12 |
| CNP725(Custom) | 78x63x34 | 108x83x41.3 | 3-6.5/4-8/7-12 |
Junction Box Series Technical parameters
| Dimensions(mm) | ||
| Length | Width | Height |
| 50 | 50 | / |
| 80 | 50 | / |
| 80 | 80 | 50 |
| 85 | 85 | 50 |
| 100 | 100 | 70 |
| 150 | 110 | 70 |
| 150 | 150 | 70 |
| 200 | 100 | 70 |
| 200 | 150 | 80 |
| 200 | 200 | 80 |
| 255 | 200 | 80 |
| 300 | 250 | 120 |
| 400 | 350 | 120 |
AG Type Junction Box Series Technical parameters
| Dimensions(mm) | ||
| Length | Width | Height |
| 98 | 65 | 55 |
| 100 | 100 | 75 |
| 100 | 100 | 100 |
| 110 | 80 | 50 |
| 110 | 80 | 85 |
| 125 | 125 | 75 |
| 125 | 125 | 100 |
| 130 | 80 | 85 |
| 170 | 140 | 100 |
| 175 | 125 | 75 |
| 175 | 125 | 100 |
| 180 | 80 | 70 |
| 200 | 150 | 100 |
| 200 | 150 | 130 |
| 200 | 200 | 00 |
| 200 | 200 | 130 |
| 250 | 80 | 85 |
| 250 | 150 | 100 |
| 250 | 150 | 130 |
| 280 | 190 | 130 |
