DIN Rail Terminal Block is a core component in industrial electrical systems used to achieve safe and reliable electrical connections.

The DIN Rail Terminal Block ensures reliable connections between wires and equipment, simplifies complex wiring, and improves system integration. Its modular design allows for the addition or removal of terminals on the DIN rail, making it more adaptable to equipment that frequently requires expansion or modification.

Next, we will select the right DIN rail terminal block for you based on market demand, product variety, wiring capabilities, material installation, and how to improve customer satisfaction.

DIN rail terminal block market demand

The global DIN rail terminal market is dominated by European and American giants in terms of technology and the high-end market, while Chinese manufacturers have captured the largest market share globally thanks to their cost-effectiveness and rapid response, and are continuing to break into the mid-to-high-end market.

Choose the Right DIN rail Terminal Block Type

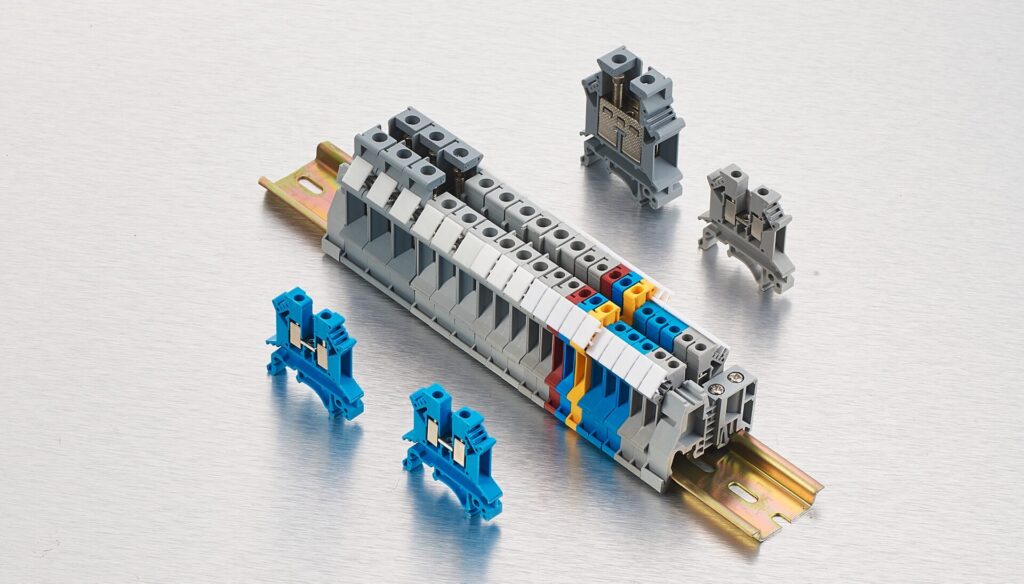

Type 1: Screw DIN Rail Terminal Block

Screw-type DIN rail terminal blocks use screws to clamp wires, which is the most traditional and common wiring method and is widely used in industrial control and power distribution systems.

Screw DIN rail terminal blocks securely fasten wires using screws. They are available in various wire diameters, ranging from 1.5mm² to 150mm². Commonly used in industrial control cabinets, distribution boxes, and mechanical equipment wiring, they enjoy high market demand and stable sales. Screw-type terminal blocks have high user acceptance and are easily replaceable, making them suitable for large-volume inventory sales.

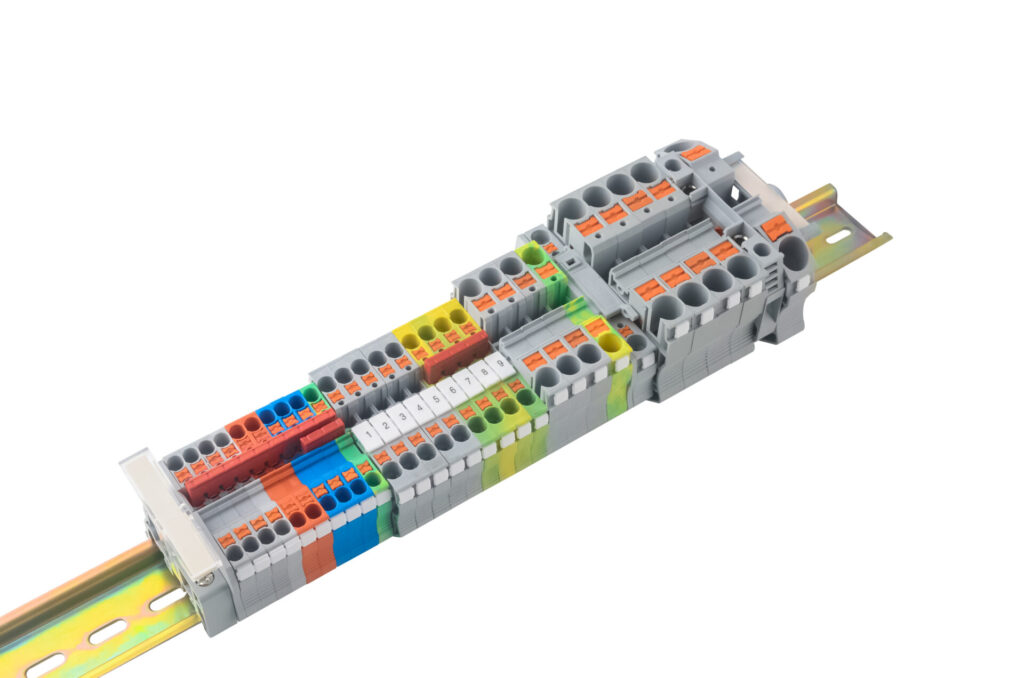

Type 2: Spring clamp DIN Rail Terminal Block

Spring clamp DIN rail terminal blocks clamp wires with spring clips, eliminating the need for screws and making wiring faster.

The spring-loaded clamping design of the spring DIN rail terminal block makes wiring easier and faster, saving engineers 70% of their wiring time. Moreover, it not only saves time, but also offers stronger vibration resistance than screw-type terminals, maintaining stable contact pressure over a long period and preventing vibration from affecting the contact between the wire and the terminal. The spring DIN rail terminal block is suitable for automated equipment, equipment in vibrating environments, and projects requiring rapid installation. Due to the accelerating growth in demand in the high-end automation market, products with significant technological advantages like the spring DIN rail terminal block are easier to promote and sell.

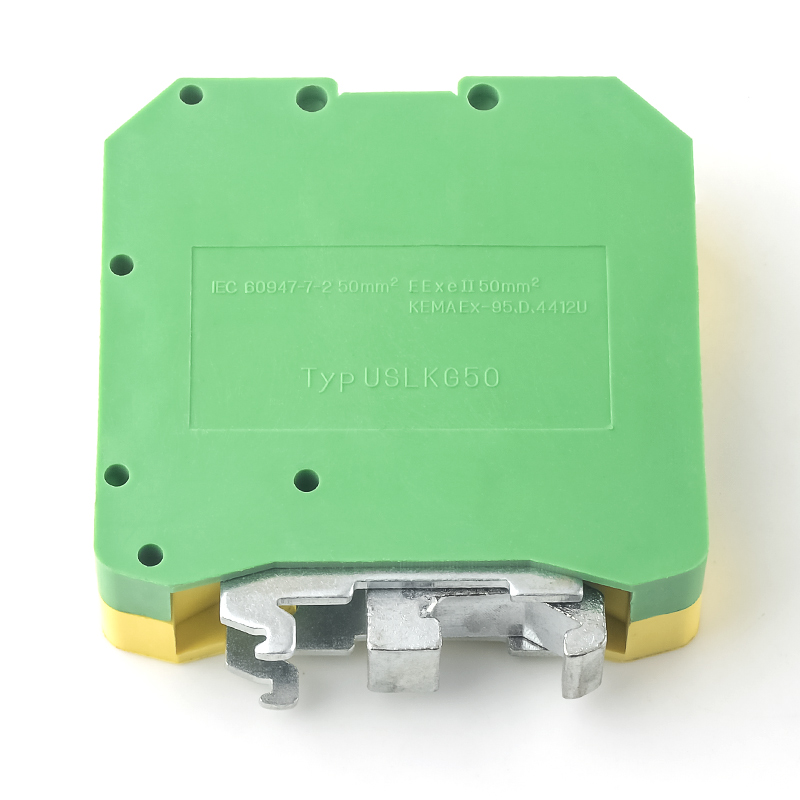

Type 3: Grounding DIN Rail Terminal Block

Grounding DIN rail terminal blocks are used for safety grounding in electrical systems and are typically directly connected to the DIN rail.

Grounding DIN rail terminal blocks provide a reliable grounding connection for the entire terminal block. They are typically yellow-green for easy identification. Because grounding DIN rail terminal blocks meet safety and electrical standards, they are required in almost all projects for safety reasons. They are generally sold with standard terminals and are considered an essential product.

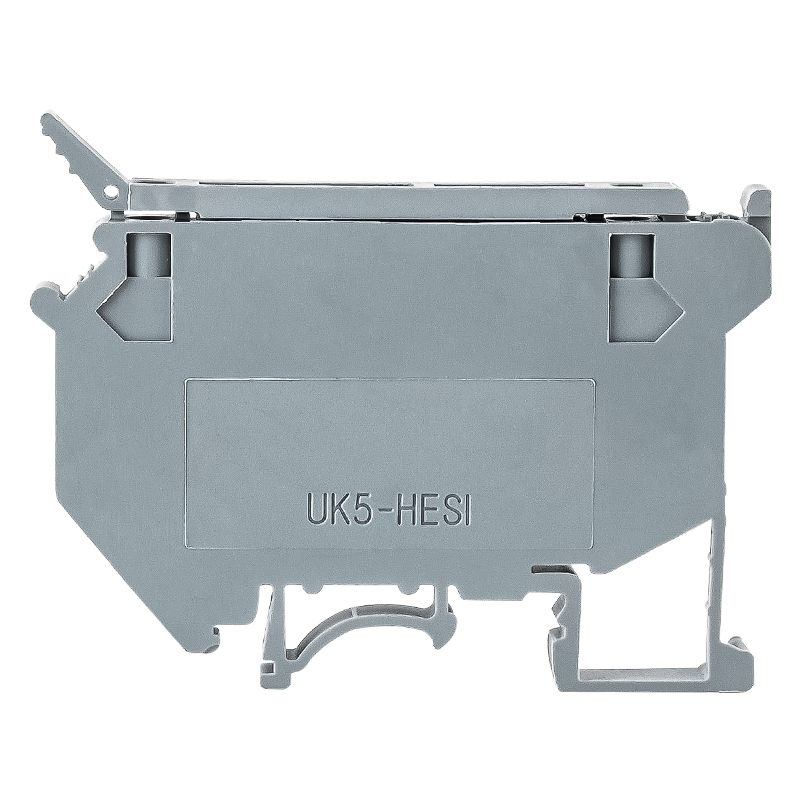

Type 4: Fuse DIN Rail Terminal Block

The fuse is built into the DIN rail terminal and is used for circuit overload and short circuit protection.

This fused terminal block integrates wiring and protection functions, and its internal fuse is very easy to replace. Its use can reduce the risk of equipment damage. It is generally used for control circuit protection, low-voltage circuit systems, and automated control systems. If safety is a primary concern, this terminal block is suitable for you.

Consider Wire Size and Connection Capacity

Because different types of terminal blocks use different current, voltage, and wire cross-sectional areas, please carefully read the catalog for each product to better select the product you need.
