Introduction: Why Waterproof Connectors Are the Lifeline of Industrial Equipment

In industrial environments, equipment failure is rarely caused by the main components themselves. More often, it is the small parts—the connections—that fail first. When moisture, dust, or vibration compromises a connection, the result is unexpected downtime, costly repairs, and lost productivity.

For industries ranging from food processing to solar energy, the waterproof connector has become a critical component for ensuring long-term reliability. Among all ingress protection ratings, IP68 waterproof connector stands out as the standard for applications requiring sustained immersion and complete dust protection.

This guide covers everything you need to know: from understanding IP ratings and selecting the right waterproof electrical connector for your application, to installation best practices and sourcing strategies. Whether you are an engineer specifying components, a procurement manager evaluating suppliers, or an importer looking for reliable industrial waterproof connector solutions, this guide provides the technical depth and practical insights you need.

1. Understanding Waterproof Connector Ratings: What Does IP68 Really Mean?

1.1 IP Code Breakdown: From Dust to Immersion

The Ingress Protection (IP) rating system, defined by IEC 60529, provides a standardized way to measure a connector’s resistance to solids and liquids. The first digit represents protection against solid particles (dust), while the second digit represents protection against liquids (water).

1.2 Beyond IP Rating: Key Technical Parameters You Must Check

While IP rating is critical, selecting the right waterproof cable connector requires evaluating several additional parameters:

Rated Voltage & Current
Determine whether your application requires power transmission (higher voltage/current) or signal transmission (lower voltage/current). For industrial automation and energy storage systems, connectors rated at 600V / 50A or higher are often necessary.

Wire Gauge Range (AWG)
Ensure the connector accommodates your field wiring requirements. A well-designed waterproof terminal block should accept a range of wire sizes, from fine-stranded signal wires to heavy-gauge power cables.

Temperature Range
Industrial environments can be extreme. Look for connectors rated from -40°C to +85°C or wider to handle freezing outdoor conditions or high-temperature manufacturing facilities.

Corrosion Resistance & Salt Spray Testing
For coastal installations, chemical plants, or outdoor equipment exposed to road salts, corrosion resistance is paramount. High-quality waterproof electrical connectors should pass salt spray tests (e.g., 500 hours) and feature corrosion-resistant plating such as gold or tin on internal terminals.

Terminal Material & Plating
As a manufacturer with deep expertise in terminal blocks, we emphasize that the internal terminal quality determines long-term reliability. Gold-plated terminals offer superior corrosion resistance and low contact resistance for signal applications. Tin-plated or silver-plated terminals provide excellent conductivity for power applications.

2. Types of Waterproof Connectors: Which One Fits Your Application?

2.1 By Form Factor: Circular vs. Rectangular

Circular Connectors
Circular connectors are the industry standard for sensors, actuators, and fieldbus systems in industrial automation. Their threaded coupling mechanism provides excellent vibration resistance, making them ideal for robotics and machinery.

Rectangular Connectors
Rectangular connectors offer higher contact density and better space utilization for control panels, power distribution units, and HVAC systems. Their modular design allows for mixed power and signal contacts within a single housing.

2.2 By Termination Method: Screw Terminal vs. Crimp vs. Spring Clamp

The termination method directly impacts installation time, tool requirements, and field serviceability.

2.3 By Application: Panel-Mount vs. In-Line vs. Overmolded

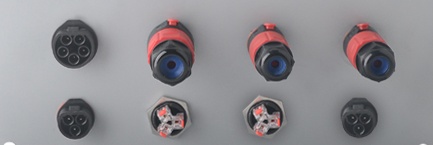

Panel-Mount (Chassis-Mount) Connectors
Designed to be installed on equipment enclosures, control panels, or junction boxes. Panel-mount waterproof connectors provide a sealed pass-through for wiring, protecting internal electronics from moisture while allowing external connections.

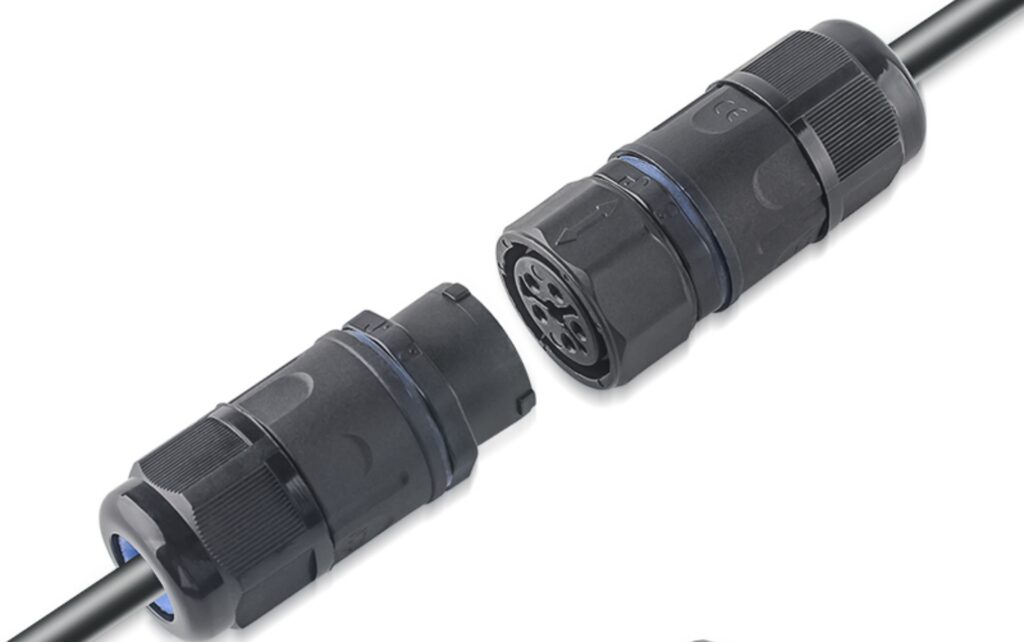

In-Line (Cable-to-Cable) Connectors
Used for extending cable runs or creating break points in wiring systems. In-line connectors are commonly found in LED lighting systems, solar arrays, and field-deployed sensors.

3. Top Industries & Applications for IP68 Waterproof Connectors

3.1 Industrial Automation & Control Panels

Manufacturing facilities are harsh environments. Food processing plants require daily high-pressure washdowns. Automotive assembly lines expose equipment to oils, coolants, and vibration. In these settings, waterproof electrical connectors must withstand both moisture and mechanical stress.

3.2 New Energy: Solar, EV Charging & Energy Storage

The renewable energy sector demands connectors that perform reliably outdoors for decades. Solar installations face UV exposure, temperature extremes, and rain. EV charging stations are subject to weather, vandalism, and high-current demands. Energy storage systems require secure connections for battery management systems (BMS).

3.3 Outdoor Lighting & LED Displays

Smart city infrastructure—including smart poles, tunnel lighting, and large-scale LED billboards—relies on IP68 waterproof connectors to prevent failure in rain, snow, and high-humidity conditions. For landscape lighting installed in ponds or fountains, sustained immersion capability is non-negotiable.

3.4 Heavy Machinery & Transportation

Construction equipment, agricultural machinery, and rail systems operate in extreme conditions: mud, salt spray, vibration, and wide temperature swings. A failed connection can strand equipment in the field, leading to costly service calls and downtime.

4. Why Choose JINH as Your Waterproof Connector Supplier?

4.1 Manufacturing Excellence: Built on Terminal Block Expertise

With years of experience manufacturing terminal blocks and electrical interconnection products, JINH brings deep technical expertise to every waterproof connector we produce. Our understanding of contact physics, current-carrying capacity, and corrosion resistance ensures that the internal terminals—the heart of any connector—deliver consistent, reliable performance over thousands of mating cycles and years of service.

4.2 Full Certifications for Global Markets

Our IP68 connector series is fully certified for international markets:

All certification documentation is available upon request, simplifying your import and compliance process.

4.3 Flexible Customization & Low MOQ

We understand that industrial buyers and importers have diverse requirements:

OEM Services: Laser logo printing, custom packaging, private labeling

Pre-Assembled Cable Harnesses: Reduce field installation time with factory-terminated assemblies

Custom :Custom production is available based on provided drawings or samples.

Low MOQ: No minimum order quantity for sample requests; flexible MOQ for production orders

4.4 Fast Sample Delivery & Hot Stock Inventory

For engineers and procurement professionals, speed matters during the development and qualification phase:

Samples shipped within 24 hours for in-stock items

Hot-selling models maintained in inventory to support rapid production ramp-up
