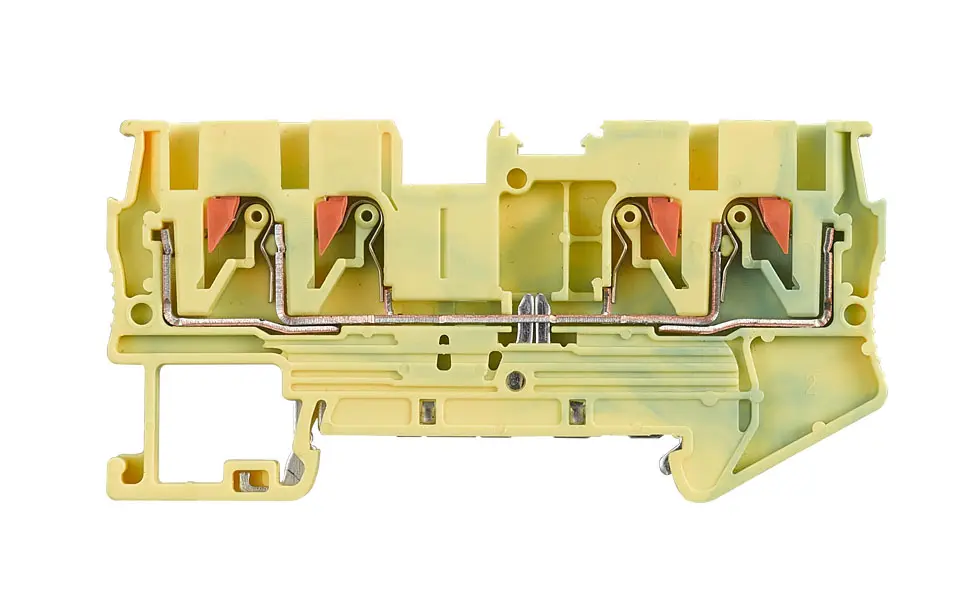

PT-2.5QTPE Push-in Terminal Block

PT-2.5QTPE grounding terminal is a direct insertion spring terminal with a yellow-green single-layer design, which can be connected without the use of any tools, improving installation efficiency.

The two in two out wiring method can save space and improve efficiency. This series of products offers multiple specifications and models to meet the needs of different cross-sections and voltage levels.

PT-2.5QTPE Push-in Terminal Block

Features

● Voltage: 800V
● Rated Current: 28A
● Mounting type: TH35/7.5 DIN rail
● Type of connection: Pus-in
● Working Temperature(PP): -50°C~100℃

Material

● Connector Shell: PA
● Conductive Parts: Copper

Application

The PT series is mainly used in industrial automation and control systems, with a plug-in screw terminal design, suitable for applications with medium to large currents and voltages. In addition, the PT series also supports fast connection of large-diameter wires, with excellent durability and reliable connection performance, and meets multiple certification standards.

Product Approvals

4 1

Specifications

Product Code Wire Range
(mm²)
Amp(A) Volt(V) L W H
PT-1.5PE 0.14-1.5 17.5 500 45 3.5 32
PT-2.5PE 0.14-4 28 800 48.5 5.2 36.5
PT-4PE 0.2-6 38 800 56 6.2 36.5
PT-6PE 0.5-10 52 1000 57.7 8.2 43.5
PT-10PE 0.5-16 70 1000 67.7 10.2 50
PT-16PE 0.5-16 76 1000 75.4 12.2 52.6
PT-1.5TWPE 0.14-1.5 17.5 500 54 3.5 32
PT-2.5TWPE 0.14-4 28 800 60.5 5.2 36.5
PT-4TWPE 0.2-6 36 800 66.5 6.2 36.5
PT-6TWPE 0.5-10 52 1000 74.2 8.2 43.5
PT-10TWPE 0.5-16 70 1000 88.9 10.2 50.5
PT-1.5QTPE 0.14-1.5 17.5 500 63.2 3.5 32
PT-2.5QTPE 0.14-4 28 800 72.2 5.2 36.8
PT-4QTPE 0.2-6 38 800 77 6.2 36.5
PT-6QTPE 0.5-10 52 1000 90.5 8.2 43.5
PT-1.5TBPE 0.14-1.5 16 500 65.4 3.5 42.6
PT-2.5TBPE 0.14-4 26 500 68 5.2 47
PT-4TBPE 0.2-4 32 800 68 6.2 47
PT-1.5-3LPE 0.14-1.5 17.5 500 102 5.2 58
