In electrical engineering, connecting wires is a vital part. Traditional methods such as screw connection and welding are effective, but often time-consuming and troublesome.
Today, we are going to introduce push in connectors, which are gradually becoming the new favorite in the field of electrical connection with their unique convenience and efficiency. This article will give you a comprehensive understanding of pushin connectors.

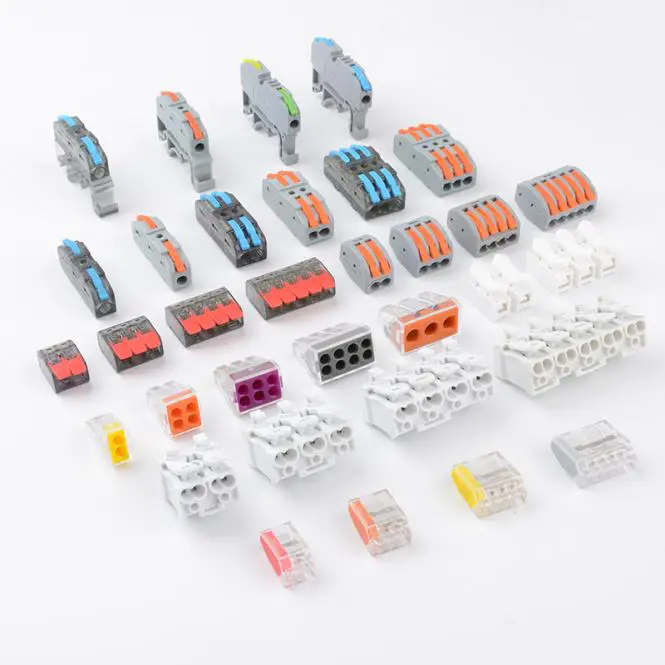

What Is a Push In Connector?
A push in connector is a convenient electrical connection device that allows users to quickly connect wires with a simple push-in operation.
Push in connectors do not require the use of additional equipment such as screwdrivers and welding tools. This greatly simplifies the process of electrical connection, improves work efficiency, and ensures the reliability and safety of the connection.
They are widely used in home, commercial and industrial fields, providing strong support for the rapid connection and efficient operation of electrical equipment.
Working Principle of Push In Connector
The working principle of push in connector is based on its internal spring clamping mechanism. When the wire is inserted into the connector, the spring automatically expands and tightly wraps the surface of the wire to form a stable electrical connection. This design not only ensures the reliability of the connection, but also allows users to easily complete the connection operation without using tools.
Installation of Connectors
Installing push in connector is a simple and quick process.
Here are the general installation steps:
Make sure the wire has been properly stripped to expose the appropriate exposed part. At the same time, choose a suitable push in connector and make sure its model and specifications match the wire.
Align the exposed part of the wire with the insertion port on the connector and push it in gently. During the push-in process, be careful not to use too much force to avoid damaging the connector or wire.
Confirm that the wire has been fully inserted into the connector and check whether the connection is firm and reliable. If the connection is not tight, reinsert it until you hear a “click” or feel obvious resistance.
Benefits of Electrical Basics Push In Wire Connectors Over Traditional Methods
Push in connectors have many advantages over traditional electrical connection methods:
Convenience
The most notable feature of push in connectors is the convenience of their installation process. Users do not need to use additional tools such as screwdrivers and welding machines, and can complete the connection by simply pushing it in.
Reliability
Push in connectors usually use precision mechanical structures and high-quality conductive materials inside to ensure that the wire connection is stable and not easy to loosen or fall off.
At the same time, its good sealing and insulation properties can also effectively prevent electrical failures and safety hazards.
Saving Space
Since push in connectors are compact and take up little space, they can be more flexibly arranged in the layout of electrical equipment.
Easy to Identify and Maintain
When wires need to be replaced or repaired, installers can identify and connect the correct wires through color coding.
There is no need for the installer to disassemble the entire device or some complex disassembly steps during installation.

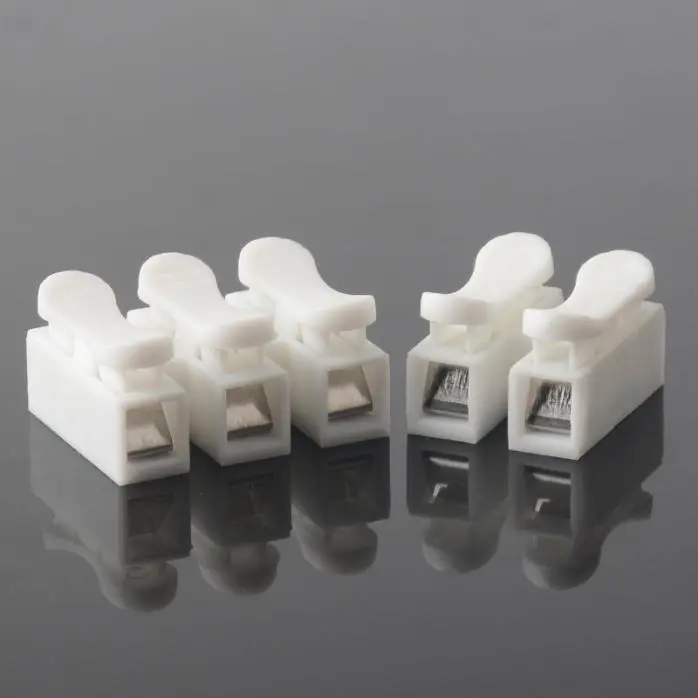

Wide Range of Applications
push in connectors are suitable for various specifications and types of wire connection needs, whether it is a small current connection in a household circuit or a large current connection in an industrial device, you can find a suitable connector model.
Applications Of Push In Connectors
Push in connectors are widely used in many fields due to their convenience and efficiency:
Electrical wiring
Push-in connectors are widely used in electrical wiring applications, such as connecting wires in lighting fixtures, switches, receptacles, and junction boxes.
Automotive industry
Push-in connectors are used in automotive applications for connecting wiring harnesses, sensors, and other electrical components in vehicles.
HVAC systems
Push-in connectors are used in heating, ventilation, and air conditioning (HVAC) systems for connecting wires in thermostats, control panels, and other components.
Home appliances
Push-in connectors are used in home appliances such as refrigerators, washers, dryers, and dishwashers for connecting wires in control panels, motors, and other electrical components.
Industrial automation
Push-in connectors are used in industrial automation applications for connecting sensors, actuators, control panels, and other electrical components in manufacturing and production processes.
LED lighting
Push-in connectors are commonly used in LED lighting applications for connecting wires in LED strips, modules, and fixtures.
Tips for Choosing a Suitable Push In Connector?
When choosing a suitable push-in connector, you can consider the following aspects to ensure that the selected connector meets the application requirements and has high reliability and safety.
Here are some recommended selection points:
Determine the Application Requirements
First, clarify the current and voltage range carried by the wires to be connected to ensure that the rated current and voltage of the selected connector can meet or exceed these requirements.
Consider the environmental conditions in which the connector will work, such as temperature, humidity, vibration, shock, and the presence of corrosive gases. Choose a connector that can work stably under these conditions.
Consider Ease of Use and Maintainability
Choose a connector that is easy to install and remove to reduce installation time and cost. Push-in connectors usually have this advantage, but the ease of operation of the specific product must also be considered.
Consider the maintainability of the connector, including whether special tools are required for maintenance and whether damaged parts are easy to replace.
Check Product Certifications and Test Reports
Check whether the connector has obtained relevant international or domestic certifications, such as UL, CE and RoHS. These certifications indicate that the product meets certain safety and quality standards.
Check the connector’s test report to understand its performance under various conditions. This helps evaluate the reliability and durability of the connector.
Conclusion
Choosing a suitable push in connector requires comprehensive consideration of multiple aspects. JINH Electric has won the trust of the market with its high quality, reliability and multiple international certifications. Its connector design is easy to install and maintain, adaptable to various harsh environments, and provides full technical support and high-quality service. JINH Electric may a good choice for you.
FAQs
1. Are push in connectors safe and reliable?
Yes, the push in connectors use high-quality insulating materials and precise mechanical structures to ensure a stable connection and not easy to loosen, while effectively preventing electric shock and short circuits.
2. How do I open a push in connector?
Most push in connectors have a release button or mechanism that allows you to open the connector and pull out the wires by simply pressing the release button. If there is no release button, it is recommended to rotate and pull out.
3. How to maintain a push in connector?
The maintenance of a push in connector is relatively simple. Just check regularly whether the connection is firm and reliable. If you need to replace or repair the wire, just pull out the connector easily for subsequent operations. It is worth noting that plug-in connectors without release buttons are not recommended for repeated use. Because multiple insertions and removals can cause wear and tear on copper components, leading to unstable connections.
4. Why should push in connectors be transparent?
Easy to inspect and maintain. Transparent connectors allow users to directly observe the connection status of the internal wires, and check whether the wires are firmly connected, loose, broken or corroded without disassembling the connector. This greatly simplifies the maintenance and repair process and improves work efficiency.
Improve safety. Through visual inspection, users can promptly discover potential safety hazards, such as exposed wires, poor contact, and more, so as to take corresponding measures to prevent safety accidents such as short circuits and fires.
Ensure construction quality. During circuit installation, transparent connectors help supervise construction quality and prevent construction workers from using inferior wires or performing irregular connection operations. This helps ensure the stability and reliability of the circuit system.
