Home > What are The Benefits of Using Industrial Plug and Socket?

Industrial plugs and sockets play a vital role in ensuring the safe and efficient operation of equipment and machinery in various industrial environments. Since there are different types and specifications of products to meet different application needs, it is important for companies to understand their key features and considerations when choosing the right industrial plugs and sockets for specific needs.

From voltage ratings to environmental protection levels, this blog will delve into various aspects of industrial plugs and sockets to help you make an informed decision for your industrial application.

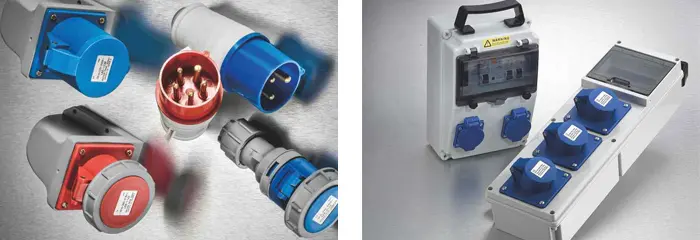

Industrial Plug and Socket

What is An Industrial Plug and Socket?

Industrial plugs and sockets are crucial connectors in industrial systems. They primarily link cables to equipment and connect different equipment, ensuring stable connections that facilitate the smooth flow of power and electrical signals for various operations.

Industrial connectors work in pairs, including plugs and sockets. Plugs have conductive pins, non-conductive casing, and protective shells, while sockets feature an elastic structure and cover ends.

The socket is the interface for plugs connecting to electrical appliances, featuring a protective plastic casing around the wiring and socket ring. The wire is coated in nickel for improved conductivity and corrosion resistance.

The plug consists of a streamlined pin, bracket converter, and connector. The socket has a threaded design for reliable contact, an open sleeve to reduce dust ingress, and a specific layout to ensure steady current flow. It features an enhanced conductivity contact pin and nickel plating to prevent corrosion and improve electrical performance.

An industrial plug is an essential electrical component that connects electronic devices to a power supply. It inserts into a socket to facilitate power transfer for device operation, serving as an interface that allows for efficient connection and disconnection.

Types of Industrial Plugs and Sockets

Industrial plugs and sockets come in various types based on the number of pins, pin shape, rated voltage and frequency, and degree of protection. According to the IEC 60309 standard, some of the types of industrial plugs and sockets include:

3-pin plugs and sockets: For single-phase AC power, one pin for live, one pin for neutral, and one pin for earth.

5-pin plugs and sockets: For three-phase AC power, one pin for each phase, one pin for neutral, and one pin for earth.

Interlocked sockets: These sockets have switches or circuit breakers that prevent the plug from being inserted or removed while power is on. This ensures safety and prevents accidental disconnection.

AC distribution box with sockets: This is a box that contains one or more sockets and a circuit breaker or fuse for each socket. This allows multiple devices to be connected to a single power source with individual protection and control.

Specifications of Industrial Plugs and Sockets

Industrial plugs and sockets are essential for providing power to industrial equipment and machinery. These components are designed to meet high standards for durability, safety, and reliability in demanding industrial environments.

Here are some common specifications for industrial plugs and sockets:

Current rating

Industrial plugs and sockets are available in different current ratings, ranging from 16A to 125A, to support various types of equipment with different power requirements.

Voltage rating

Industrial plugs and sockets are typically rated for voltages from 110V to 600V, ensuring compatibility with a wide range of industrial applications.

Frequency rating

This is the frequency of alternating current (AC) that a plug or socket can handle without affecting contact performance or life. The frequency of industrial plugs and sockets is expressed in Hertz (Hz) and ranges from 50Hz to 400Hz.

IP rating

Industrial plugs and sockets are designed to provide protection against dust, water, and other environmental factors. They are assigned an IP (Ingress Protection) rating to indicate their level of protection. Common IP ratings for industrial plugs and sockets include IP44, IP67, and IP68.

Materials

Industrial plugs and sockets are typically made of durable materials such as thermoplastics, rubber, or metal to ensure they can withstand harsh industrial conditions.

Configurations

Industrial plugs and sockets come in a variety of configurations to meet different power needs. Common configurations include single-phase, three-phase, and multi-pin configurations.

Standards Compliance

Industrial plugs and sockets are designed and manufactured to comply with international standards such as IEC 60309, ensuring their quality, safety, and compatibility with other equipment.

Locking Mechanisms

Industrial plugs and sockets typically have locking mechanisms to ensure secure connections and prevent accidental disconnections, reducing the risk of electrical hazards.

Key Benefits of Industrial Plugs and Sockets

Industrial plugs and sockets are engineered with a scientifically designed structure that sets them apart from standard plugs and sockets. This distinction confers several advantages, making them suitable for a diverse array of industrial applications.

Safer performance in all aspects

Self-sealing

Industrial plugs and sockets work in pairs, ensuring precise compatibility. When inserted, the plug forms a secure seal within the socket, boosting performance and safety.

Overload protection

Industrial connectors are built to interrupt circuits during full load or overload. Some plugs can also deliver real-time data feedback, significantly improving safety for such applications.

Environmental resistance

Industrial plugs and sockets offer greater durability than other options due to their resistance to heat, moisture, and impacts. Their scientific design and strong construction improve performance in challenging conditions.

Long service life

Industrial plugs and sockets are made from higher-grade plastics and metals, leading to a much longer service life than standard options.

Self-cleaning

Industrial sockets feature self-cleaning contacts that remove dirt from surfaces, ensuring dependable performance in dusty conditions.

Safety grille

Industrial sockets, unlike standard ones, include advanced safety features to prevent accidental connections. They have a safety grille that activates when a plug is removed, protecting live contacts from exposure. The grille opens only with compatible plugs, reducing the risk of dirt buildup and unintentional contact.

Easy to use

The plug is inserted into the socket and easily pulled out, which makes them easy to use and minimizes the wear of the contacts.

Wide application

Industrial plugs and sockets offer excellent connection performance and are widely used in sectors like power generation, electronic instrumentation, mobile communications, construction, refrigeration, measurement, water supply, and wastewater treatment.

Applications of Industrial Plugs and Sockets

Industrial plugs and sockets are essential components for safe and reliable electrical connections in a variety of industries.

Here are some common applications for industrial plugs and sockets:

Manufacturing

Industrial plugs and sockets are widely used in manufacturing facilities to power machinery and equipment. They provide safe and efficient electrical connections, which are essential to keep production lines running smoothly.

Learn More

Mechanical Engineering
Building Technology

Construction

On construction sites, industrial plugs and sockets are used to power tools and equipment. They are designed to withstand the harsh conditions of construction sites and ensure a safe working environment for workers.

Learn More

Mining

Mining operations require heavy-duty electrical connections that can withstand harsh conditions. Industrial plugs and sockets are used in mining equipment to power machines and lighting systems in underground mines.

Mining
Oil and Gas Industry

Oil and Gas Industry

Industrial plugs and sockets are essential in the oil and gas industry to power drilling equipment, pumps, compressors, and other machinery. They are designed to withstand hazardous environments and ensure reliable power distribution.

Warehousing and Logistics

Industrial plugs and sockets are used in warehouses and logistics facilities to power conveyor systems, forklifts, and other equipment. They provide a safe and efficient way to connect electrical equipment and ensure smooth operation.

Warehousing and Logistics
Food Processing

Food Processing

Industrial plugs and sockets are used in food processing plants to power machinery such as mixers, conveyors and refrigeration units. They are designed to meet strict hygiene standards and ensure safe electrical connections in food production facilities.

Renewable Energy

Industrial plugs and sockets are used in renewable energy facilities such as solar and wind farms to connect inverters, distribution systems and monitoring equipment. They play a vital role in ensuring that renewable energy systems operate efficiently.

Learn More

Power Energy

Conclusion

Electrical plugs and sockets easily connect appliances and gadgets to a power source. Due to their scalability, safety, and versatility, they provide unparalleled ease and effectiveness in the daily lives of numerous consumers. Industrial plug and socket systems are essential to ensure safety, efficiency, and reliability in industrial environments.

Engineered with unmatched precision and craftsmanship, JINH Electric plugs and sockets provide unmatched performance for a wide range of home and commercial applications. Our electrical sockets and plugs prioritize user safety with rugged designs and advanced safety features without sacrificing quality or durability. Get in touch today to learn more and get your quote
