UK3N Universal Terminal Block

JHUK series combined terminal row adopts frame type screw connection structure. The design complies with IEC60947-1, GB14048 standards, which is widely used in the circuit of AC 50Hz(60Hz), rated voltage 660V, DC 40V and below, rated sectional are a 0.75~150mm² connection conductor, it also is suitable for connecting the circle copper conductor of tube terminal that is not specially processed or pressure welding.

Small volume, complete set of specifications, big connected conductor sectional area and good electrical conductivity, the one that is below50mm²adopts copper press line frame and copper fasten screw; and the one that is above 50mm²adopts copper press line frame and steel screw and copper skirt plate. It has a big tighten moment and self-locking function.

Features

● Voltage: 690V
● Rated Current: 32A
● Mounting type: TH35/7.5 DIN rail
● Type of connection: Screw connection
● Working Temperature(PP): -50°C~100℃

Material

● Connector Shell: PA
● Conductive Parts: Copper

Application

The JHUK series combined terminal row, compliant with IEC60947-1 and GB14048 standards, offers a compact and versatile solution for secure electrical connections in industrial control panels, power distribution systems, and renewable energy applications.

Product Approvals

4 1

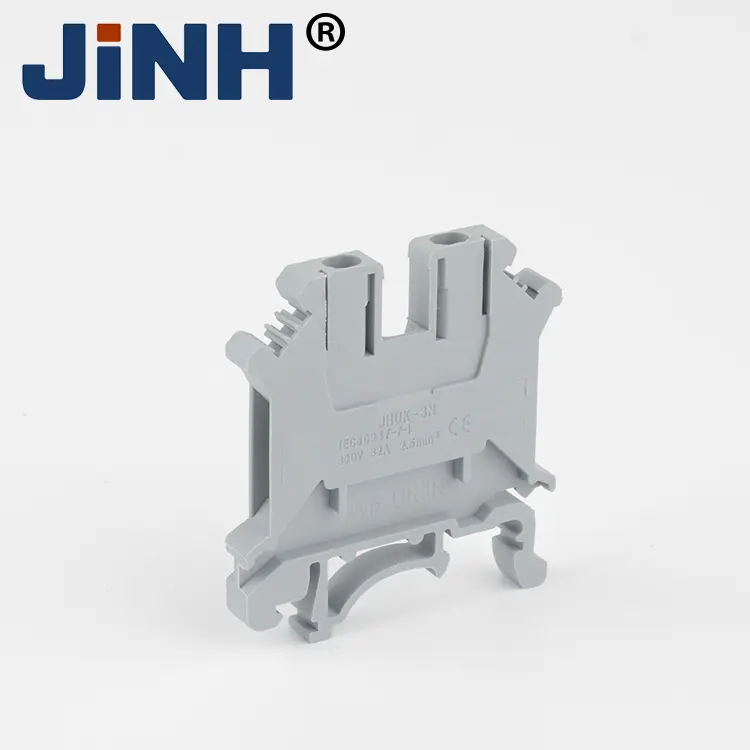

Structure diagram of UK3N Universal Terminal Block1
Structure diagram of UK3N Universal Terminal Block2

Specifications

Product Code Mm² Amp Volt(V) L W H
Rigidity wire Flexible wire
UK1.5N 0.2-4 0.2-1.5 32A 690V 42.5 5.7 42
UK2.5B 0.2-4 0.2-2.5 32A 690V 42.5 6.2 41
UK3N 0.2-4 0.2-25 32A 800V 42.5 5.2 46
UK5N 0.2-6 0.2-4 41A 800V 42.5 6.2 46
UK6N 0.2-10 0.2-6 57A 800V 42.5 8.2 46
UK10N 0.5-16 0.5-10 76A 800V 42.5 10.2 46
UK16N 2.5-25 4-16 101A 800V 42.5 12.2 53
UK25N 2.5-35 4-25 100A 800V 42.5 25 46
UK35N 10-35 10-35 125A 800V 56 15.3 51
UK50N 16-50 25-50 150A 1000V 77.5 20 78
UK70N 25-70 34-70 192A 1000V 82 22.5 79.5
UK95N 25-95 35-95 232A 1000V 89 25.2 90.5
UK150N 35-150 50-150 309A 1000V 106 31 112
2UIK35N 10-35 0.2-6 125A 800V 51 15.2 62
