CNP-25T Outdoor Waterproof Connector

The CNP-25T Outdoor Waterproof Connector is a durable and reliable solution for outdoor cable connections. With a voltage range of 250-450V AC, a rated current of 16A, and a connection capacity of 0.5-2.5mm², this connector is built to withstand harsh weather conditions.

The IP68 protection rate ensures water and dust resistance, making it perfect for outdoor use. Made with Polyamide PA66 shell and copper conductive parts, this connector provides a secure and stable connection for various applications. Whether you’re setting up outdoor lighting or installing security cameras, the CNP-25T connector is the ideal choice for all your outdoor waterproof needs.

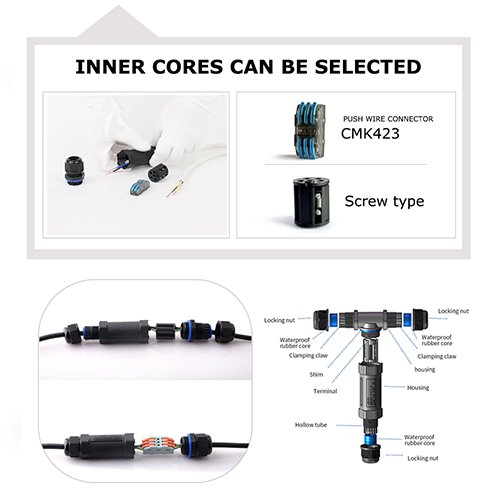

CNP-25T Waterproof Connector inner cores can be selected

Features

● Voltage: 250-450V AC
● Rated Current: 16A
● Connection Capacity: 0.5-2.5mm²
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Connector Shell: Polyaide PA66
● Conductive Parts: Copper

Product Approvals

Application

The CNP-25T Outdoor Waterproof Connector is an indispensable tool for applications requiring secure electrical connections in outdoor environments.

In pool and spa installations, this connector ensures reliable connectivity between pumps, heaters, and control systems, even when fully submerged. Its waterproof design prevents moisture ingress, protecting against corrosion and electrical malfunctions.

Additionally, the CNP-25T connector is suitable for use in outdoor irrigation systems, where it connects water pipes to electrical pumps and valves, enabling precise control over water flow and distribution. Whether in residential or commercial settings, this connector ensures reliable and dependable electrical connections in outdoor environments.

Details
Contact Us

Details

Specifications

Product Code	Connector type	No.of circuits	Volt(V)	Ampere(A)	Connection wire mm	Into the scope of line
CNP25-3P		3P	250-450V	16A	0.5→2.5	Ф6→Ф11mm
CNP25-4P		4P
CNP25-5P		5P
CNP25T-3P		3P
CNP25T-4P		4P
CNP25T-5P		5P
CNP25Y-3P		3P
CNP25Y-4P		4P
CNP25Y-5P		5P
