Quick Splice Connector
Quick-connect wires that do not require wire stripping when creating branches.
Quick Quote

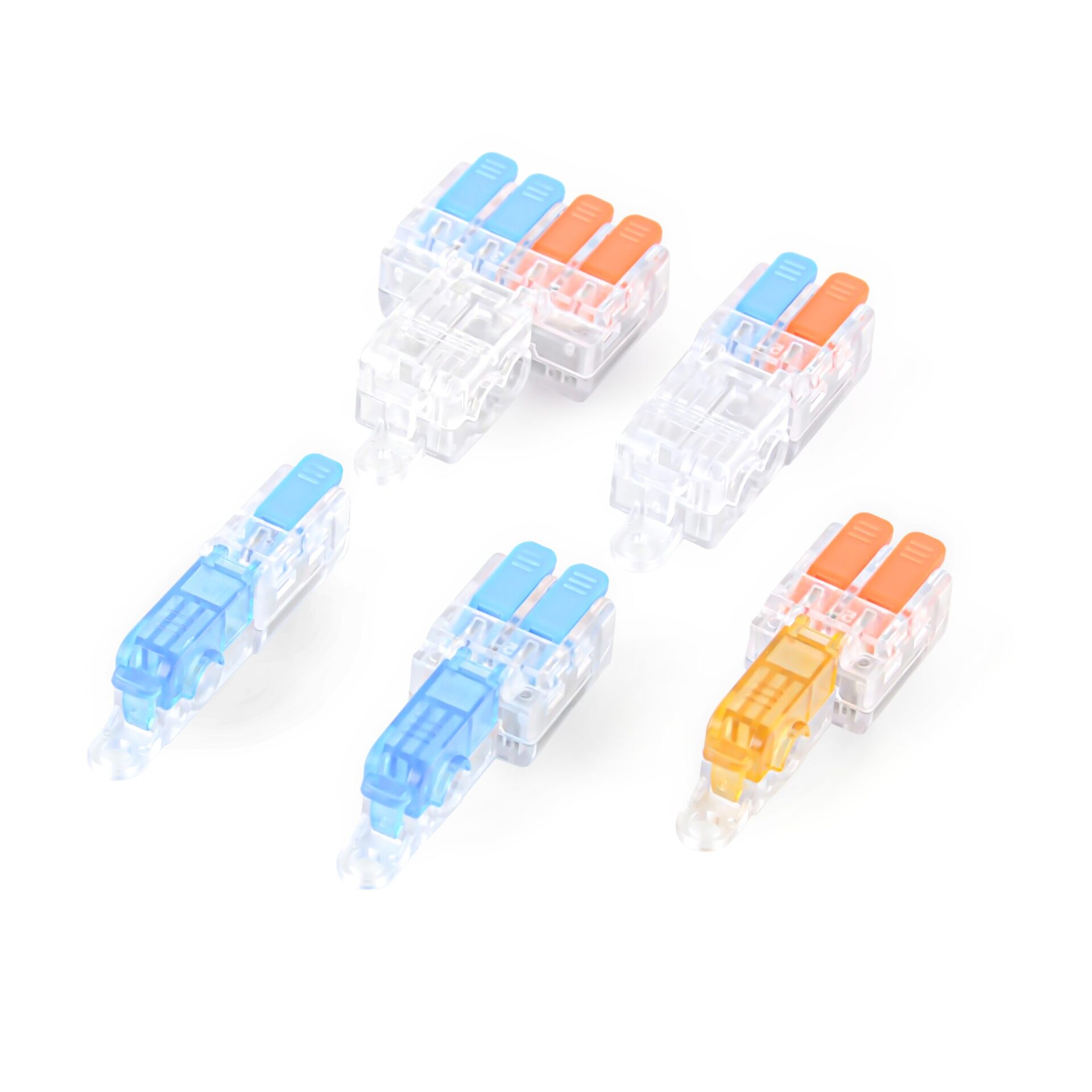

JINH Quick Splice Connector
Explore the features and structure of JINH Quick Splice Connector to discover how our quick splice connector meet your wiring needs.
- 1.-20℃ to 85℃
- 2.AISI 301 stainless steel
- 3.strip length:10mm/0.39inch
- 4.Connection capacity:0.08-4mm²
- 5.Material of connectors shell: Transparent polycarbonate
- 6.Material of actuating levers: Polyamide pom
- 7.Material of conductive parts: Thinned copper
Quick Splice Connector: Using Video
Send Inquiry NowWhat is Quick Splice Connector
The JINH Quick Splice Connector is a wire connector that allows you to quickly and easily connect branch wires to existing circuits. Using Insulation Displacement technology, the Quick Splice Connector allows you to directly connect existing wires to the branch in parallel without stripping the wire.
Send Inquiry Now
High Convenience of JINH Quick Splice Connector

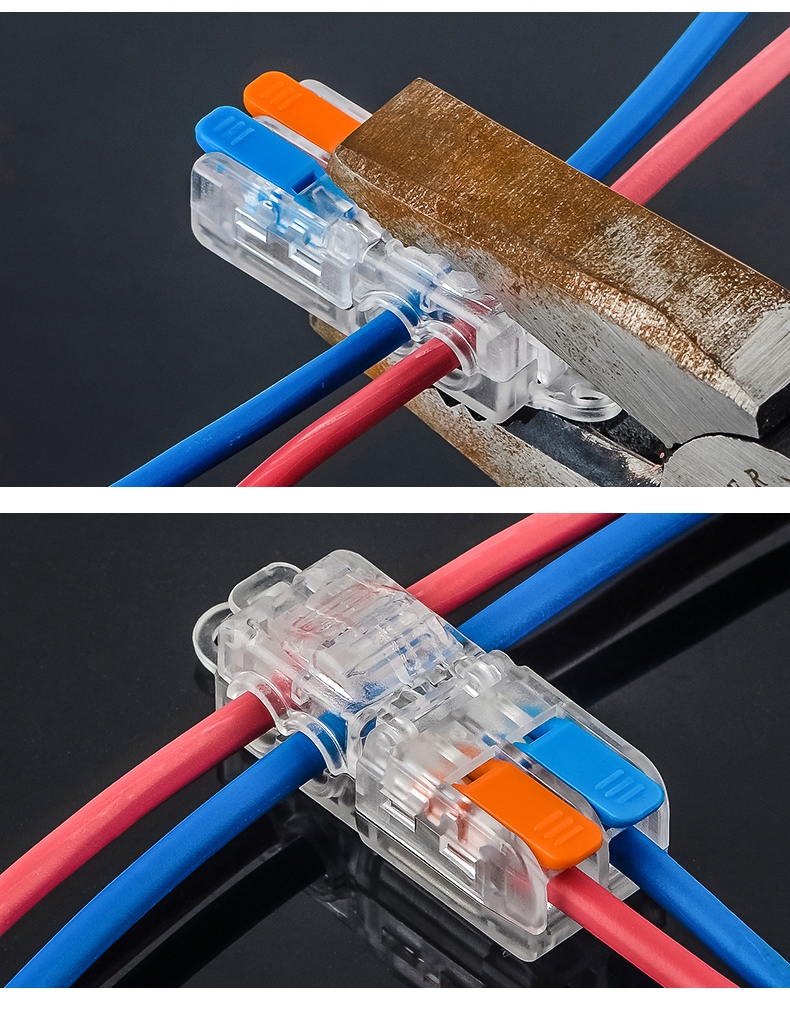

The Quick Splice Connector is incredibly easy to use. Simply insert the existing wire into one end, close the insulating cap, and tighten it with standard pliers. Then, insert the branch wire you want to connect into the lever connection hole on the other end for a quick and easy connection. The Quick Splice Connector makes parallel wiring connections even more convenient and faster, allowing you to connect wires without disassembling existing connections.
Application Scenario
Home Electrical Installations
Automotive Electrical Systems
Electrical Repairs & Upgrades
Low Voltage Control Circuits
Temporary Connections
Cable Distribution Systems
Benefits of using Quick Splice Connector
Quick Installation, Saves Time
Quick Splice Connectors are designed for fast installation, reducing the time needed to complete wire connections. They’re ideal for people looking for an efficient solution, including DIY enthusiasts and professionals.
High Safety, Reduces Electrical Failures
Quick Splice Connectors provide a reliable electrical connection, minimizing the risk of faulty wiring or short circuits. They ensure stable power flow, which is essential for maintaining safe electrical systems.
Compatible with Multiple Wire Sizes
These connectors are compatible with various wire gauges and cable types, making them a flexible solution for diverse electrical needs, whether at home, in vehicles, or in industrial equipment.
Durable and Corrosion-Resistant
High-quality Quick Splice Connectors are made from durable materials that are resistant to corrosion and oxidation. They can withstand harsh environments, ensuring long-term reliability and performance.
Versatile Applications
Quick Splice Connectors are suitable for many different scenarios, including home electrical installations, automotive electrical systems, low-voltage control circuits, communication systems, and power distribution. They address a wide range of electrical connection challenges.
Resource
Quick Splice Connector FAQ
The Quick Splice Connector supports wires from 0.08 to 4 mm² and can be customized in color. If you have any other customization needs, please feel free to contact us.
Quick Splice Connectors are typically made from a combination of metals and insulating materials designed for conductivity, durability, and safety.
When selecting Quick Splice Connectors, it’s important to consider the material quality, especially if you’re using them in environments that demand high durability and long-term performance.
In general, Quick Splice Connectors are designed to be used for a one-time connection between wires. They work by piercing the wire’s insulation to establish an electrical connection, and once the connector has been used, it is typically not recommended to reuse it. Reusing a Quick Splice Connector could compromise the connection’s quality, leading to potential safety concerns such as loose connections, short circuits, or even wire damage.
However, if the connector has been used in a low-stress application and hasn’t been exposed to extreme conditions (like excessive heat or vibration), it may be possible to carefully disconnect and reuse it. But keep in mind that, in most cases, it’s best to replace it to ensure the connection remains secure and reliable.
For high-reliability applications, it’s usually recommended to use new connectors each time to maintain the integrity of the electrical connection.
To find high-quality Quick Splice Connectors, you need to choose a reputable supplier and ensure that the connectors meet your specifications. At our factory, you can purchase safe, durable, and reliable high-quality quick connectors.
Yes, Quick Splice Connectors can provide a safe and secure electrical connection when used correctly, but their reliability and safety depend on proper installation, quality, and appropriate use.
