In the world of electrical systems, TB Terminal Block Connectors are indispensable components for connecting and organizing wires efficiently. Also known as wire terminal block connectors or barrier terminals, these modular blocks provide a secure and reliable solution for managing electrical connections in control panels, machinery, and wiring cabinets.
What Are The TB Terminal Block Connectors?

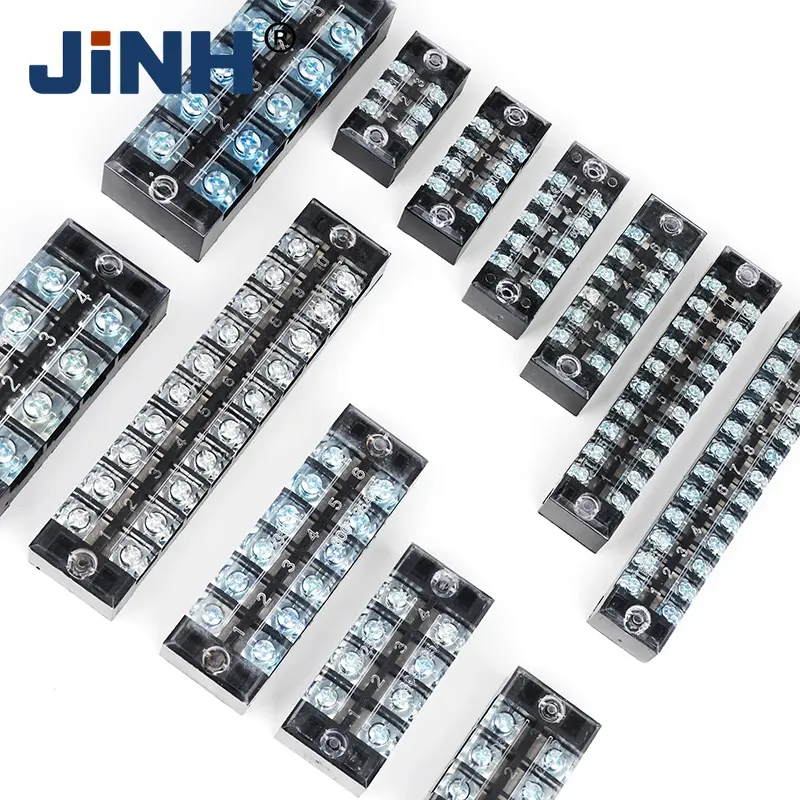

TB Terminal Block Connectors are modular blocks used to terminate and connect electrical wires. They consist of an typically made from PA66 or polycarbonate and brass or copper that provide secure electrical connections. These connectors are designed to prevent short circuits and reduce wiring clutter, positioning them as perfect for use in control panels, power distribution systems, and industrial machinery.
Key Features:
- Insulated Housing: Protects against electrical shocks and environmental factors.
- Metal Terminals: Ensures low resistance and high conductivity.
- Mounting Options: Can be mounted on DIN rails or directly onto surfaces.
How to Use TB Terminal Block Connectors
Using cabinet terminal block is easy and efficient. Here’s a step-by-step guide:
- Prepare the Wires:Strip the insulation from the wire ends to expose the conductor. Ensure the exposed wire is the correct length to fit securely into the terminal.
- Connect the Wires:Insert the stripped wire into the terminal block’s terminal point. Tighten the screw or use the push-in mechanism to secure the connection.
- Secure the Terminal Block:If using a DIN rail-mounted terminal block, attach it to the rail. For surface-mounted blocks, use screws to fix it in place.
- Test the Connection:Ensure all connections are tight and secure.
Product Advantages of TB Terminal Block Connectors
- Safety: The insulated housing prevents short circuits and electrical shocks, guaranteeing secure operation.
- Ease of Installation: Tool-free connections and modular design simplify wiring, saving time and effort.
- Durability: Made from high-quality materials, these connectors withstand harsh environments and prolonged use.
- Organization: Centralize wiring into a neat and structured layout, making maintenance and troubleshooting easier.
- Versatility: Suitable for a lot of different uses, from industrial control panels to residential wiring cabinets.
Comparing TB Terminal Block Connectors to Other Wiring Solutions
While alternatives like wire nuts, crimp connectors, and soldered joints are available, TB Terminal Block Connectors stand out for their:
- Modularity: Easily expandable to accommodate additional wires.
- Reusability: Connections can be disconnected and reconnected without damage, unlike soldered joints.
- Professional Appearance: Creates a clean and organized wiring layout.
Conclusion
TB Terminal Block Connectors are essential tools for anyone working with electrical systems. Their safety, ease of use, and durability make them ideal for applications ranging from industrial machinery to residential wiring cabinets. By centralizing and organizing connections, these connectors not only simplify installation but also enhance system reliability. Whether you’re managing a control panel or setting up a power distribution system, TB Terminal Block Connectors give a strong and efficient solution for your wiring needs.
