CMK211-1 Electric Compact Splicing Connector

The CMK211-1 The insulation-piercing terminal allows for non-disruptive mainline connections, utilizing an internal copper blade to pierce through the outer insulation of the wire and make direct contact with the conductor. This design enables branch connections without cutting the mainline, greatly simplifying the wiring process while ensuring reliable electrical connectivity.

This splicing connector is designed to withstand harsh working conditions with its wide temperature range of -40℃ to +105℃. Additionally, its strip length of 11mm/0.43inch allows for easy installation and maintenance.

Features

● Voltage: 450V
● Rated Current: 24A
● Connection Capacity: 0.08-4mm²
● Working Temperature: -20℃ – +85℃
● Strip Length: 11mm/0.43inch

Material

● Connector Shell: Transparent polycarbonate
● Actuating Lever:Polyamide Pom
● Conductive Parts: Thinned copper
● Contact spring: AISI301

Application

The CMK211-1 wire connector is designed to facilitate the connection of solid, stranded, and fine stranded cables without the use of any tools. The CMK211-1 is a one-in-one-out terminal block, providing a professional solution for joining different types of cables efficiently and effectively.

Product Approvals

Details
Contact Us

Details

CMK211 1 Electric Compact Splicing Connector 1

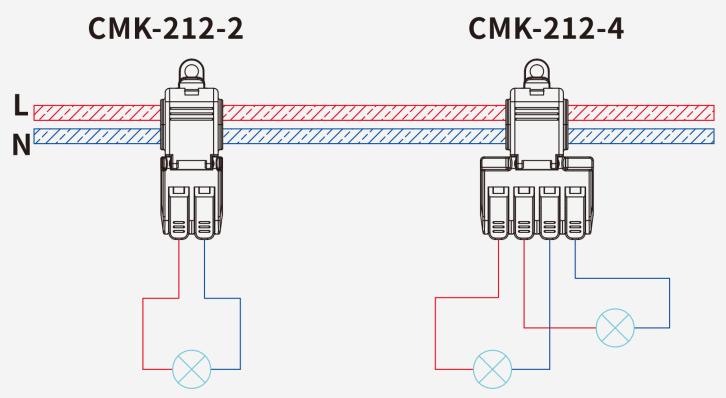

CMK211 1 Electric Compact Splicing Connector 2

Specifications

Product Code	Connector type	No.of circuits	Flexible wire m㎡²	Volt(M)	Ampere(A)	Un	Un
CMK211-1		1-1	0.5→1.0 1.0→1.5 1.5→2.5 2.5→4.0	450V	24A	100	4000
CMK211-2		1-2	0.5→1.0 1.0→1.5 1.5→2.5 2.5→4.0			100	4000
CMK212-2		2-2	0.5→1.0 1.0→1.5 1.5→2.5			50	2000
CMK212-4		2-4	0.5→1.0 1.0→1.5 1.5→2.5			50	2000
