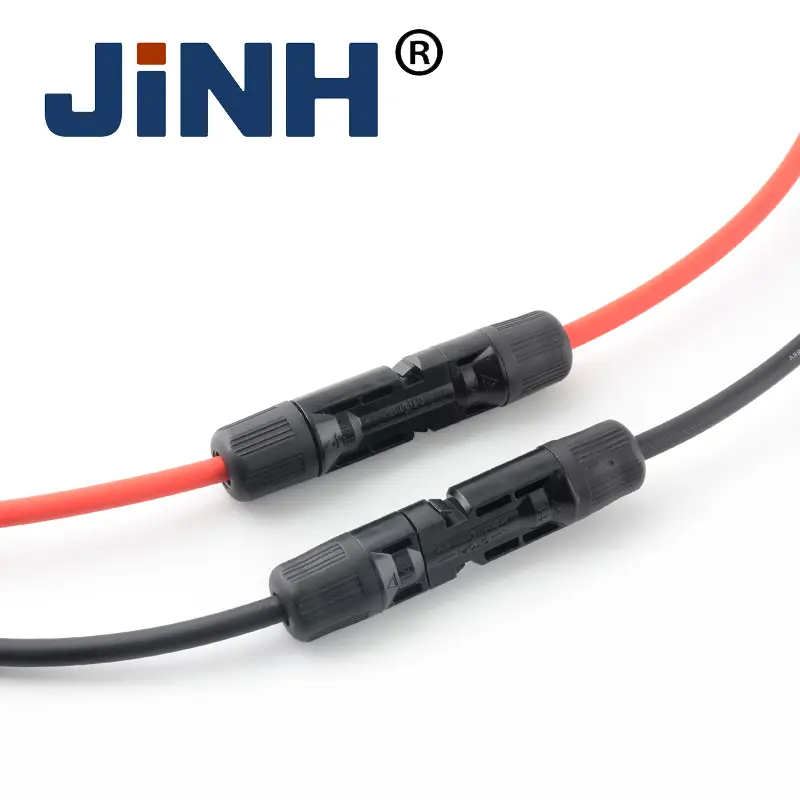

What Is an MC4 Solar Connector?

The MC4 solar connector is a high-performance, waterproof, and dustproof connector widely used in solar panel systems. Its name stands for “Multi-Contact, 4mm pin diameter,” and it is engineered to ensure efficient and reliable power transmission in photovoltaic (PV) systems. With its IP67 rating, the MC4 solar connector is designed to withstand harsh weather conditions, making it an essential component for both residential and commercial solar installations.

How to use an MC4 Solar Connector？

• Prepare the Cable:Strip approximately 1 cm of insulation from the cable end to expose the conductor. Ensure the wire is clean and undamaged.
• Crimp the Terminal Pin:Insert the stripped wire into the MC4 terminal pin (male or female) up to the marked line. Use an MC4 crimping tool to firmly crimp the pin around the wire, make sure the secure electrical connection.
• Assemble the Connector:Slide the crimped terminal pin into the MC4 solar connector housing until it clicks into place. This ensures the pin is locked securely.
• Secure the Weather Seal:Insert the rubber seal into the connector housing to provide waterproof and dustproof protection.
• Test the Connection:Gently pull on the cable to ensure it is securely connected. Use a multimeter to test the continuity and verify the connection is electrically sound.

Applications of MC4 Solar Connector

• Residential Solar Systems: Simplify the connection of solar panels to inverters and batteries, ensuring efficient energy transfer.
• Commercial Solar Projects: Used in solar farms and large-scale installations to connect panels in series or parallel configurations.
• Portable Solar Solutions: Ideal for off-grid systems, RVs, and camping setups, providing reliable connections in harsh outdoor environments.
• Industrial Solar Installations: Ensure durability and safety in high-power systems, such as industrial rooftops and solar-powered machinery.

Advantages of MC4 Solar Connector

• Waterproof and Dustproof: Rated IP67, it can withstand immersion in water up to 1 meter deep and is fully protected against dust.
• High Efficiency: Designed to minimize power loss, ensuring maximum energy transfer.
• Durability: Made from UV-resistant materials, it can withstand temperatures ranging from -40°C to +90°C.
• Safety: Features a snap-in locking mechanism to prevent accidental disconnections.
• Versatility: Suitable for a wide range of solar applications, from small residential systems to large commercial projects.

Why Choose MC4 Solar Connector?

The MC4 solar connector is a proven solution for safe and efficient solar power transmission. Its robust design, ease of assembly, and reliability make it an ideal choice for professionals alike. Whether you’re installing a home solar system or managing a large-scale solar farm, the MC4 solar connector ensures consistent performance and long-term durability.

Conclusion

The MC4 solar connector is a versatile and reliable solution for modern solar installations, known for its efficiency, safety, and durability. As the industry standard, it’s compatible with residential, commercial, and portable solar systems,make it safe connections with its snap-in locking mechanism and crimp-and-click design. Available in various specifications, it adapts to diverse project needs.

Its UV-resistant, weatherproof materials and IP67 rating ensure long-term performance in harsh environments, while low power loss maximizes energy efficiency. Whether for home systems, solar farms, or off-grid setups, the MC4 solar connector is the go-to choice for reliable power transmission. Its ease of use, durability, and versatility make it essential for any solar project.
