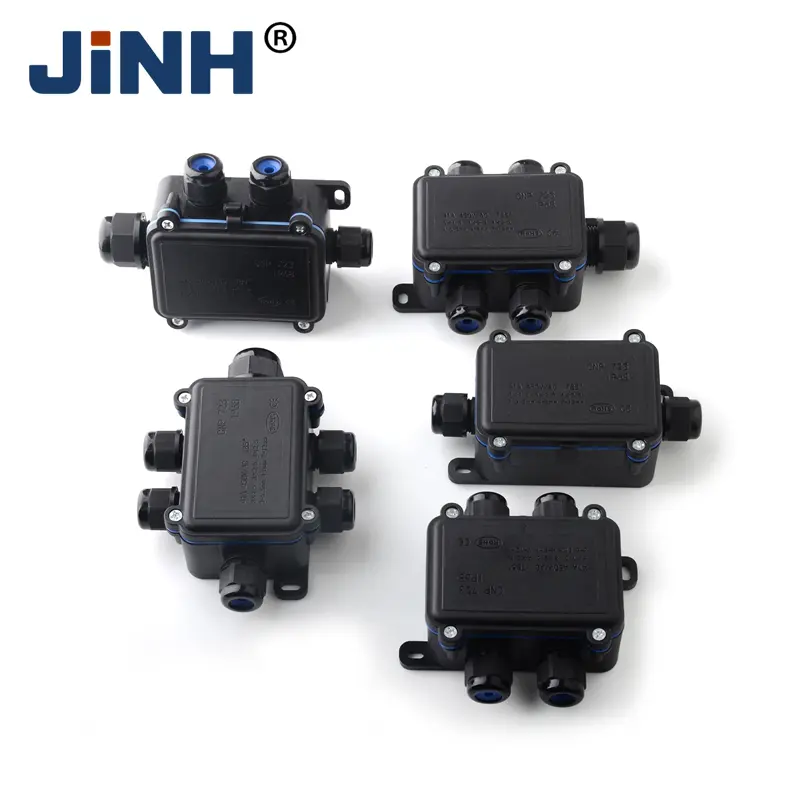

CNP-723-5T Waterproof Junction Box

The CNP-723-5T Waterproof Junction Box is designed to deliver superior protection and reliability for electrical connections in the most demanding environments. Rated for 450V AC and 41A, this junction box is ideal for a wide range of applications that require secure and durable electrical connections. With an IP68 rating, it guarantees complete protection against dust and water, making it perfect for both outdoor and underwater use.

Built with a robust Polyamide Pa66 shell, the CNP-723-5T features a silicon O-Ring for an airtight seal and #45 steel self-tapping screws for secure assembly. It is engineered to support various cable types, including IP68 waterproof connectors, waterproof electrical connectors 240V, and waterproof cable connectors IP68, providing flexibility and reliability for your most demanding projects.

Features

● Voltage: 450V AC
● Rated Current: 41A
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Material of shell: Polyamide Pa66
● Waterproof O-Ring :Silicon
● Self-tapping screws :#45 steel

Application

The CNP-723-5T is ideal for applications requiring IP68 waterproof connectors and waterproof electrical connectors 240V. It ensures secure and efficient cable connections in outdoor, underwater, and high-moisture environments, making it an excellent choice for landscape lighting, industrial setups, and other demanding applications.

Product Approvals

4 1

Specifications

Product name Product type Inside dimension
L x W x D
External dimension
A x B x C
Mode of connection
CNP723-2T CNP723 2T 73x46x34 133x66x41.3 3-6.5/4-8/7-12
CNP723-3T CNP723 3T 73x46x34 133x81x41.3 3-6.5/4-8/7-12
CNP723-4T-A CNP723 4T A 73x46x34 133x81x41.3 3-6.5/4-8/7-12
CNP723-4T-B CNP723 4T B 73x46x34 103x96x41.3 3-6.5/4-8/7-12
CNP723-5T CNP723 5T 73x46x34 117x96x41.3 3-6.5/4-8/7-12
CNP723-6T CNP723 6T 73x46x34 133x96x41.3 3-6.5/4-8/7-12
CNP723(Custom Edition) CNP723Custom Edition 73x46x34 103x66x41.3 3-6.5/4-8/7-12

Download

Structure diagram 41
Structure diagram2 23
Structure diagram3 17
