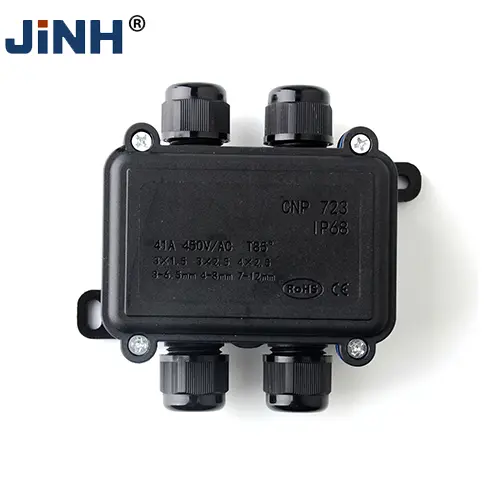

CNP-723 Waterproof Junction Box

The CNP-723 Waterproof Junction Box, boasting a voltage rating of 450V AC and a rated current of 41A, serves as a dependable enclosure in the electrical industry. With an IP68 rating, it provides essential protection against dust and water, making it an indispensable component for safeguarding electrical connections in challenging environments. Featuring a rugged Polyamide Pa66 shell, a silicon O-Ring for an airtight seal, and #45 steel self-tapping screws, this junction box meets the stringent requirements of electrical installations in harsh conditions.

The rigidity of soft insulated wire can reach 4mm², this product operates effectively within a temperature range of -40°C to +90°C, and it boasts an IP68 waterproof rating. It is both waterproof and efficient, making it a top choice for demanding applications.

Features

● Voltage: 450V AC
● Rated Current: 41A
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Material of shell: Polyamide Pa66
● Waterproof O-Ring: Silicon
● Self-tapping screws: #45 steel

Application

CNP-723 waterproof junction box is designed to provide a safer and more convenient cable connection in scenarios where complete submersion is required. It offers a professional solution for various types of applications, ensuring the security of connections.

Product Approvals

4 1

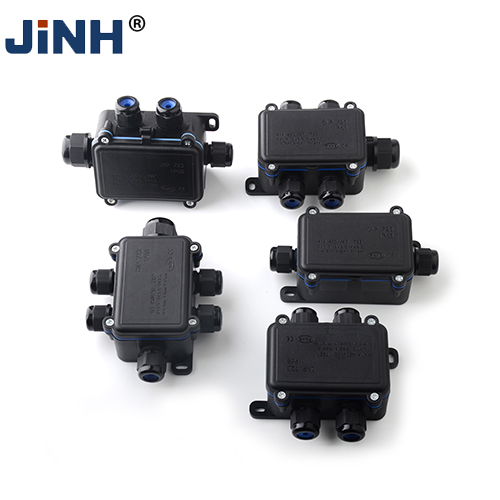

Specifications

Product name Product type Inside dimension
L x W x D
External dimension
A x B x C
Mode of connection

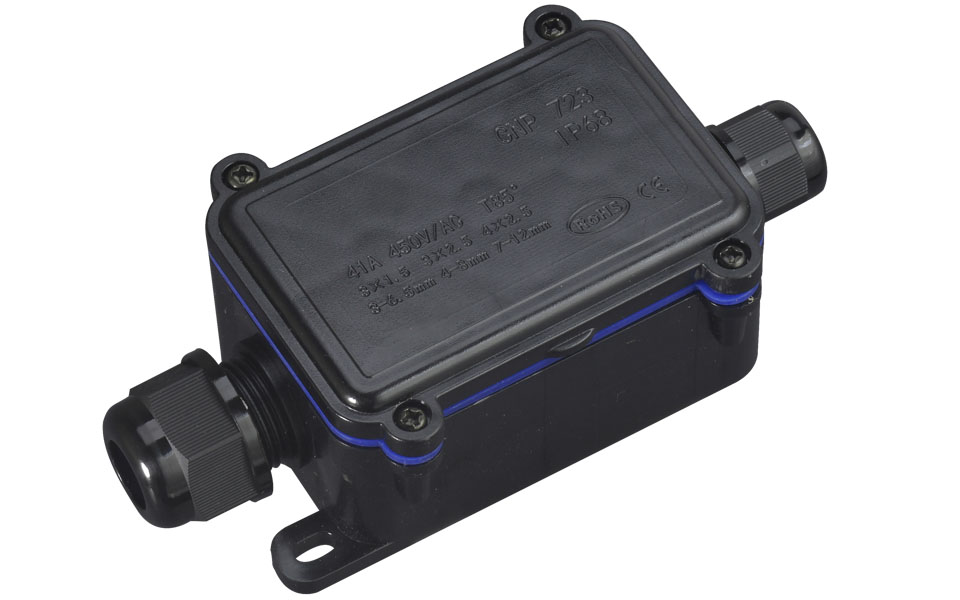

CNP723-2T CNP723 2T 73x46x34 133x66x41.3 3-6.5/4-8/7-12
CNP723-3T CNP723 3T 73x46x34 133x81x41.3 3-6.5/4-8/7-12

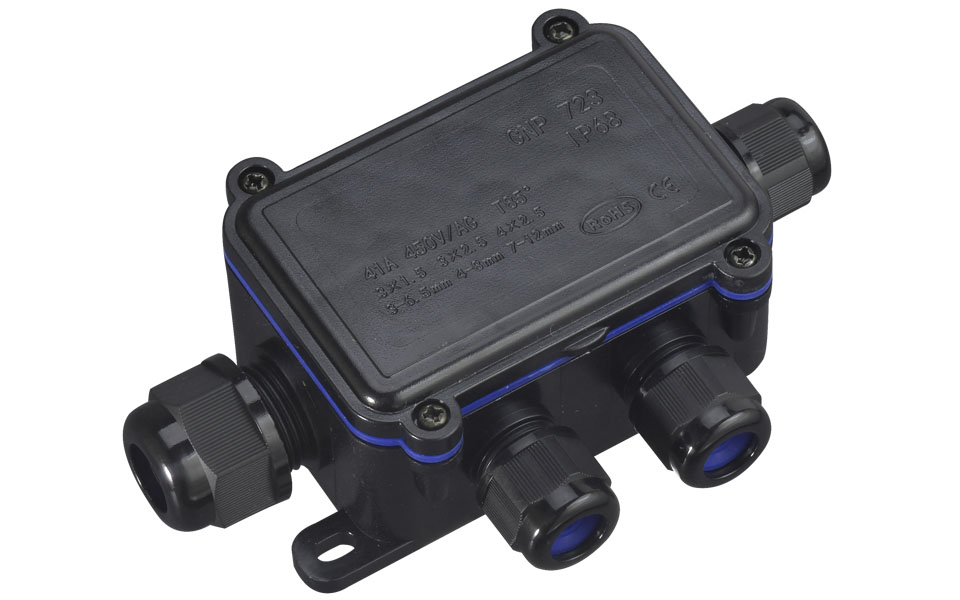

CNP723-4T-A CNP723 4T A 73x46x34 133x81x41.3 3-6.5/4-8/7-12

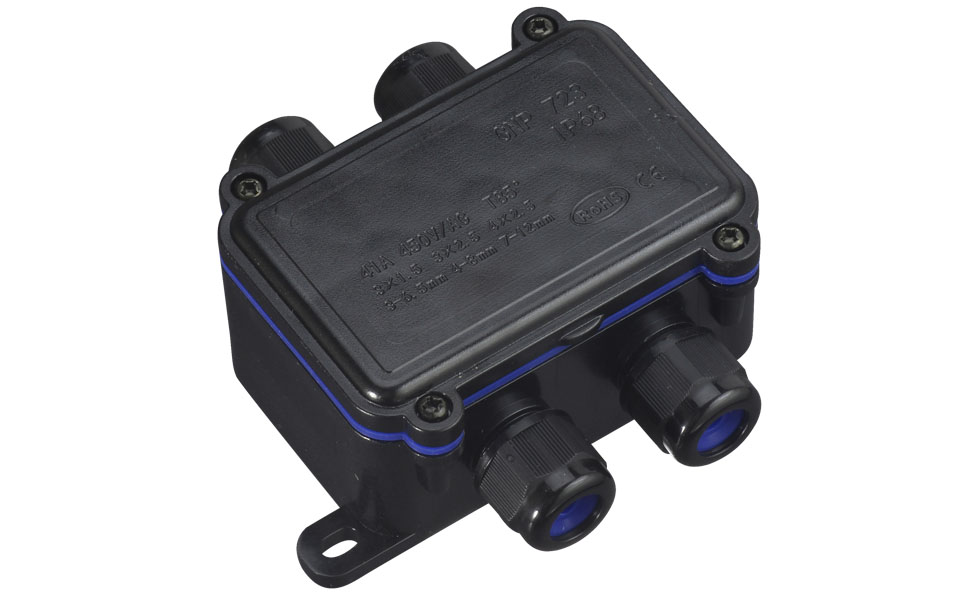

CNP723-4T-B CNP723 4T B 73x46x34 103x96x41.3 3-6.5/4-8/7-12

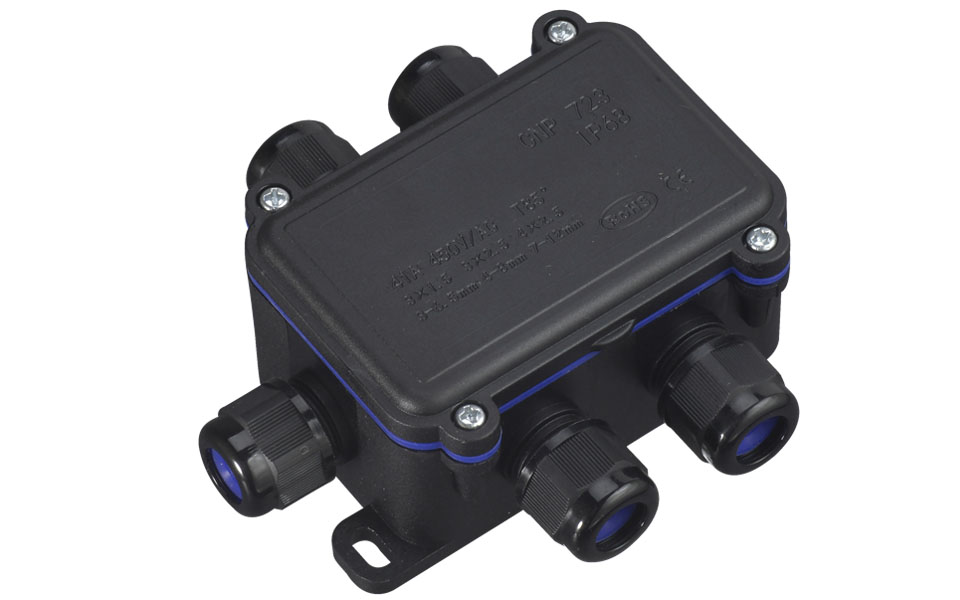

CNP723-5T CNP723 5T 73x46x34 117x96x41.3 3-6.5/4-8/7-12
CNP723-6T CNP723 6T 73x46x34 133x96x41.3 3-6.5/4-8/7-12

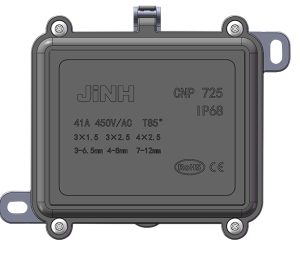

CNP723(Custom Edition) CNP723Custom Edition 73x46x34 103x66x41.3 3-6.5/4-8/7-12

Download

Structure diagram 41
Structure diagram2 23

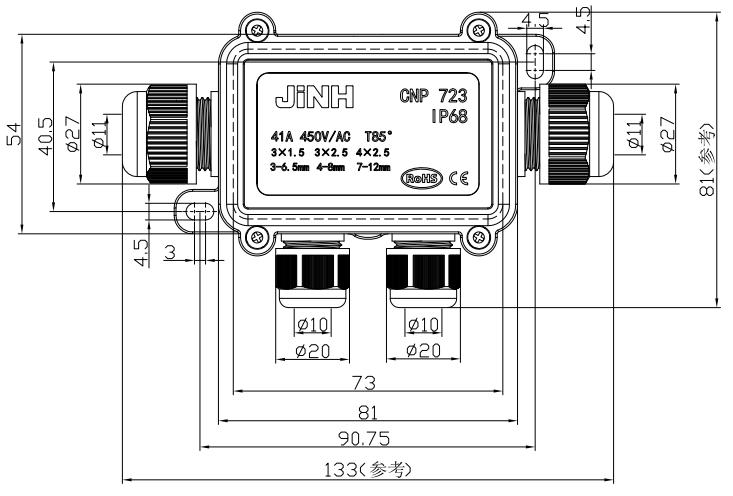

Structure diagram3 17
