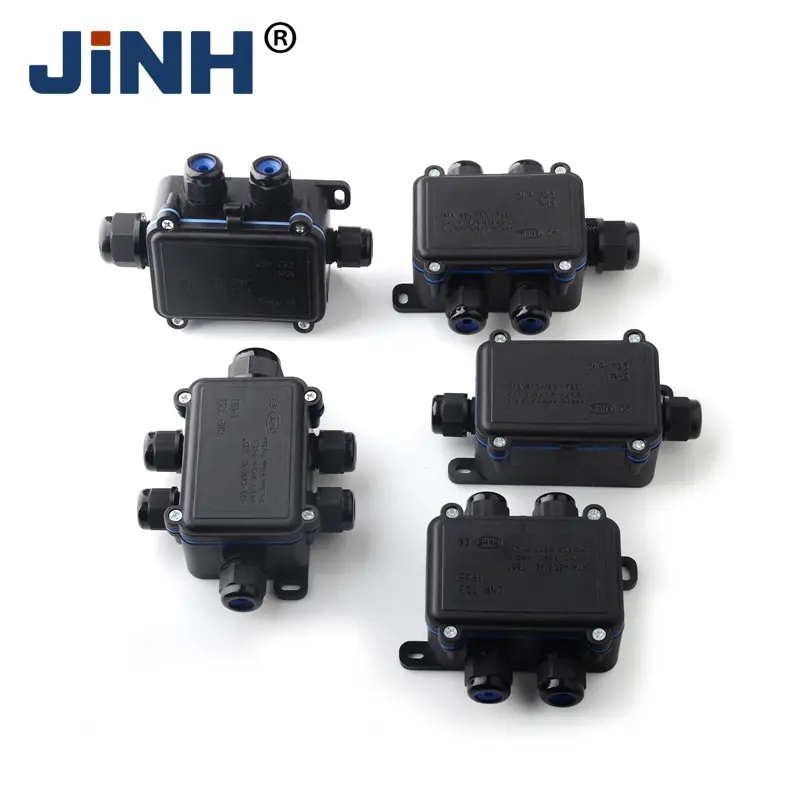

CNP-723-2T Waterproof Junction Box

The CNP-723-2T Waterproof Junction Box is engineered to deliver dependable protection in outdoor environments, featuring IP68 wire connectors and vodotesna spojka technology. This junction box offers a robust solution for waterproof outdoor wire connections, ensuring reliability even in the harshest conditions.

Designed with IP68-rated wire connectors, the CNP-723-2T Junction Box provides superior protection against water ingress, dust, and other environmental factors. The vodotesna spojka technology further enhances its waterproof capabilities, making it suitable for use in wet or damp locations.

Features

● Voltage: 450V AC
● Rated Current: 41A
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Material of shell: Polyamide Pa66
● Waterproof O-Ring: Silicon
● Self-tapping screws: #45 steel

Application

The CNP-723-2T Waterproof Junction Box provides a secure and reliable solution for outdoor electrical installations, ensuring the safety and integrity of wire connections in challenging outdoor conditions.

Product Approvals

Details
Contact Us

Details

Specifications

Product name	Product type	Inside dimension L x W x D	External dimension A x B x C	Mode of connection
CNP723-2T		73x46x34	133x66x41.3	3-6.5/4-8/7-12
CNP723-3T		73x46x34	133x81x41.3	3-6.5/4-8/7-12
CNP723-4T-A		73x46x34	133x81x41.3	3-6.5/4-8/7-12
CNP723-4T-B		73x46x34	103x96x41.3	3-6.5/4-8/7-12
CNP723-5T		73x46x34	117x96x41.3	3-6.5/4-8/7-12
CNP723-6T		73x46x34	133x96x41.3	3-6.5/4-8/7-12
CNP723(Custom Edition)		73x46x34	103x66x41.3	3-6.5/4-8/7-12
