Quick connectors have revolutionized electrical wiring by making connections more efficient, safe, and reliable. The CMK923 push-in quick connector is a prime example of this innovation, offering a combination of premium materials, robust safety features, and ease of use. This guide will provide a comprehensive overview of quick connectors, including their definition, the criteria for selecting the right model, step-by-step instructions on how to use them, and an analysis of the benefits they offer.
What Is a Quick Connector?
A quick connector is a wire connection device that allows for fast and secure electrical wiring without the need for screws or soldering. The CMK923 wire connectors series features a push-in mechanism, enable user to insert wires effortlessly while ensuring a firm and stable connection.
These connectors are widely used in residential, commercial, and industrial electrical installations, upgrade the traditional wire nuts and terminal blocks.
Choosing the Right Model
When selecting a quick connector, consider the following factors:
- Number of Wires (Poles): The CMK923 wire connector series offers multiple options, including 2P, 3P, 4P, and 5P, allowing users to choose based on the required number of connections.
- Rated Voltage and Current: This series supports 380V and 32A, making it suitable for various power applications.
- Wire Compatibility: Ensure the connector is compatible with your wire gauge and type to guarantee a secure fit.
How to Use CMK923 Quick Connectors?
Using the CMK923 quick connectors is simple and efficient:
- Prepare the Wires – Use a wire stripper to carefully remove approximately 10-12mm of insulation from the wire ends, ensuring not to damage the wire strands.
- Insert the Wire – Press the booster and insert the wire.
- Removal (If Needed) – To remove a wire, simply press the release mechanism and pull the wire out.
With this intuitive design, electricians and DIY enthusiasts alike can complete wiring projects quickly and efficiently.
Benefits of CMK923 Quick Connectors
Following the usage instructions, it’s important to understand the advantages of the CMK923 quick wire connector series, which enhance safety, durability, and ease of use:

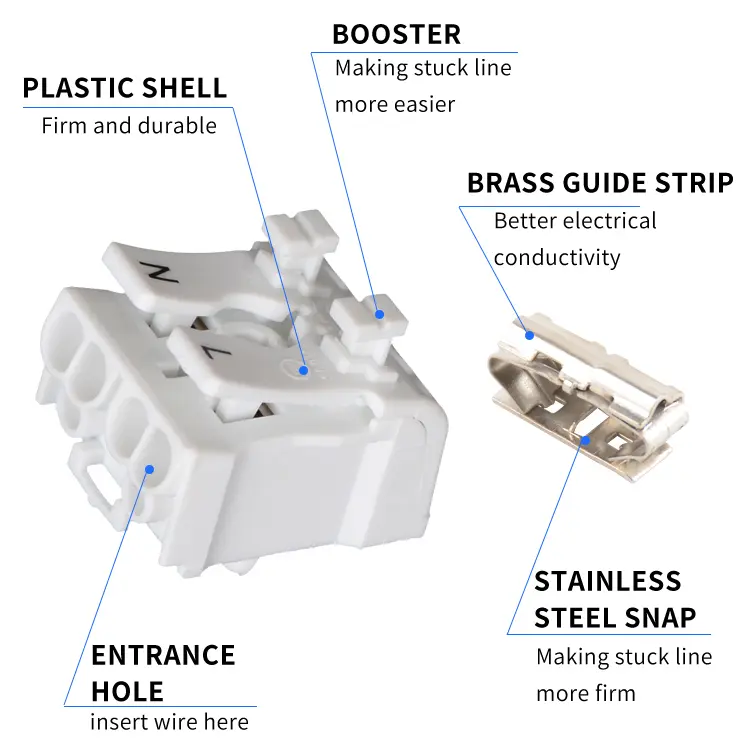

- Premium PC Material – The entire connector is made of high-quality polycarbonate material, which is environmentally friendly and ensures long-term durability.
- Flame Retardant & Safety – The insulation material is self-extinguishing, meaning it prevents fire from spreading and enhances overall safety.
- Superior Conductivity – Equipped with a brass guide strip, the CMK923 electrical connector make sure excellent electrical conductivity for stable performance.
- Strong & Secure Connection – The stainless steel snap mechanism holds the wire firmly in place, preventing accidental disconnection.
- Multiple Pole Options – Available in 2P, 3P, 4P, and 5P, making it versatile for different wiring configurations.
- Tool-Free Installation – No need for screwdrivers or soldering, reducing installation time and effort.
summary
The CMK923 wire connector offers a streamlined approach to wiring tasks, more safety, reliability, and ease of use. Key features such as premium materials, flame retardancy, and not need tool installation make these connectors a valuable choice for various electrical applications. Whether you’re working on residential lighting, industrial machinery, or commercial electrical systems, these connectors provide a fast, secure, and maintenance-free solution.
By choosing CMK923 quick connectors, you benefit from high-quality materials, enhanced safety features, and superior performance, making them an essential component for modern electrical installations.
