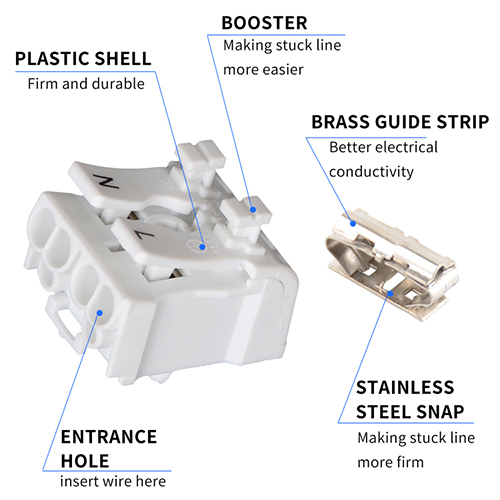

The CMK-923-2 Push In Quick Connector is a high-quality and durable connector designed for various electrical applications. With its PA66 shell, actuating lever, and conductive parts made of thinned copper,this connector ensures reliable and secure connections.
This splicing connector is designed to withstand harsh working conditions with its wide temperature range of -20℃ to +105℃. Additionally, its strip length of 11mm/0.43inch allows for easy installation and maintenance.
● Voltage: 450V
● Rated Current: 5A
● Connection Capacity: 0.2-6mm²
● Working Temperature: -20℃ – +90℃
● Strip Length: 11mm/0.43inch
● Connector Shell: PA66
● Actuating Lever: PA66
● Conductive Parts: Thinned copper
● Contact spring: SS301
The CMK-923-2 is designed to facilitate the connection of solid, stranded, and fine stranded cables without the use of any tools. It provides a professional solution for joining different types of cables efficiently and effectively.
| Product Code | Connector type | Wire section (mm²) |
Current | Voltage | Un |
| CMK923-2 |  |
0.2~2.5mm² | 25A | 380V | 100 |
| CMK923-3 |  |
100 | |||
| CMK923-4 |  |
50 | |||
| CMK923-5 |  |
50 |
