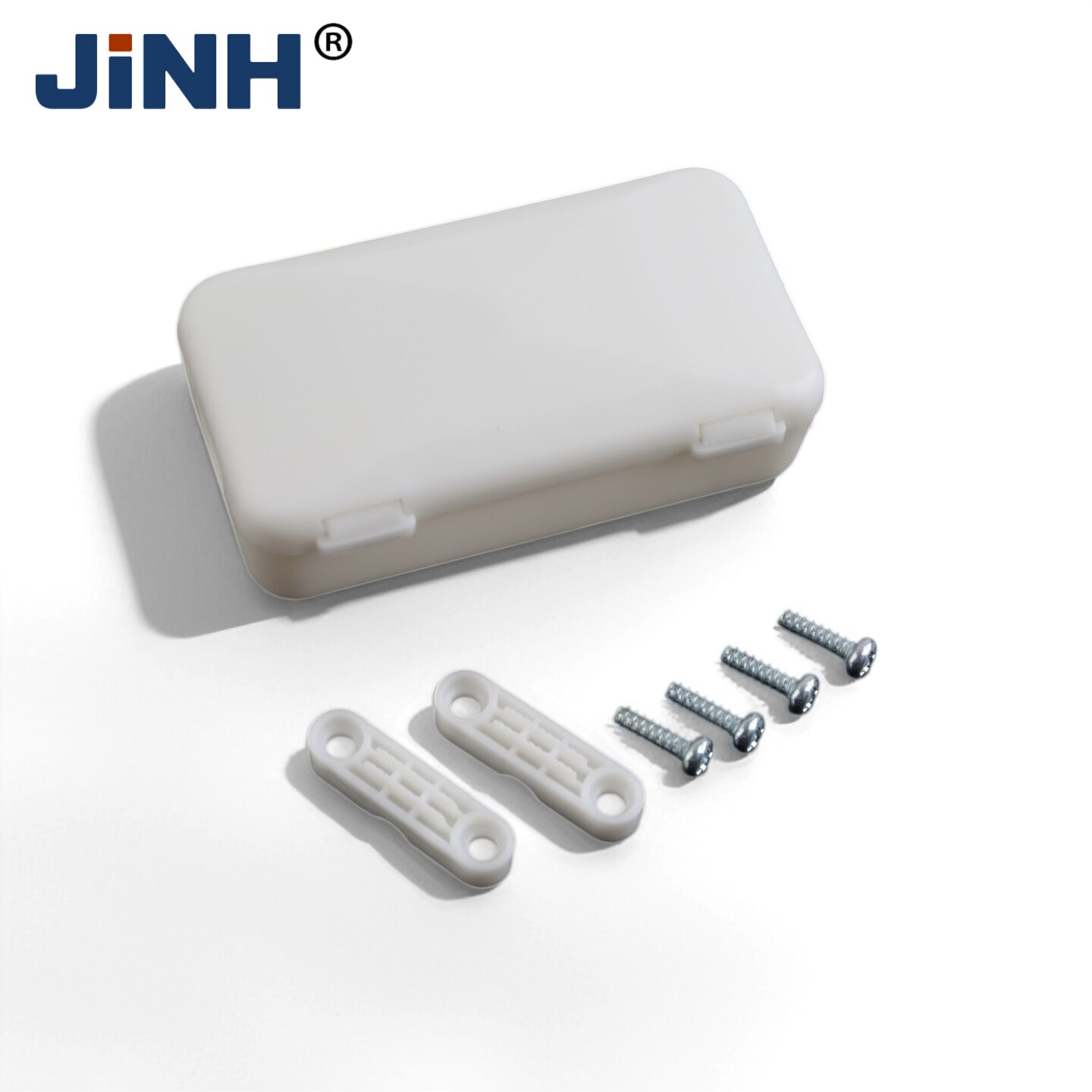

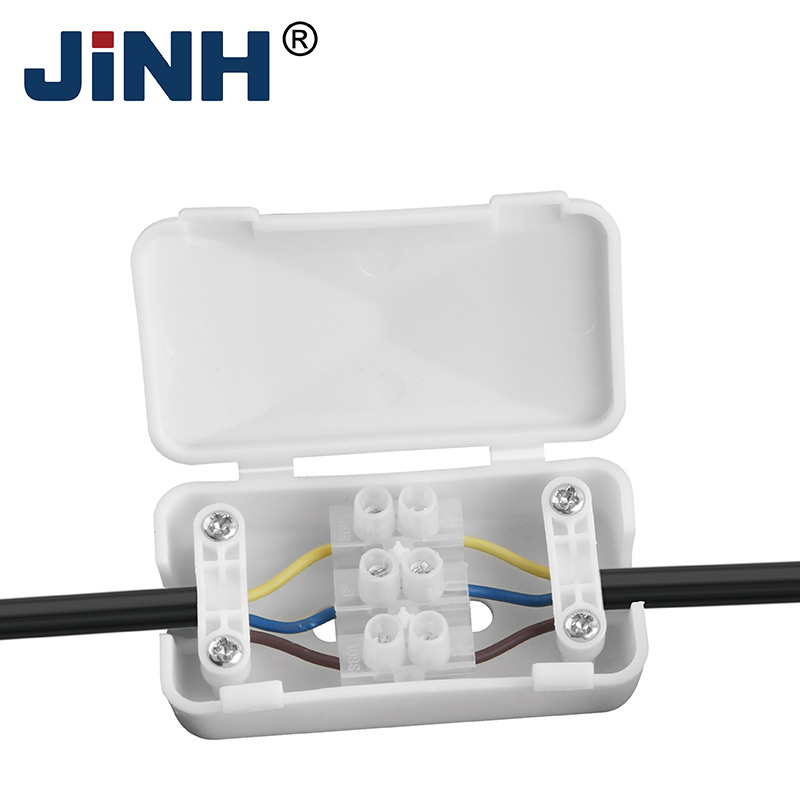

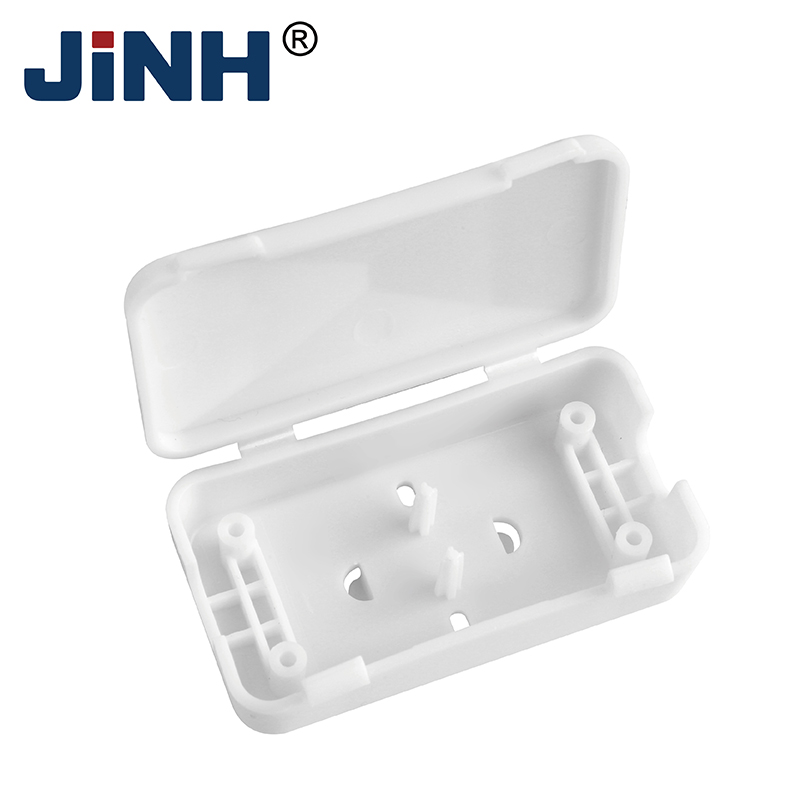

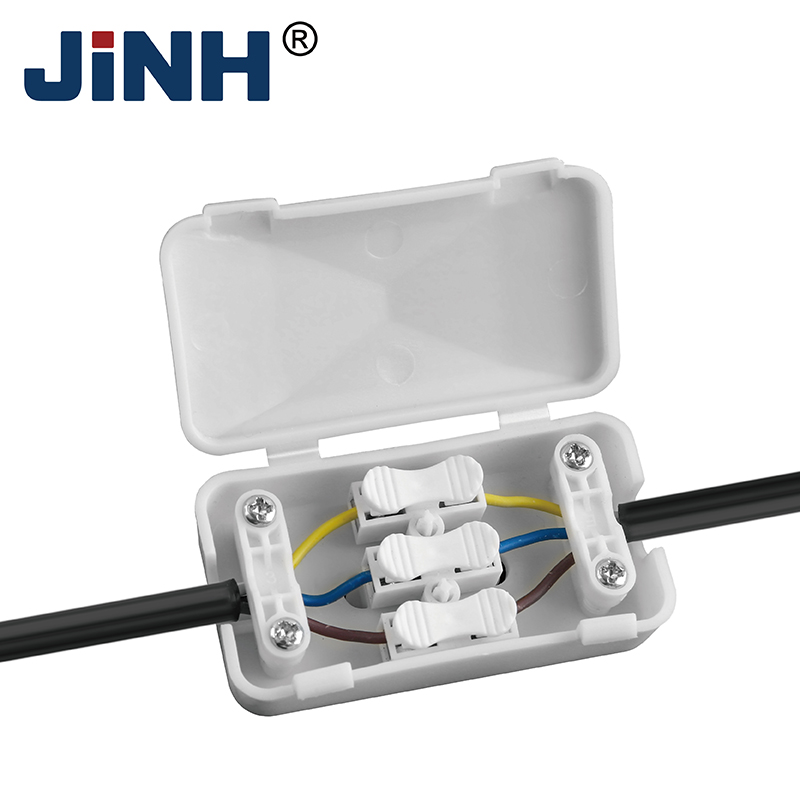

This junction box features a white insulating housing and internal terminal blocks, enabling the safe connection and branching of multi-core cables. It incorporates an internal cable clamping mechanism that secures the cable jacket via screws; this design minimizes the impact of pulling forces on the internal terminals, thereby enhancing connection stability.
Features
● Voltage: 450V
● Rated Current: 10A
● Connection Capacity: 0.5-2.5mm²
● Working Temperature: -40℃ – +105℃
● Strip Length: 11mm/0.43inch
Material
● Connector Shell: PA66
● Actuating Lever: PA66
● Conductive material: Brass
Application
Primarily used for wire connections, branch line protection, and cable securing; suitable for applications such as lighting, electrical installations, home wiring, and small equipment connections.
Product Approvals
Technical Specifications
| Feature | Details |
|---|---|
| Wiring Type | 3 Input 3 Output |
| Mounting Feature | Integrated Side Mounting Hole |
| Rated Voltage/Current | 450V / 10A |
| Compatible Wire (Stranded) | 0.5–2.5 mm² (28–14 AWG) |
| Strip Length | 9–10 mm |
| Housing Material | Fire-resistant Polycarbonate |
