CMK-205 Wire Plug Connectors

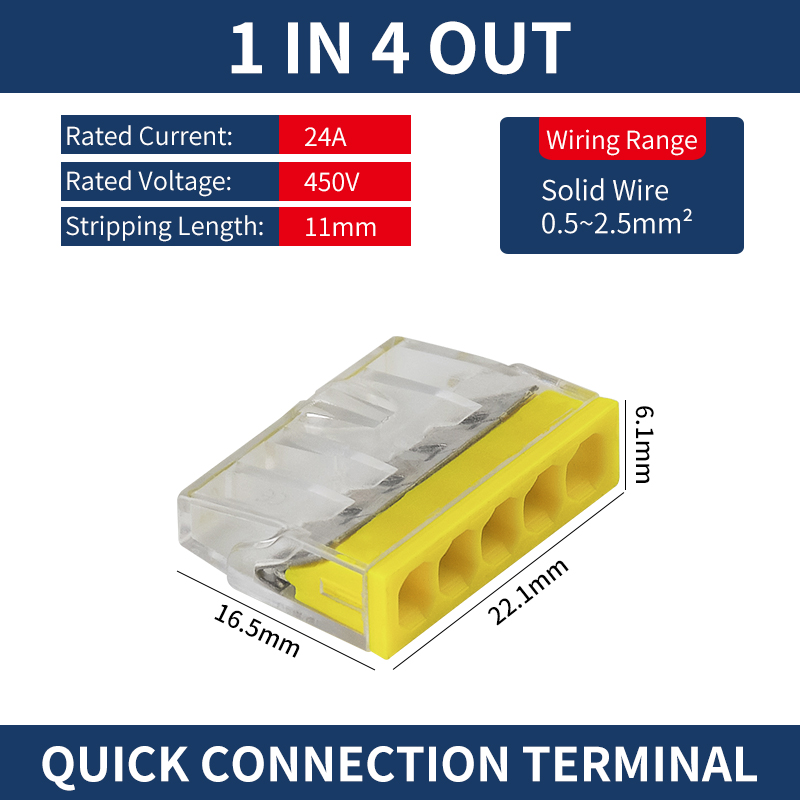

Discover the unmatched quality and reliability of CMK-205 Wire Plug Connectors, brought to you byJINH. With dimensions of 21.6*16.5*6.1mm, these connectors offer a perfect balance of compactness and performance. Crafted with a transparent polycarbonate shell, they provide durability and visibility, ensuring seamless installations in any setting.

Engineered with precision, the CMK-205 features conductive parts made from thinned copper and contact springs constructed from SS301, guaranteeing superior conductivity and long-term durability.

Features

● Voltage: 450V
● Rated Current: 24A
● Connection Capacity: 0.5-2.5mm²
● Working Temperature: -20℃ – +85℃
● Strip Length: 11mm/0.43inch

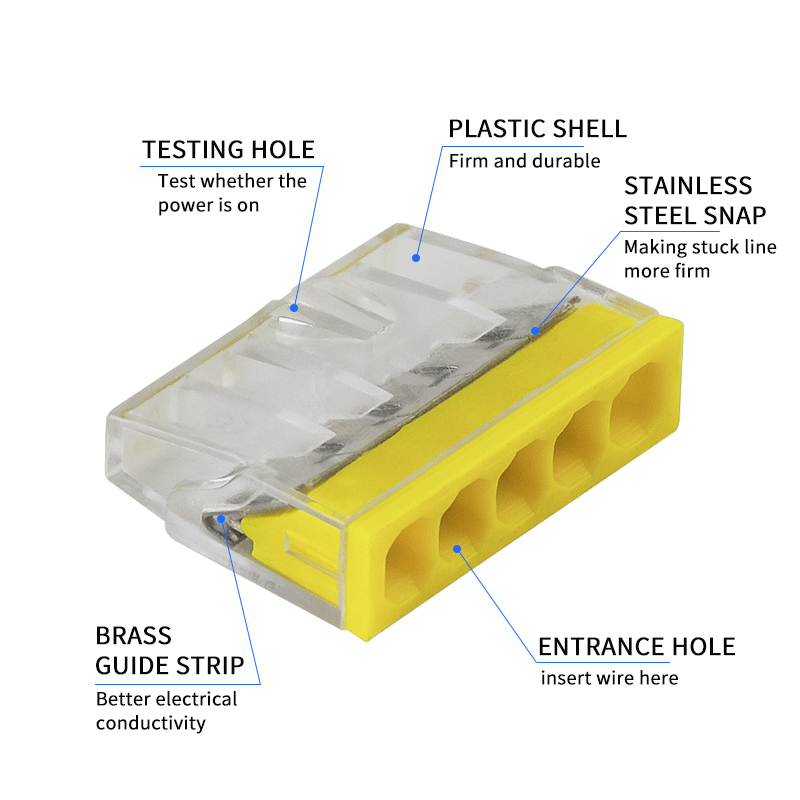

Material

● Connector Shell: Transparent polycarbonate
● Conductive Parts: Thinned copper
● Contact spring: SS301

Product Approvals

Application

Electrical Installations: Suitable for connecting wires in light fixtures, switches, outlets, and appliances.
Control Panels: Used to connect wires within control panels for machinery, equipment, and industrial automation systems.
Junction Boxes: Applied in junction boxes to facilitate wiring connections in electrical circuits.
Lighting Systems: Utilized for wiring connections in lighting fixtures, both indoors and outdoors.

Details
Contact Us

Details

CMK-205 Wire Plug Connectors: Compact Design for Versatile Wiring Solutions

The CMK-205 Wire Plug Connectors offer convenient wiring solutions, efficient installation, and versatile compatibility, making them suitable for a wide range of electrical wiring tasks across different industries and settings. They offer several advantages that make them a preferred choice for electrical wiring applications:

Convenient Wiring: The extremely compact design of the connectors enables convenient and space-saving wiring solutions in tight spaces or crowded electrical enclosures.
Push Wire Connection: Featuring push wire connection technology, these connectors allow for quick and easy termination of up to 5 solid and stranded conductors without the need for tools, saving time and effort during installation.
Versatile Compatibility: The connectors support any combination of conductor sizes, allowing for flexibility in wiring configurations and accommodating a wide range of wire gauges for increased versatility in various applications.

Specifications

Product Code	Connector type	No.of circuits	Rigid wire mm²	Volt(V)	Ampere(A)	Un	Un
CMK-202		2	0.5→2.5	450 V	24A	150	9000
CMK-203		3				100	6000
CMK-204		4				100	6000
CMK-205		5				10	6000
CMK-206		6				50	3000
CMK-208		8				50	3000
