CNP-25 Waterproof Inline Cable Connector

Introducing the CNP-25 Waterproof Inline Cable Connector, the ultimate solution for secure and reliable cable connections in any environment. With a voltage range of 250-450V AC and a rated current of 16A, this connector can handle even the most demanding situations.

Made with high-quality materials such as Polyamide PA66 shell and copper conductive parts, you can trust the durability and performance of this connector. Whether you’re working in extreme temperatures or underwater conditions, the IP68 protection rate ensures that your connections stay secure. Choose the CNP-25 for a reliable and professional cable connection solution.

Features

● Voltage: 250-450V AC
● Rated Current: 16A
● Connection Capacity: 0.5-2.5mm²
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Connector Shell: Polyaide PA66
● Conductive Parts: Copper

Product Approvals

4 1

Application

The CNP-25 Waterproof Inline Cable Connector finds diverse applications across industries that require reliable connectivity in harsh environments.

In marine engineering, it ensures secure connections between underwater cables and sensors, allowing for uninterrupted data transmission.

In the oil and gas industry, these connectors are crucial for ensuring the integrity of cables running through pipelines, reducing the risk of leaks or failures.

Furthermore, the waterproof inline cable connector is ideal for use in outdoor lighting systems, ensuring that power connections remain safe and reliable even during extreme weather conditions.

Specifications

Product Code Connector type No.of circuits Volt(V) Ampere(A) Connection wire
mm
Into the scope of line
CNP25-3P CNP25 3P 250-450V 16A 0.5→2.5 Ф6→Ф11mm
CNP25-4P 4P
CNP25-5P 5P
CNP25T-3P CNP25T 3P
CNP25T-4P 4P
CNP25T-5P 5P
CNP25Y-3P CNP25Y 3P
CNP25Y-4P 4P
CNP25Y-5P 5P

Download

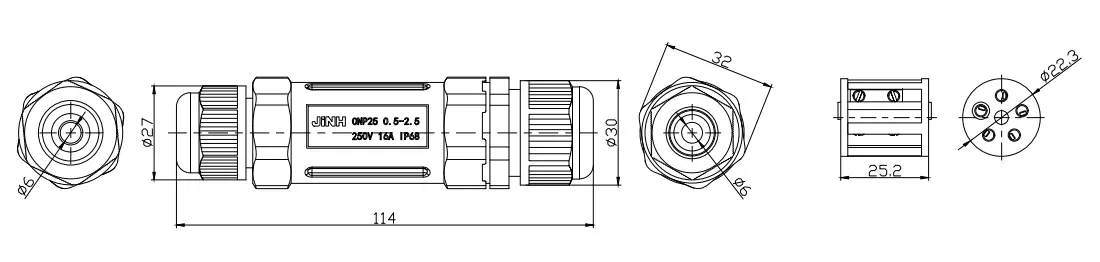

CNP 25 Outdoor Electrical Wire Connector Structure diagram
