CNP-25Y Outdoor Electrical Wire Connector

Home > Waterproof Connector > CNP-25Y Outdoor Electrical Wire Connector

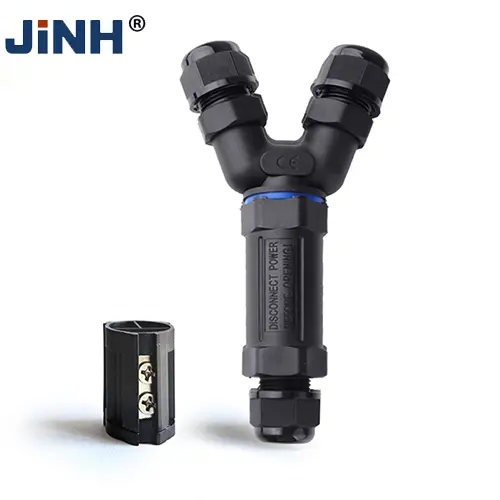

CNP-25Y Outdoor Electrical Wire Connector

The CNP-25Y Outdoor Electrical Wire Connector is the ultimate solution for all your outdoor electrical wiring requirements. With a voltage range of 250-450V AC and a rated current of 16A, this connector can efficiently handle all your outdoor electrical projects.

Its durable construction, featuring a Polyaide PA66 connector shell and copper conductive parts, ensures longevity and reliability even in harsh weather conditions. The IP68 protection rate and wide working temperature range of -40°C to 85°C make the CNP-25Y an ideal choice for secure connections outdoors. Trust the CNP-25Y to provide a safe and efficient solution for all your outdoor electrical needs.

CNP-25Y Waterproof Connector inner cores can be selected

Features

● Voltage: 250-450V AC
● Rated Current: 16A
● Connection Capacity: 0.5-2.5mm²
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Connector Shell: Polyaide PA66
● Conductive Parts: Copper

Product Approvals

Application

The CNP-25Y Outdoor Electrical Wire Connector is a versatile solution for connecting cables in outdoor environments.

In solar panel installations, this connector enables safe and secure connections between panels and inverters, ensuring efficient energy transmission. Its waterproof design protects against moisture and humidity, ensuring reliable performance in rainy or damp conditions.

Moreover, the CNP-25Y connector is also suitable for use in outdoor lighting systems, where it connects power cables to fixtures, enhancing the safety and aesthetics of outdoor spaces. Whether in gardens, parks, or street lighting, this connector ensures reliable electrical connections that can withstand the rigours of outdoor exposure.

Details
Contact Us

Details

Specifications

Product Code	Connector type	No.of circuits	Volt(V)	Ampere(A)	Connection wire mm	Into the scope of line
CNP25-3P		3P	250-450V	16A	0.5→2.5	Ф6→Ф11mm
CNP25-4P		4P
CNP25-5P		5P
CNP25T-3P		3P
CNP25T-4P		4P
CNP25T-5P		5P
CNP25Y-3P		3P
CNP25Y-4P		4P
CNP25Y-5P		5P
