CNP-35 Waterproof Wire Connectors

The CNP35 Waterproof Wire Connector is a high-performance IP68-rated solution designed for outdoor electrical connections, ensuring superior waterproof and dust proof sealing. With its 3-core terminal block, it accommodates cables with an outer diameter of 8-15mm and supports wiring ranges from 1.5mm² to 4mm², making it ideal for various industrial, commercial, and outdoor applications.

Key design features include an anti-loosening tight nut, a waterproof rubber ring, and a secure clamping jaw to enhance connection stability and prevent moisture ingress, making it perfect for harsh outdoor environments.

Features

● Voltage: 250V AC
● Rated Current: 24A
● Connection Capacity: 1.5-4.0mm²
● Working Temperature: -30°C to 85°C
● Protection Rate: IP68

Material

● Connector Shell: Polyaide PA66
● Conductive Parts: Copper

Product Approvals

Application

The CNP35 Waterproof Wire Connector is made from durable PA material, ensuring excellent mechanical strength and weather resistance. The copper conductive material ensures stable and efficient electrical transmission, supporting a rated current of 24A and a rated voltage of 250V.

This waterproof wire connector is widely used in LED lighting, outdoor surveillance systems, industrial automation, solar energy systems, and marine applications, providing a reliable and long-lasting connection solution. Its easy assembly and make sure locking mechanism ensure hassle-free installation while maintaining a high level of protection and durability.

Details
Contact Us

Details

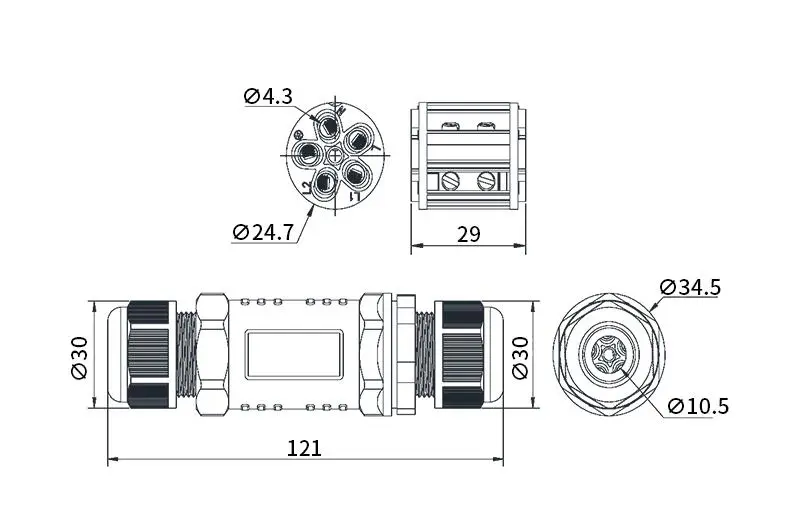

Specifications

Product Code	Connector type	No.of circuits	Volt(V)	Ampere(A)	Connection wire mm	Into the scope ofline
CNP35-Y		3-5P	250V	24A	1.5→4.0	Ф8→Ф15mm
CNP35		3-5P	250V	24A	1.5→4.0	Ф8→Ф15mm
