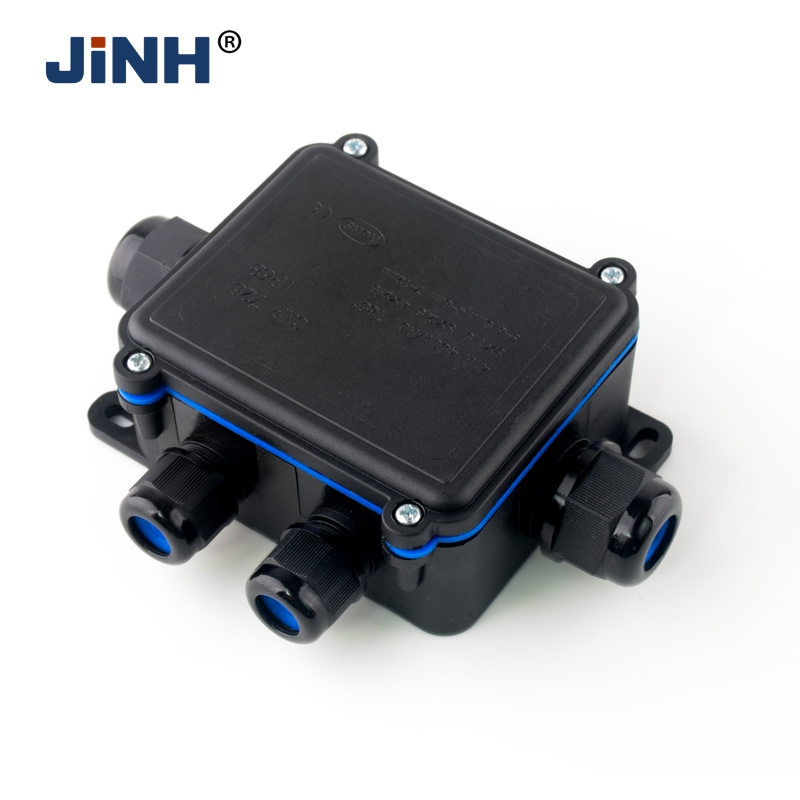

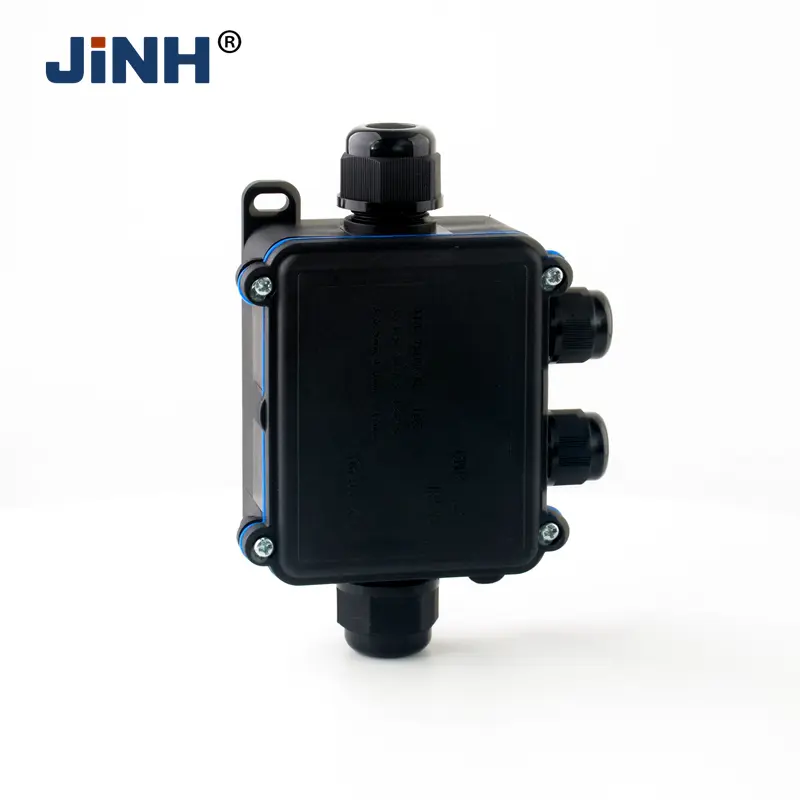

CNP-725-4T-A Waterproof Junction Box

The CNP-725-4T-A Waterproof Junction Box is expertly crafted to provide superior protection and reliability for electrical connections in challenging environments. With a voltage rating of 450V AC and a current rating of 41A, this junction box is ideal for various applications requiring dependable and secure electrical connections. Its IP68 rating guarantees complete protection against dust and water, making it perfect for both outdoor and underwater use.

Constructed with a durable Polyamide Pa66 shell, the CNP-725-4T-A features a silicon O-Ring for an airtight seal and #45 steel self-tapping screws for a secure assembly. It is designed to accommodate a wide range of cable types, including waterproof wire connectors for landscape lighting and IP68 electrical connectors, ensuring versatility and ease of use.

Features

● Voltage: 450V AC
● Rated Current: 41A
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Material of shell: Polyamide Pa66
● Waterproof O-Ring :Silicon
● Self-tapping screws :#45 steel

Application

The CNP-725-4T-A is perfect for scenarios requiring vodotesna spojka (waterproof connectors) and IP68 electrical connectors. It provides a professional solution for secure and efficient cable connections in landscape lighting, industrial setups, and other high-moisture environments, ensuring both safety and performance.

Product Approvals

Details
Contact Us

Details

Specifications

Product name	Product type	Inside dimension L x W x D	External dimension A x B x C	Mode of connection
CNP725-2T		78x63x34	138x83x41.3	3-6.5/4-8/7-12
CNP725-3T		78x63x34	138x98x41.3	3-6.5/4-8/7-12
CNP725-4T-A		78x63x34	138x98x41.3	3-6.5/4-8/7-12
CNP725-4T-B		78x63x34	108x111x41.3	3-6.5/4-8/7-12
CNP725-5T		78x63x34	122x111x41.3	3-6.5/4-8/7-12
CNP725-6T		78x63x34	138x111x41.3	3-6.5/4-8/7-12
CNP725 (customized )		78x63x34	108x83x41.3	3-6.5/4-8/7-12
