CNP-725-4T-B Waterproof Junction Box

Home > Waterproof box > Junction Box > CNP-725-4T-B Waterproof Junction Box

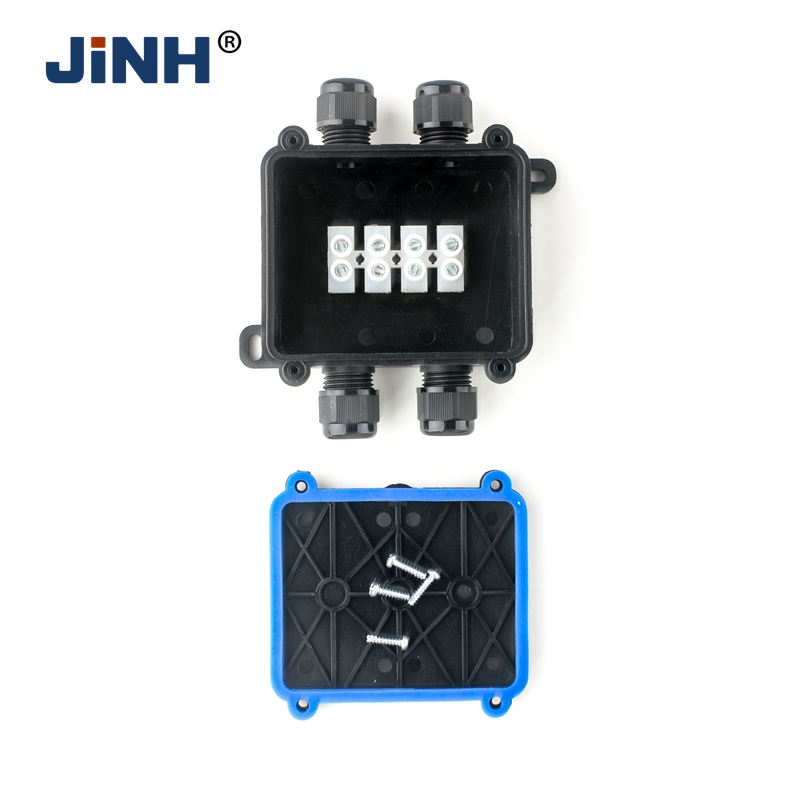

CNP-725-4T-B Waterproof Junction Box

The CNP-725-4T-B Waterproof Junction Box is designed to provide top-tier protection for electrical connections in harsh and wet environments. Rated at 450V AC and 41A, this junction box is a reliable choice for various applications requiring robust and secure electrical connections. With its IP68 rating, the CNP-725-4T-B ensures complete protection against dust and water, making it ideal for both outdoor and underwater use.

This junction box features a rugged Polyamide Pa66 shell, a silicon O-Ring for an airtight seal, and #45 steel self-tapping screws to ensure a secure assembly. It is perfectly suited for weatherproof electrical wire connectors and waterproof inline connectors, providing flexibility and reliability for your most demanding projects.

Features

● Voltage: 450V AC
● Rated Current: 41A
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Material of shell: Polyamide Pa66
● Waterproof O-Ring :Silicon
● Self-tapping screws :#45 steel

Application

The CNP-725-4T-B is perfect for scenarios requiring weatherproof electrical wire connectors and IP68 waterproof connectors. It ensures secure and efficient cable connections in outdoor and underwater environments, making it an excellent choice for landscape lighting, industrial setups, and other high-moisture applications.

Product Approvals

Details
Contact Us

Details

Specifications

Product name	Product type	Inside dimension L x W x D	External dimension A x B x C	Mode of connection
CNP725-2T		78x63x34	138x83x41.3	3-6.5/4-8/7-12
CNP725-3T		78x63x34	138x98x41.3	3-6.5/4-8/7-12
CNP725-4T-A		78x63x34	138x98x41.3	3-6.5/4-8/7-12
CNP725-4T-B		78x63x34	108x111x41.3	3-6.5/4-8/7-12
CNP725-5T		78x63x34	122x111x41.3	3-6.5/4-8/7-12
CNP725-6T		78x63x34	138x111x41.3	3-6.5/4-8/7-12
CNP725 (customized )		78x63x34	108x83x41.3	3-6.5/4-8/7-12
