CNP-725-5T Waterproof Junction Box

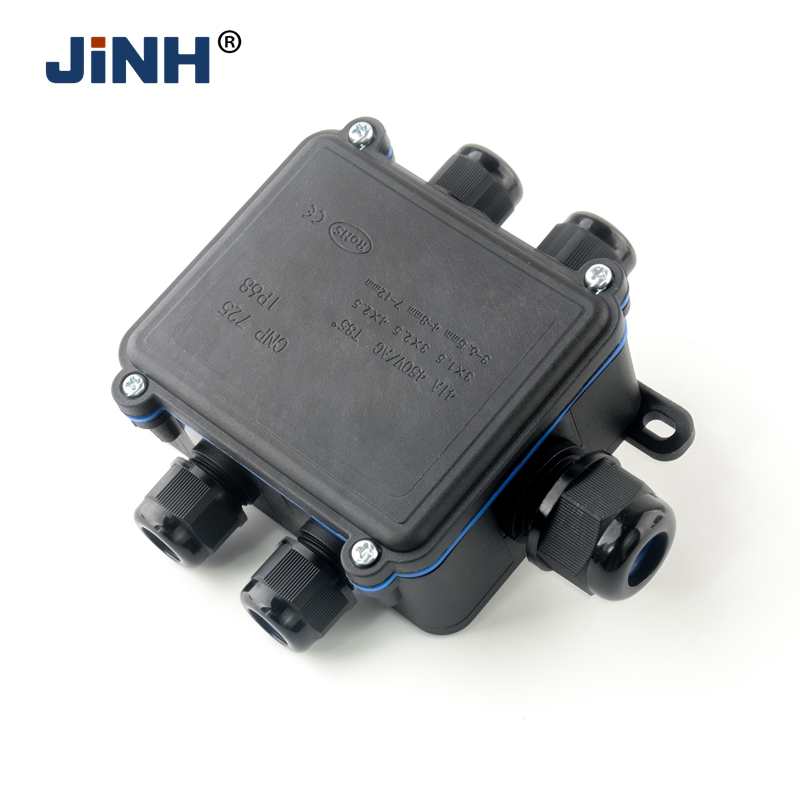

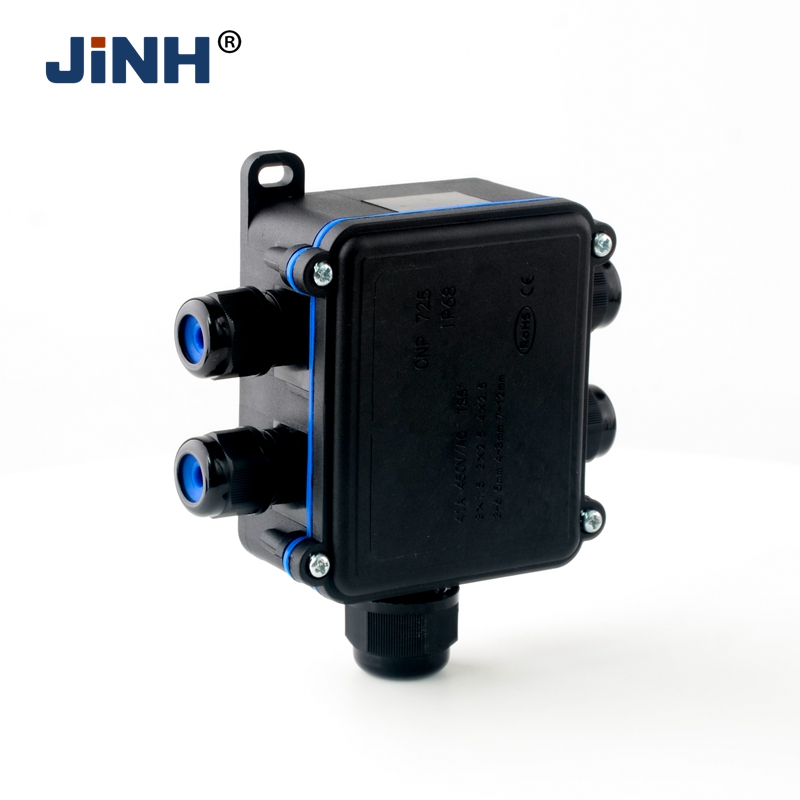

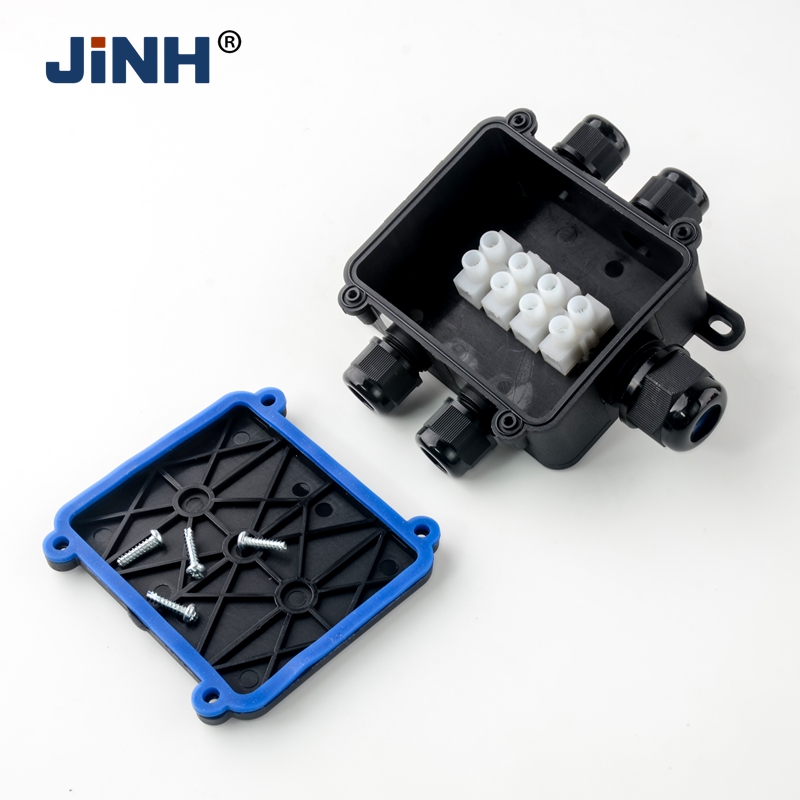

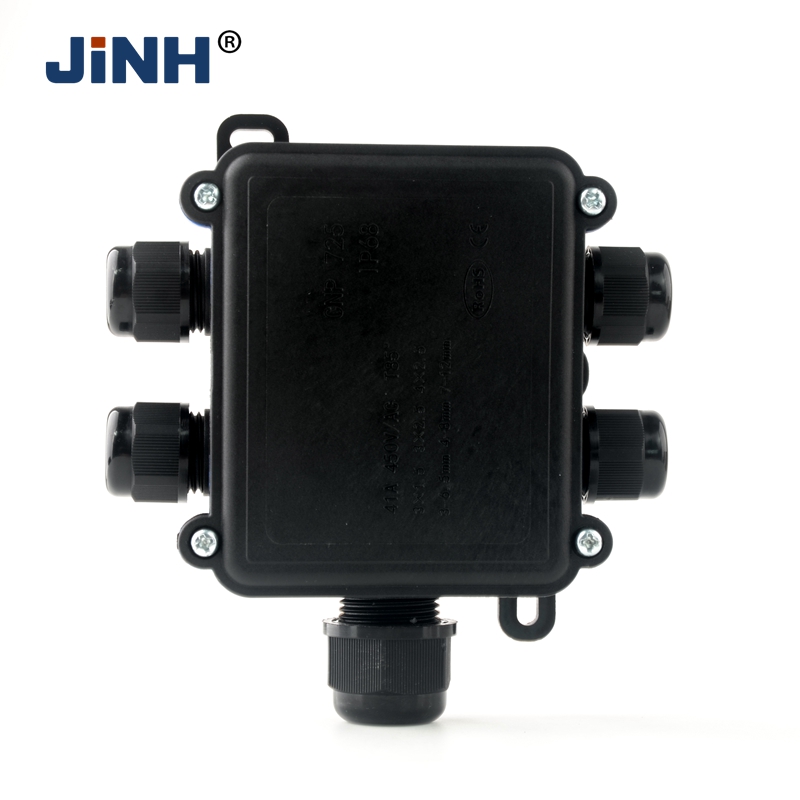

The CNP-725-5T Waterproof Junction Box is engineered to provide superior protection and reliability for electrical connections in demanding environments. Rated for 450V AC and 41A, this junction box is an excellent choice for both industrial and residential applications. Its IP68 rating guarantees complete protection against dust and water, making it ideal for use as an underwater wire connector or in other challenging environments.

This junction box is constructed from robust Polyamide Pa66 material, ensuring durability and longevity. It features a silicon O-Ring for a watertight seal and #45 steel self-tapping screws for secure assembly. The CNP-725-5T is designed to accommodate various cable types, including waterproof inline connectors and IP68 wire connectors, providing versatility and ease of use.

Features

● Voltage: 450V AC
● Rated Current: 41A
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Material of shell: Polyamide Pa66
● Waterproof O-Ring :Silicon
● Self-tapping screws :#45 steel

Application

Ideal for waterproof wire connectors, the CNP-725-5T ensures secure and efficient cable connections in underwater and outdoor settings. Whether you need to protect connections in landscape lighting, industrial setups, or other high-moisture environments, this junction box offers a dependable and professional solution.

Product Approvals

Details
Contact Us

Details

Specifications

Product name	Product type	Inside dimension L x W x D	External dimension A x B x C	Mode of connection
CNP725-2T		78x63x34	138x83x41.3	3-6.5/4-8/7-12
CNP725-3T		78x63x34	138x98x41.3	3-6.5/4-8/7-12
CNP725-4T-A		78x63x34	138x98x41.3	3-6.5/4-8/7-12
CNP725-4T-B		78x63x34	108x111x41.3	3-6.5/4-8/7-12
CNP725-5T		78x63x34	122x111x41.3	3-6.5/4-8/7-12

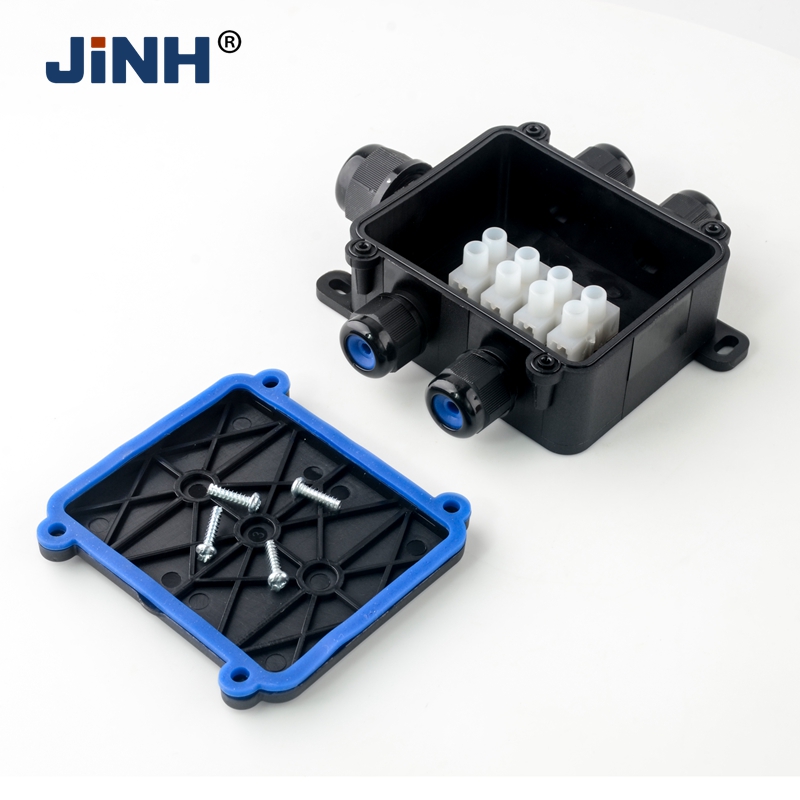

CNP725-6T		78x63x34	138x111x41.3	3-6.5/4-8/7-12
CNP725 (customized )		78x63x34	108x83x41.3	3-6.5/4-8/7-12
