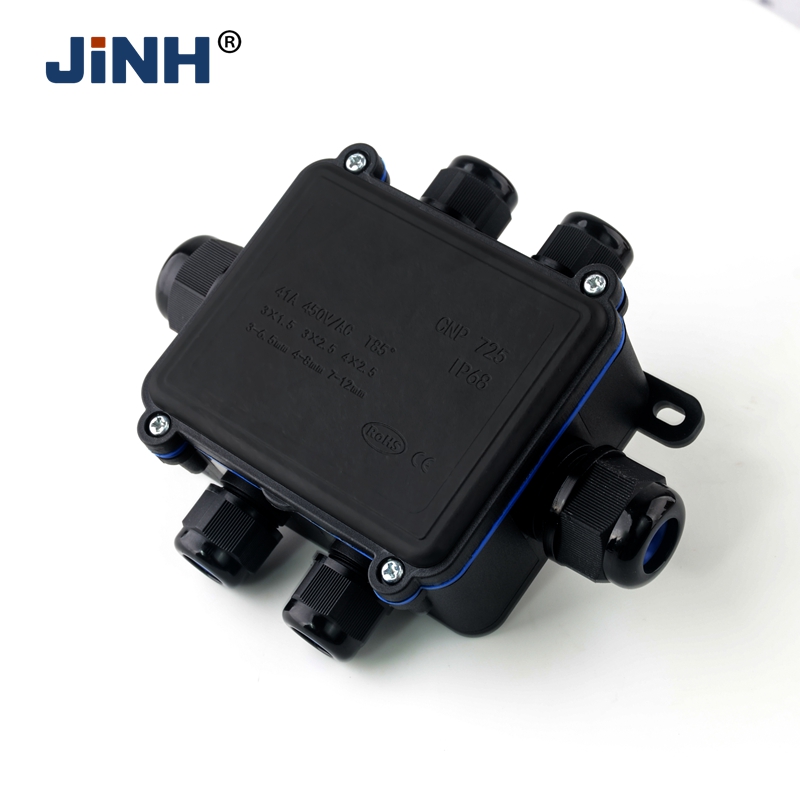

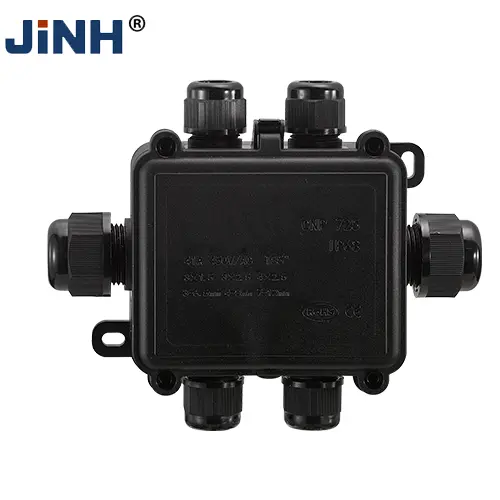

CNP-725-6T Waterproof Junction Box

The CNP-725-6T Waterproof Junction Box is a high-performance solution designed to meet the demanding requirements of electrical installations in harsh environments. Featuring a voltage rating of 450V AC and a rated current of 41A, this junction box ensures reliable and safe electrical connections. With an IP68 rating, it provides exceptional protection against dust and water, making it ideal for outdoor and underwater applications.

Constructed from durable Polyamide Pa66, the CNP-725-6T comes equipped with a silicon O-Ring for an airtight seal and #45 steel self-tapping screws to ensure robust assembly. This junction box supports a wide range of applications, from landscape lighting to industrial setups, thanks to its impressive temperature tolerance from -40°C to +85°C.

Features

● Voltage: 450V AC
● Rated Current: 41A
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Material of shell: Polyamide Pa66
● Waterproof O-Ring :Silicon
● Self-tapping screws :#45 steel

Application

The CNP-725-6T is perfect for scenarios requiring complete submersion, offering a professional solution for secure cable connections. It’s particularly well-suited for waterproof landscape lighting connectors, ensuring both efficiency and safety in various environmental conditions.

Product Approvals

Details
Contact Us

Details

Specifications

Product name	Product type	Inside dimension L x W x D	External dimension A x B x C	Mode of connection
CNP725-2T		78x63x34	138x83x41.3	3-6.5/4-8/7-12
CNP725-3T		78x63x34	138x98x41.3	3-6.5/4-8/7-12
CNP725-4T-A		78x63x34	138x98x41.3	3-6.5/4-8/7-12
CNP725-4T-B		78x63x34	108x111x41.3	3-6.5/4-8/7-12
CNP725-5T		78x63x34	122x111x41.3	3-6.5/4-8/7-12
CNP725-6T		78x63x34	138x111x41.3	3-6.5/4-8/7-12
CNP725 (customized )		78x63x34	108x83x41.3	3-6.5/4-8/7-12
