CNP263 ip68 Waterproof Connector

Home > Waterproof Connector > CNP263 ip68 Waterproof Connector

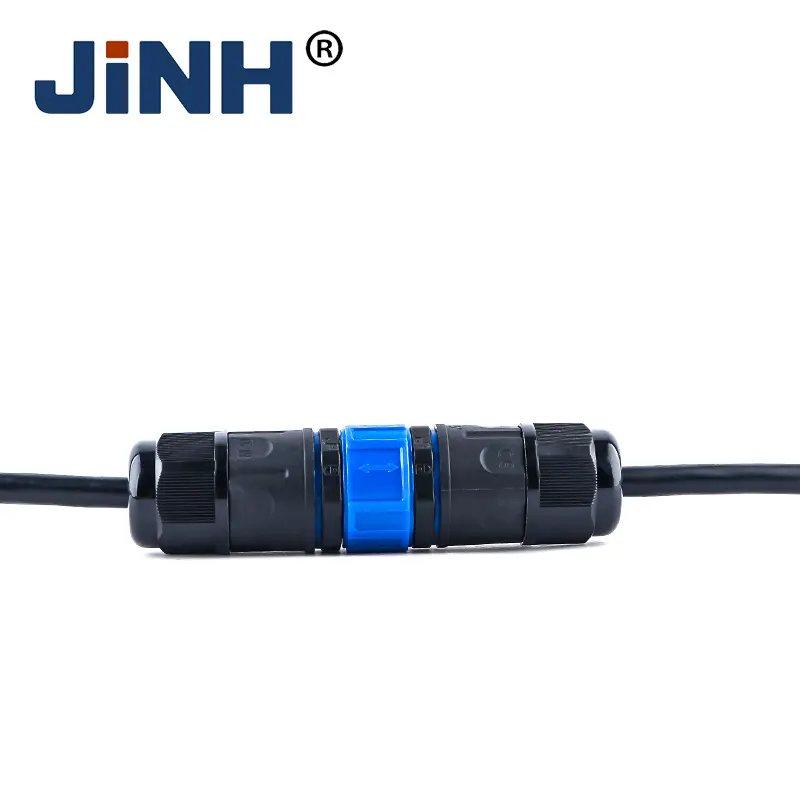

CNP263 ip68 Waterproof Connector

The CNP263 ip68 Waterproof Connector is a good choice for those in need of a reliable and durable waterproof connector. With a voltage range of 250-450V AC and a rated current of 16A, this connector can handle tough conditions without compromising performance.

Made with high-quality materials such as Polyamide PA66 for the connector shell and copper for conductive parts, you can trust that this IP68-rated connector will stand the test of time. Easy to use with its screwless connection feature, the CNP263 is perfect for every application where water resistance is essential.

Features

● Voltage: 250-450V AC
● Rated Current: 16A
● Connection Capacity: 0.5-1.5mm²
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68
● Type of connection: Screwless

Material

● Connector Shell: Polyaide PA66
● Conductive Parts: Copper

Product Approvals

Application

The CNP263 IP68 Waterproof Connector is an essential component for various demanding applications where waterproofing and durability are paramount.

In underwater systems, such as those used in marine exploration or aquariums, this connector ensures reliable electrical connectivity even when fully submerged. Its IP68 rating guarantees protection against dust ingress and submersion up to a specified depth, making it suitable for use in diving equipment or underwater lighting systems.

Additionally, in harsh environments like construction sites or agricultural irrigation systems, the CNP263 connector provides a robust and waterproof connection between cables, ensuring uninterrupted power supply and equipment performance.

Details
Contact Us

Details

Specifications

Product Code	Connector type	No.of circuits	Volt(V)	Ampere(A)	Connection wire mm	Into the scope ofline
CNP263		2P	250-450V	16A	0.5→1.5	Ф5→Ф10mm
CNP263		3P	250-450V	16A		Ф5→Ф10mm
CNP265		2P	250-450V	16A		Ф6→Ф11mm
CNP265		3P	250-450V	16A		Ф6→Ф11mm
