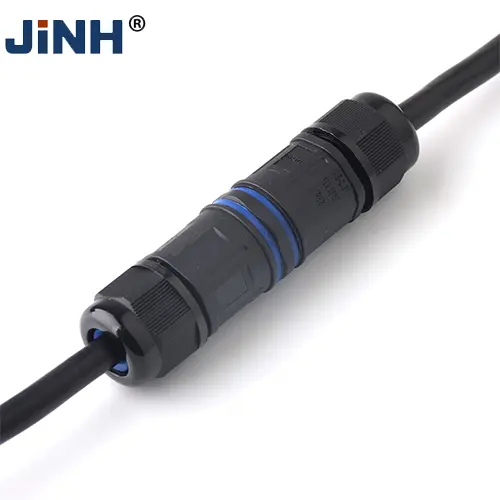

CNP275 Outdoor Waterproof Electrical Connectors

The CNP275 Outdoor Waterproof Electrical Connectors are designed to provide a secure and waterproof connection for your electrical wiring needs. With a voltage range of 250-450V AC and a current rating of 16A, these connectors are ideal for a wide range of applications.

The IP68 rating ensures durability in any environment. Made with high-quality Polyamide PA66 connector shells and copper conductive parts, it can withstand temperatures from -40°C to 85°C. It is ideal for outdoor or wet environments.

Features

● Voltage: 250-450V AC
● Rated Current: 16A
● Connection Capacity: 0.5-2.5mm²
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Connector Shell: Polyaide PA66
● Conductive Parts: Copper

Product Approvals

4 1

Application

The CNP275 Outdoor Waterproof Electrical Connectors are indispensable for a range of outdoor applications.

In maritime environments, they enable reliable cable connections between navigational equipment and power sources, even during inclement weather and heavy sea states.

In flood-prone areas, these connectors are essential for powering pumps and emergency equipment, ensuring uninterrupted power supply in case of flooding. The robust waterproof design makes them a suitable choice for outdoor lighting systems, where cables need to be safely connected to power grids, even in areas prone to rain and snow.

In construction sites and agricultural fields, where cables are often exposed to moisture and harsh weather conditions, the CNP275 connectors offer a reliable and convenient solution for power transmission.

They are also widely used in waterparks and swimming pools, where electrical equipment needs to be safely connected underwater, ensuring the safety of visitors and equipment.

Specifications

Product Code Connector type No.of circuits Volt(V) Ampere(A) Connection wire
mm²
Into the scope of line
CNP273-2P CNP273 2P 250-450V 16A 0.5→2.5 Ф5→Ф10mm
CNP273-3P 3P 250-450V 16A
CNP275-3P CNP275-3P 3P 250-450V 16A 0.5→2.5 Ф5→Ф10mm
CNP275-4P 4P 250-450V 16A
CNP275-5P 5P 250-450V 16A

Download

CNP275 Outdoor Waterproof Electrical Connectors Structure diagram
Structure diagram CNP275 Outdoor Waterproof Electrical Connectors
