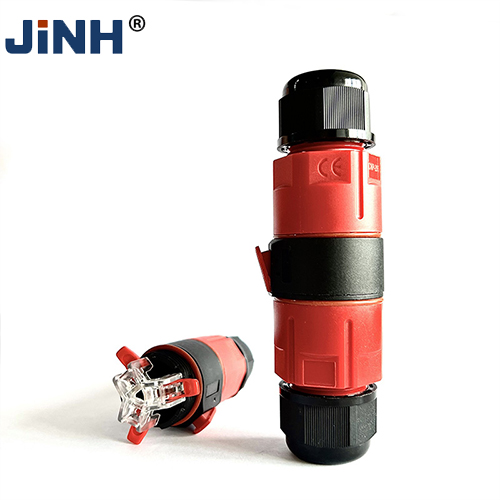

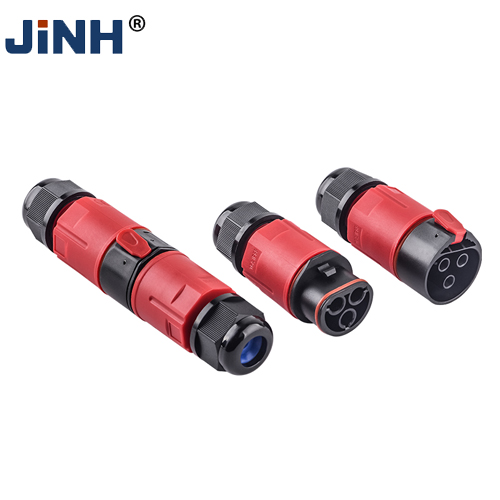

CNP293 Waterproof Electrical Wire Connectors

Introducing CNP293 Waterproof Electrical Wire Connectors, the perfect solution for all your electrical connection needs. With a voltage range of 250-450V AC and a rated current of 16A, these connectors are designed to handle tough conditions. The screwless type of connection makes installation a breeze, while the IP68 protection rate ensures durability and reliability.

Made with a high-quality Polyamide PA66 connector shell and copper conductive parts, you can trust CNP293 to provide a secure and lasting electrical connection. Say goodbye to worries about water damage or exposure to extreme temperatures with CNP293 Waterproof Electrical Wire Connectors.

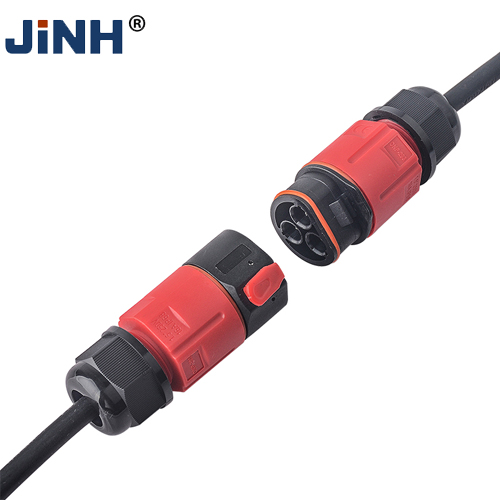

CNP293 Waterproof Electrical Wire Connector

Features

● Voltage: 250-450V AC
● Rated Current: 16A
● Connection Capacity: 0.5-1.5mm²
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68
● Type of connection: Screwless

Material

● Connector Shell: Polyaide PA66
● Conductive Parts: Copper

Product Approvals

Application

The CNP293 Waterproof Electrical Wire Connectors are essential in outdoor lighting systems.

In a city park, these connectors protect the electrical connections of the streetlights from rain and snow. This ensures that the lights remain operational throughout the year, providing safety and visibility for pedestrians and vehicles.

In agricultural applications, the CNP293 connectors are found in irrigation systems. They are used to connect the pumps, valves, and sensors that control the flow of water to the crops. The waterproof design ensures that the connections remain secure and functional, even when the soil is damp or wet. This helps maintain the efficiency of the irrigation system and ensures that the crops receive the necessary water supply.

Details

Specifications

Product Code	Connector type	No.of circuits	Volt(V)	Ampere(A)	Connection wire mm	Into the scope ofline
CNP293		3P	250-450V	16A	0.5→1.5	Ф6→Ф11mm
CNP295		5P	250-450V	16A
CNP293N		3P	250-450V	16A
CNP295N		5P	250-450V	16A
CNP293X		3P	250-450V	16A
CNP295X		5P	250-450V	16A
