CNP293X Waterproof Submersible Electrical Connectors

Introducing CNP293X Waterproof Submersible Electrical Connectors, the ideal solution for any application that requires reliable electrical connections even in harsh environments. These connectors are designed to withstand extreme conditions, with a voltage range of 250-450V AC and a working temperature of -40°C to 85°C.

With a high protection rate of IP68, you can trust these connectors to keep your electrical connections safe and secure even when submerged underwater. The screwless design makes installation quick and easy, while the durable construction using Polyamide PA66 connector shell and copper conductive parts ensures long-lasting performance. Upgrade your electrical systems with CNP293X Waterproof Submersible Electrical Connectors today!

Features

● Voltage: 250-450V AC
● Rated Current: 16A
● Connection Capacity: 0.5-1.5mm²
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68
● Type of connection: Screwless

Material

● Connector Shell: Polyaide PA66
● Conductive Parts: Copper

Product Approvals

4 1

Application

The CNP293X Waterproof Submersible Electrical Connectors are a robust solution for underwater applications.

In submarine exploration missions, these connectors are crucial for maintaining stable data transmission and power supply to submersibles and underwater robots. Their waterproof design ensures that even at great depths, the electrical connections remain unaffected by the pressure and moisture.

Additionally, offshore oil rigs rely on these connectors to power and control critical equipment. In harsh marine environments, the CNP293X connectors provide a reliable link between surface facilities and subsea equipment, enabling the safe and efficient extraction of oil and gas. They are also found in underwater scientific research stations, where they facilitate the transmission of data from sensors and instruments to researchers on the surface.

Specifications

Product Code Connector type No.of circuits Volt(V) Ampere(A) Connection wire
mm
Into the scope ofline
CNP293 CNP293 3P 250-450V 16A 0.5→1.5 Ф6→Ф11mm
CNP295 CNP295 5P 250-450V 16A
CNP293N CNP293N 3P 250-450V 16A
CNP295N CNP295N 5P 250-450V 16A
CNP293X CNP293X 3P 250-450V 16A
CNP295X CNP295X 5P 250-450V 16A

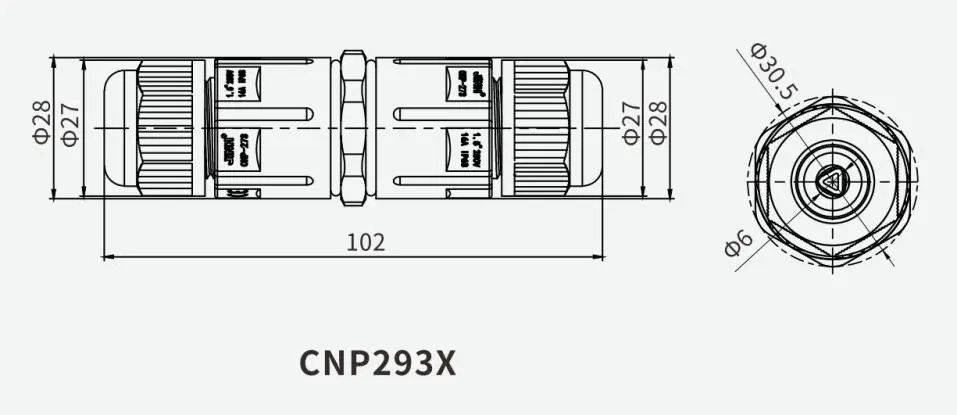

CNP293X Structure diagram
