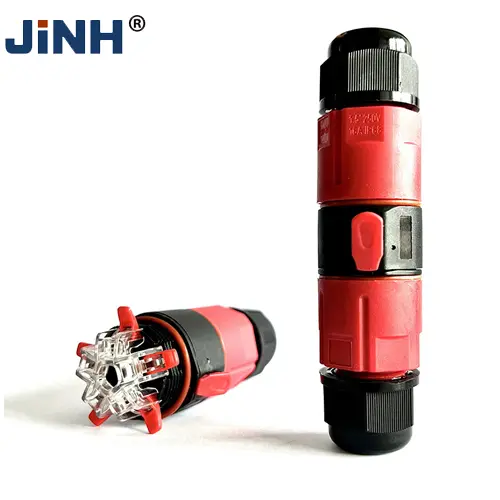

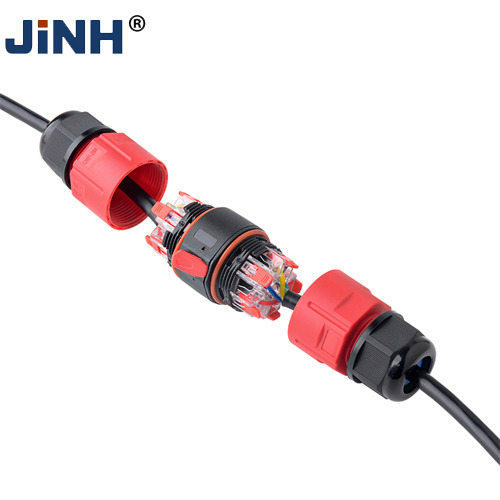

CNP295 waterproof cable connector

The CNP295 Weatherproof Electrical Connectors are the perfect solution for your outdoor electrical needs. With a voltage range of 250-450V AC and a high protection rate of IP68, these waterproof cable connectors are ideal for any environment. Made with a durable Polyamide PA66 connector shell and conductive copper parts, these connectors are built to last.

The screwless type of connection makes installation quick and easy. With a working temperature range of -40°C to 85°C, you can trust that these connectors will perform reliably in any weather conditions. Perfect for outdoor lighting, landscaping, or any other application where moisture is a concern.

Features

● Voltage: 250-450V AC
● Rated Current: 16A
● Connection Capacity: 0.5-1.5mm²
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68
● Type of connection: Screwless

Material

● Connector Shell: Polyaide PA66
● Conductive Parts: Copper

Product Approvals

4 1

Application

The CNP295 Weatherproof Electrical Connectors are highly specialized tools that cater to a range of demanding applications where cable connections must be both safe and reliable, even under conditions of complete submersion.

These waterproof cable connectors are ideal for use in outdoor environments where cables are exposed to moisture, rain, or even direct submersion in water. Their weatherproof design ensures that the connections remain secure and unharmed, minimizing the risk of short circuits or electrical malfunctions. This makes them an excellent choice for marine applications such as boats, yachts, and even submarines, where reliable electrical connections are crucial for safety and operational efficiency.

Additionally, they are also suitable for use in irrigation systems, pool and spa wiring, as well as in outdoor lighting fixtures and garden decorations, where they provide a robust and long-lasting solution for connecting cables in wet or damp conditions.

Specifications

Product Code Connector type No.of circuits Volt(V) Ampere(A) Connection wire
mm
Into the scope ofline
CNP293 CNP293 3P 250-450V 16A 0.5→1.5 Ф6→Ф11mm
CNP295 CNP295 5P 250-450V 16A
CNP293N CNP293N 3P 250-450V 16A
CNP295N CNP295N 5P 250-450V 16A
CNP293X CNP293X 3P 250-450V 16A
CNP295X CNP295X 5P 250-450V 16A
