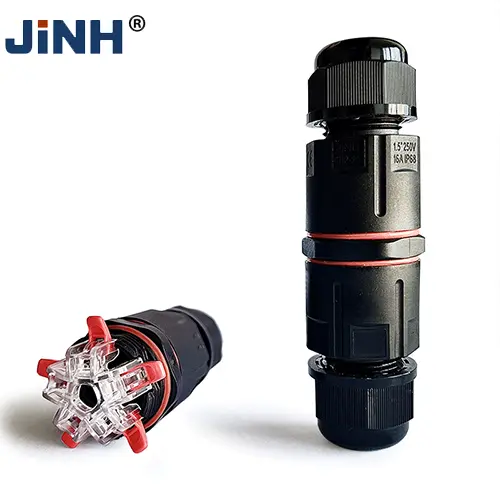

CNP295X waterproof outdoor electrical connector

The CNP295X Waterproof Outdoor Electrical Connectors stand as a robust and enduring solution for all outdoor electrical demands. Boasting a voltage range of 250-450V AC and a rated current capacity of 16A, they are resilient even in the harshest conditions.

The screwless design facilitates swift and effortless installation, while the IP68 protection rating guarantees complete impermeability to water damage. Constructed from superior materials like Polyamide PA66 shell and copper conductive components, these connectors are destined to last for numerous years, ideal for outdoor lighting systems, irrigation installations, and beyond.

Features

● Voltage: 250-450V AC
● Rated Current: 16A
● Connection Capacity: 0.5-1.5mm²
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68
● Type of connection: Screwless

Material

● Connector Shell: Polyaide PA66
● Conductive Parts: Copper

Product Approvals

Application

The CNP295X Waterproof Outdoor Electrical Connections are designed to cater to the demands of outdoor applications where submersion is an inevitable requirement.

These connectors provide a professional-grade solution, offering not just safety but also convenience in terms of cable connections. Whether it’s a marine environment, offshore installations, or even scientific expeditions, the CNP295X ensures the utmost security of connections, withstanding the rigors of constant exposure to water and varying temperatures.

Details

Specifications

Product Code	Connector type	No.of circuits	Volt(V)	Ampere(A)	Connection wire mm	Into the scope ofline
CNP293		3P	250-450V	16A	0.5→1.5	Ф6→Ф11mm
CNP295		5P	250-450V	16A
CNP293N		3P	250-450V	16A
CNP295N		5P	250-450V	16A
CNP293X		3P	250-450V	16A
CNP295X		5P	250-450V	16A
