CNP3732 Waterproof Landscape Lighting Connectors

The CNP3732 Waterproof Landscape Lighting Connectors is the ultimate solution for all your outdoor lighting needs. Engineered to withstand even the harshest weather conditions, these connectors boast an impressive IP68 waterproof rating. With a voltage range of 250V to 450V AC and a rated current of 16A, they are versatile and suitable for a wide array of landscape lighting applications.

Constructed from premium materials, including Polyaide PA66 for the connector shell and copper for the conductive components, the CNP3732 connectors ensure exceptional durability and performance. You no longer need to worry about adverse weather conditions affecting your outdoor lighting.

Features

● Voltage: 250-450V AC
● Rated Current: 16A
● Connection Capacity: 0.3-2.5mm²
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Connector Shell: Polyaide PA66
● Conductive Parts: Copper

Product Approvals

4 1

Applications

Enhanced Safety in Submerged Environments:

The CNP3732 waterproof connectors are designed to safely handle submerged conditions, protecting against electrical shock or fire hazards. Ideal for outdoor landscape lighting installations near ponds or lakes.

Versatile and Professional Solution:

The CNP3732 Waterproof Landscape Lighting Connector offer a professional, reliable solution for various landscape lighting applications, ensuring secure and efficient cable connections. Easy to install and use for professionals and DIY enthusiasts.

Specifications

Product Code Connector type No.of circuits Volt(V) Ampere(A) Connection wire
mm²
Into the scope of line
CNP373-2P CNP373 2P 250-450V 16A 0.3→1.5 Ф5→Ф10mm
CNP373-3P 3P 250-450V 16A
CNP373-4P 4P 250-450V 16A
CNP374-2P CNP374 2P 250-450V 16A 0.3→1.5 Ф5→Ф10mm
CNP374-3P 3P 250-450V 16A
CNP374-4P 4P 250-450V 16A
CNP3732-2P CNP3732 2P 250-450V 16A 0.3→2.5 Ф6→Ф11mm
CNP3732-3P 3P 250-450V 16A
CNP3732-4P 4P 250-450V 16A
CNP3742-2P CNP3742 2P 250-450V 16A 0.3→2.5 Ф6→Ф11mm
CNP3742-3P 3P 250-450V 16A
CNP3742-4P 4P 250-450V 16A

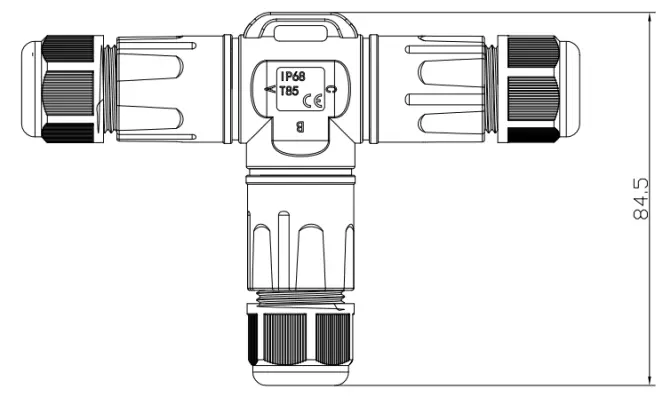

waterproof landscape lighting connectors Structure diagram
Structure diagram CNP3732 Waterproof Landscape Lighting Connectors
CNP3732 Structure diagram
