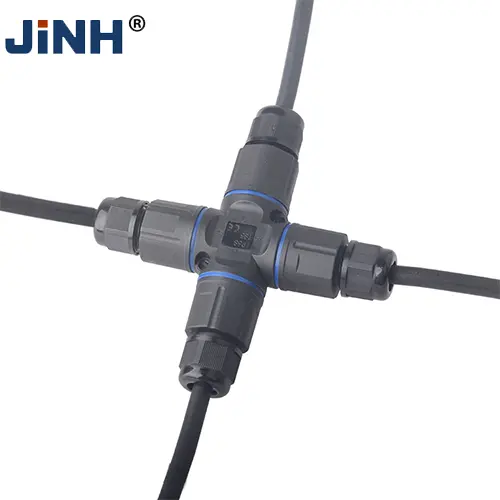

CNP374 outdoor waterproof wire connectors

The CNP374 Outdoor Waterproof Wire Connectors are the ideal choice for secure and reliable cable connections in outdoor environments. With a voltage range of 250-450V AC and a rated current of 16A, these connectors are suitable for wires ranging from 0.3 to 1.5mm².

Constructed with a Polyamide PA66 connector shell and copper conductive parts, they offer an IP68 protection rating and can withstand temperatures ranging from -40°C to 85°C. Whether you’re connecting outdoor lighting, security cameras, or other electrical equipment, the CNP374 connectors provide a professional and long-lasting solution to your wiring requirements.

Features

● Voltage: 250-450V AC
● Rated Current: 16A
● Connection Capacity: 0.3-1.5mm²
● Working Temperature: -40°C to 85°C
● Protection Rate: IP68

Material

● Connector Shell: Polyaide PA66
● Conductive Parts: Copper

Product Approvals

Application

Outdoor Lighting:

Ideal for connecting outdoor lighting fixtures, the CNP374 outdoor waterproof wire connectors ensure secure and reliable connections, even in harsh weather conditions. This allows for consistent and uninterrupted illumination, enhancing the safety and aesthetics of outdoor spaces.

Security Cameras:

When it comes to installing security cameras outdoors, the CNP374 connectors provide a robust and weatherproof solution. They ensure that camera connections are not affected by moisture or other environmental factors, ensuring continuous monitoring and protection.

Details

Specifications

Product Code	Connector type	No.of circuits	Volt(V)	Ampere(A)	Connection wire mm²	Into the scope of line
CNP373-2P		2P	250-450V	16A	0.3→1.5	Ф5→Ф10mm
CNP373-3P		3P	250-450V	16A
CNP373-4P		4P	250-450V	16A
CNP374-2P		2P	250-450V	16A	0.3→1.5	Ф5→Ф10mm
CNP374-3P		3P	250-450V	16A
CNP374-4P		4P	250-450V	16A
CNP3732-2P		2P	250-450V	16A	0.3→2.5	Ф6→Ф11mm
CNP3732-3P		3P	250-450V	16A
CNP3732-4P		4P	250-450V	16A
CNP3742-2P		2P	250-450V	16A	0.3→2.5	Ф6→Ф11mm
CNP3742-3P		3P	250-450V	16A
CNP3742-4P		4P	250-450V	16A
