Home > Terminals > Insulated Terminal > Fully vinyl insulated disconnects

Fully vinyl insulated disconnects

Fully vinyl insulated disconnects are essential electrical components known for their outstanding electrical safety and reliability. These disconnects are characterized by their use of high-quality plastic materials for insulation, providing features such as corrosion resistance, lightweight design, and low maintenance requirements.

They find wide applications in electrical control panels, power distribution systems, industrial automation, renewable energy systems, and more, ensuring the secure operation of circuits and equipment. As technology continues to advance, fully vinyl insulated disconnects will continue to evolve to meet the evolving electrical needs.

Features

● Voltage: 300V
● Rated Current: 10A
● Working Temperature(PP): -30°C~105℃

Material

● Material: Brass
● Insulating material: PP nylon (colors)

Application

Fully vinyl insulated disconnects find wide applications in various electrical fields, including electrical control panels, power distribution systems, industrial automation, renewable energy systems, and the chemical industry. They ensure the secure operation of circuits and equipment, playing a crucial role in providing electrical safety and system control in these applications.

Product Approvals

4 1

Specifications

Item No. Name tab (mm) Dimension Color
W (mm) B (mm) DФ (mm) dФ (mm) L (mm)
FDFD1.25-187(5) 0.5*4.75 5.6 5 3.8 1.7 20 Red
FDFD1.25-187(8) 0.8*4.75 5.6 5 3.8 1.7 20
FDFD1.25-250 0.8*6.35 7.4 6.6 3.8 1.7 21.5
FDFD2-187(5) 0.5*4.75 5.6 5 4.3 2.3 20 Blue
FDFD2-187(8) 0.8*4.75 5.6 5 4.3 2.3 20
FDFD2-250 0.8*6.35 7.4 6.6 4.3 2.3 21.5
FDFD5.5-250 0.8*6.35 7.4 6.6 5.7 3.4 25.5 Yellow

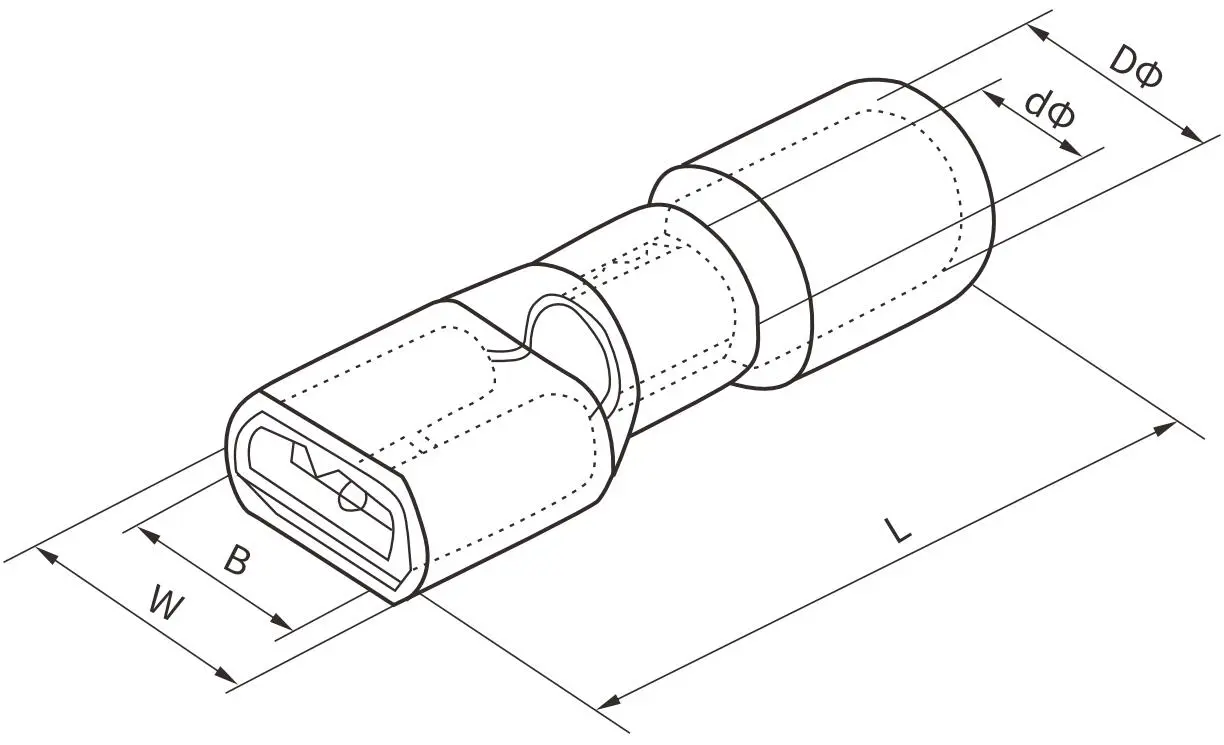

Structure diagram 21
