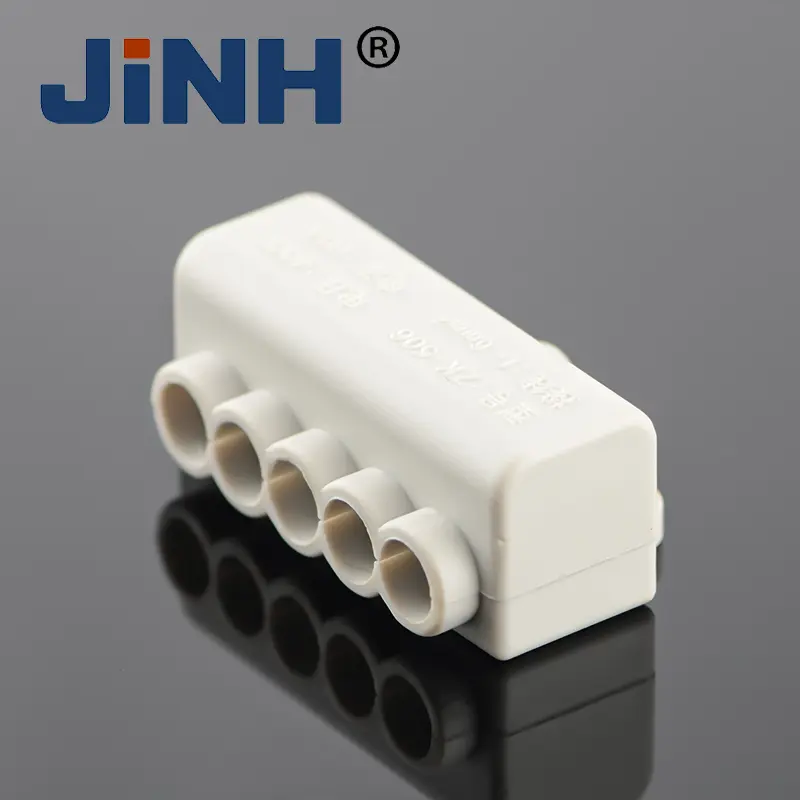

JH-M506 Branch Cable Clamp Connector

The Branch Cable Clamp Connector is a compact, high-density connection solution designed for efficient power distribution in control panels and industrial wiring systems. Featuring spring-clamp or screw-type termination (compatible with 0.5–10mm² wires).Its PA flame-retardant housing (UL94 V0) and tin-plated copper alloy conductors ensure 600V/32A rated performance in -40°C-85°C environments.

The Branch Cable Clamp Connector its screw terminals and modular design make installation quick and efficient, while its resistance to moisture and corrosion ensures long-term performance in harsh environments.

Features

● Voltage: 400V
● Rated Current: 60A
● Installation method: Bolt fixed installation
● Working Temperature(PE):-40°C-85°C

Material

● Material:PA
● Metal material:Brass
● Type:M-type
● Model Number:JH-M506

Application

This Branch Cable Clamp Connector serves as a critical component in industrial power distribution systems, enabling secure multi-circuit branching for control panels, motor starter assemblies, and renewable energy installations. The Branch Cable Clamp Connector its screw-type clamping mechanism ensures vibration-resistant connections in harsh environments like mining equipment, manufacturing plants, and solar farm combiner boxes. The PA flame-retardant housing and Brass conductors provide reliable performance across -40°C-85°C operating ranges, making it indispensable for HVAC systems, conveyor controls, and heavy machinery requiring durable, maintenance-free power splitting.

Product Approvals

Details
Contact Us

Details

Specifications

Product Code	Connection Wire	Amp(A)	Volt(V)	L(mm)	W(mm)	H(mm)
JH-T06	0.5-6mm²	60	400	24	11	15
JH-T16	1-6mm²	60	400	30	12.5	20
JH-M206	0.5-6mm²	60	400	20.8	13	15
JH-M306	0.5-6mm²	60	400	23.5	13	15
JH-M306	0.5-6mm²	60	400	23.5	13	15
JH-M316	2.5-16mm²	80	400	32.5	21	20
JH-M406	0.5-6mm²	60	400	29.5	21	15
JH-M506	1-6mm²	60	400	35.5	13	15
JH-M516	2.5-16mm²	80	1000	50	21	20
JH-1306	1-6mm²	60	400	41	26	15
JH-1306	1-6mm²	60	400	26	16.5	15
JH-0612L	1-6mm²	60	400	33	15	17.5
JH-0612R	1-6mm²	60	400	33	20	17.5
JH-0613L	1-6mm²	60	400	33	15	17.5
JH-0613R	1-6mm²	60	400	33	26.8	17
