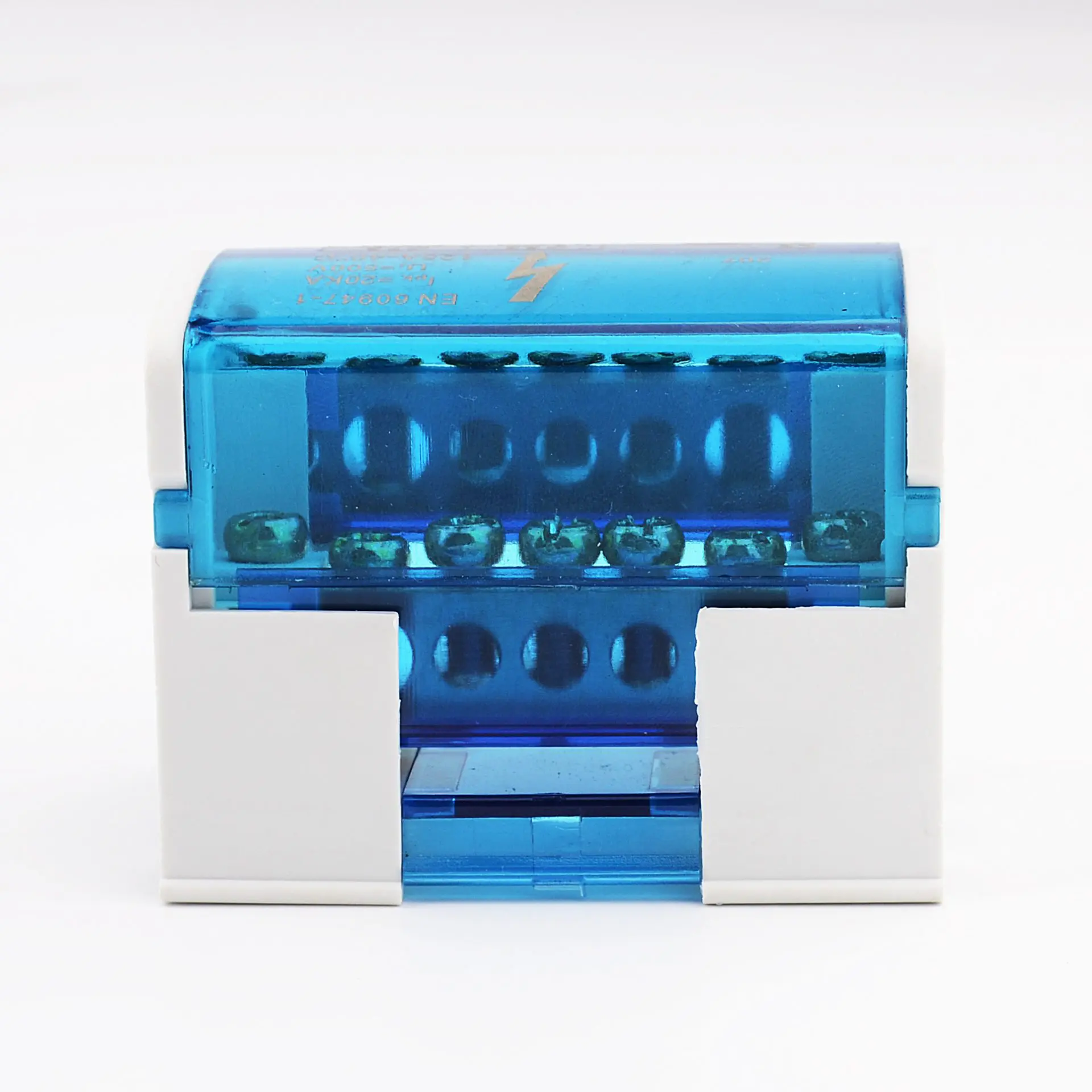

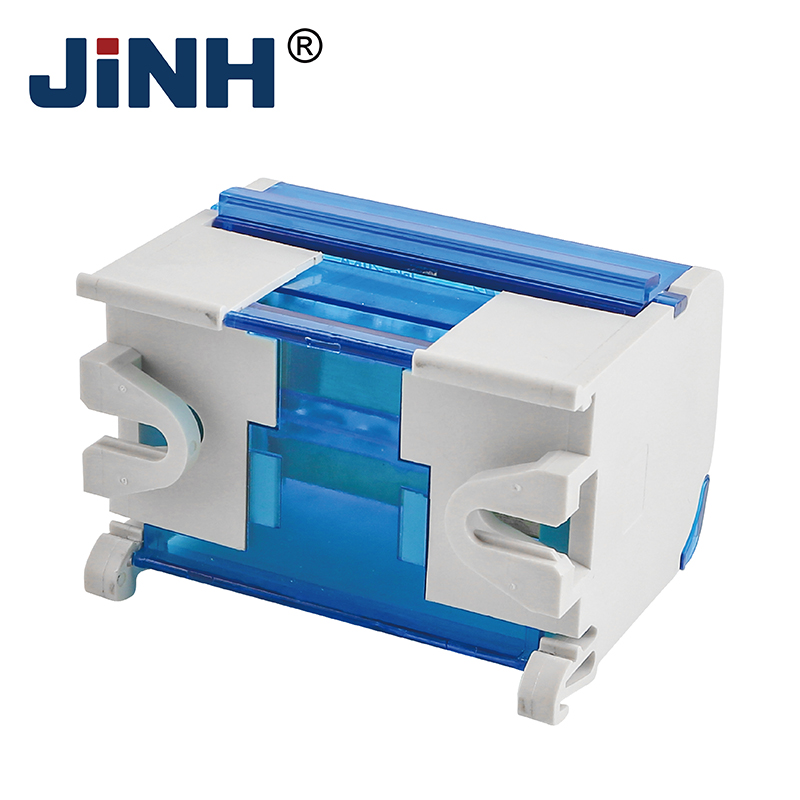

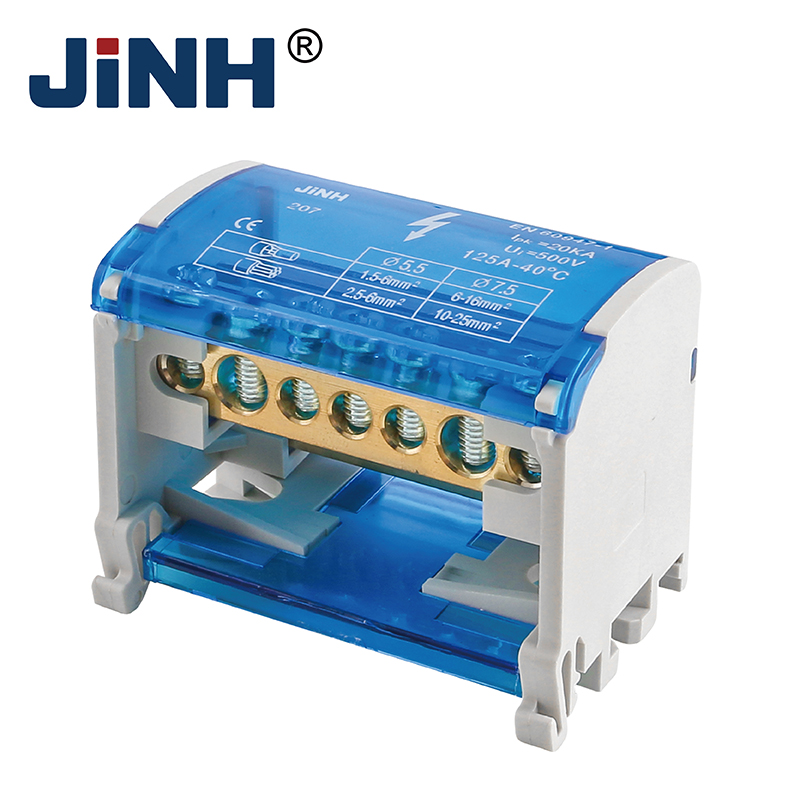

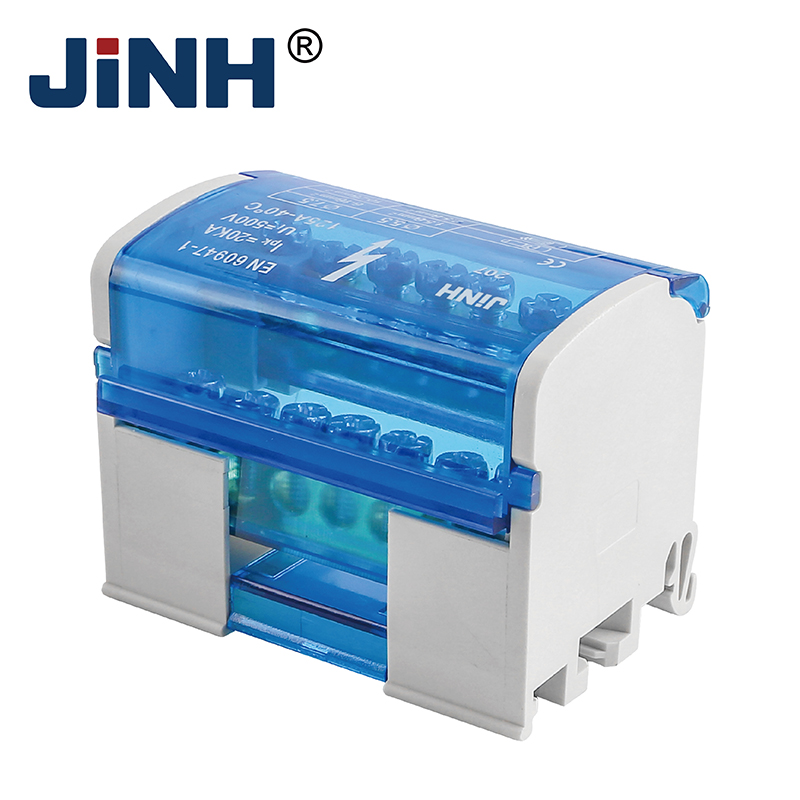

The JH8207 distribution junction box is the ideal choice for self-built stations, featuring high voltage capacity (500V), a rated current of 125A, and durable materials, including a nylon shell, polycarbonate transparent components, brass conductors, and robust 45# steel screws, ensuring reliable power distribution and cable connections for the station. Its transparent cover design and wide operating temperature range (-40°C to 80°C) enhance operational convenience and maintenance ease at the site.
Features
● Voltage: 500V
● Rated Current: 125A
● Working Temperature:-40°C to 80°C
● The transparent cover is good to see if the cable is in a reliable connection
Material
● Plastic shell: PA (nylon white)
● Plastic cover/partition: PC(transparent blue)
● Conductor: H54 brass
● Screws: 45# steel
Application
The distribution junction box plays a crucial role in various applications, including solar and wind energy sites, industrial factories, and temporary construction sites, ensuring the reliability of power distribution and connections while enhancing operational efficiency and safety.
Product Approvals
Specifications
| Item No. | Bus bar spec. | No. of Bus Bar | Product type | Conductor connection range (flexible wire mm2) |
Conductor connection range (rigid wire mm²) |
Dimensions (L x W x H)(mm) |
| JH8207 | 5xФ5.5mm 2xФ7.5mm |
2 |  |
1.5 to 6 6 to 16 |
2.5 to 6 10 to 25 |
65x42x50 |
| JH8211 | 7xФ5.5mm 2xФ7.5mm 2xф9mm |
2 |  |
1.5 to 6 6 to 16 10 to 16 |
2.5 to 6 10 to 2510 to 35 |
100x42x50 |
| JH8215 | 11xФ5.5mm 2xф7.5mm 2xф9mm |
2 |  |
1.5 to 6 6 to 16 10 to 16 |
2.5 to 6 10to 25 10 to 35 |
135x42x50 |
| JH8404 | 4xФ6mm | 4 |  |
1.5 to 6 | 2.5 to 6 | 43x85x50 |
| JH8407 | 5xФ5.5mm 2xФ7.5mm |
4 |  |
1.5 to 6 6 to 16 |
2.5 to 6 10 to 25 |
65x85x50 |
| JH8411 | 7xФ5.5mm 2xф7.5mm 2xФ9mm |
4 |  |
1.5 to 6 6 to 16 10 to 16 |
2.5 to 6 10 to 25 10 to 35 |
100x85x50 |
| JH8415 | 11xФ5.5mm 2×7.5Фmm 2xф9mm |
4 |  |
1.5 to 6 6 to 16 10 to 16 |
2.5 to 6 10 to 25 10 to 35 |
135x85x50 |
