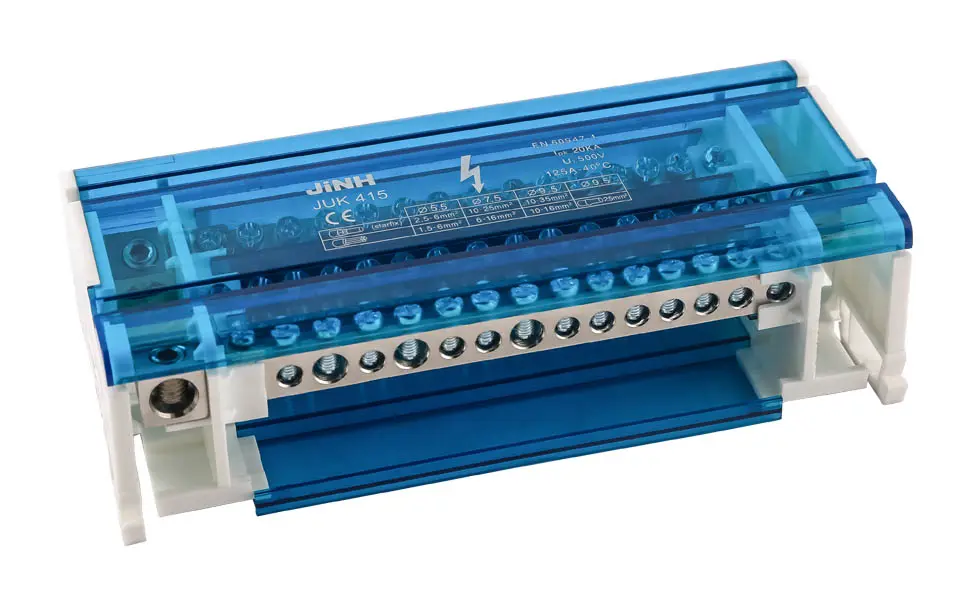

JUK415 High-Performance Terminal Distribution Box

The JUK415 High-Performance Terminal Distribution Box is built for demanding power distribution systems, designed to handle larger wire diameters with enhanced nickel-plated copper conductors for superior corrosion resistance. Featuring a high voltage capacity of 500V and a rated current of 125A, it ensures stable and safe performance in high-power applications.

Constructed with durable materials, including a nylon shell, polycarbonate transparent components, and 45# steel screws, the JUK415 provides exceptional durability and protection. The transparent cover allows for easy inspection and maintenance, improving operational efficiency and safety. Ideal for extreme climates, this distribution box is perfect for self-built stations and challenging environments.

Features

● Voltage: 500V
● Rated Current: 125A
● Working Temperature: -40°C to 80°C
● The transparent cover is good to see if the cable is in a reliable connection

Material

● Plastic shell: PA (nylon white)
● Plastic cover/partition: PC
● Conductor: Nickel plated copper
● Screws: 45# steel

Application

The distribution junction box plays a crucial role in various applications, including solar and wind energy sites, industrial factories, and temporary construction sites, ensuring the reliability of power distribution and connections while enhancing operational efficiency and safety.

Product Approvals

Details
Contact Us

Details

Specifications

Item No.	Bus bar spec.	No. of Bus Bar	Product Type	Conductor connection range (flexible wire mm²)	Conductor connection range (rigid wire mm²)	Dimensions (mm)
JUK207(125A)	5xФ5.5mm 1xФ7.5mm 1xФ9.5mm	2		10 to 25 0.75 to 4 1.5 to 6	10 to 35 1.5 to 4 2.5 to 6	95×47.5X50
JUK407(125A)	5xФ5.5mm 1xФ7.5mm 1xФ9.5mm	4		10 to 25 0.75 to 4 1.5 to 6	10 to 35 1.5 to 4 2.5 to 6	109X90X50
JUK411(125A)	5xФ5.5mm 1xФ7.5mm 1xФ9.5mm	4		10 to 25 0.75 to 4 1.5 to 6	10 to 35 1.5 to 4 2.5 to 6	147X90X50
JUK412(125A)	8xФ7mm 3xФ8.5mm 1xФ11.5mm	4		10 to 50 210 to 25 1.5 to 16	10 to 50 210 to 35 2.5 to 16	170x90X70
JUK415(125A)	11xФ5.5mm 3xФ7.5mm 1xФ9.5mm	4		10 to 25 0.75 to 4 1.5 to 6	10 to 35 1.5 to 4 2.5 to 6	182X90X50
