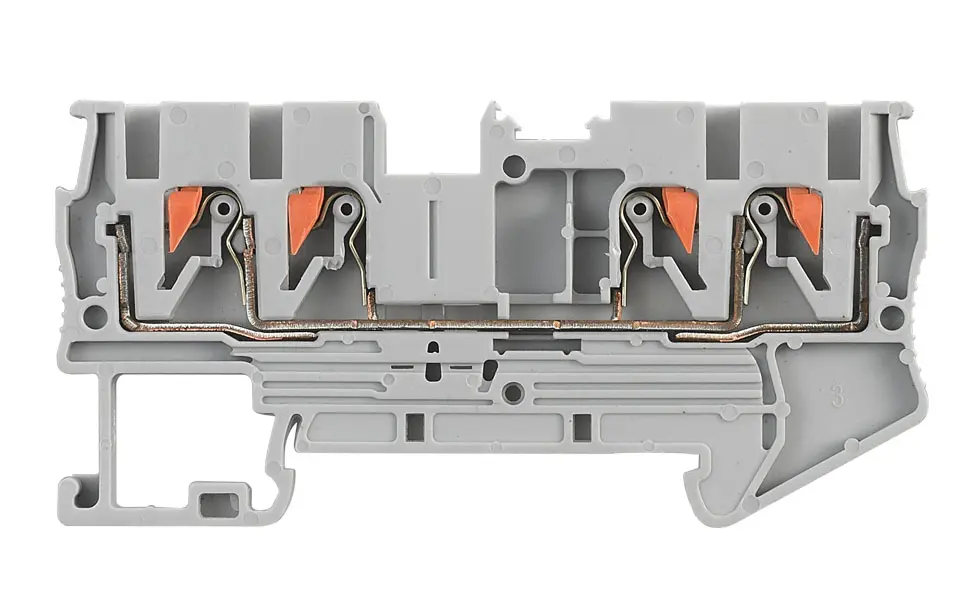

PT-1.5QT Push-in Terminal Block

The PT series terminal block adopts innovative direct insertion connection technology, which allows for quick and easy wiring without the need for tools, making it suitable for various occasions. This series of products offers multiple specifications and models to meet the needs of different cross-sections and voltage levels.

They use sturdy polyamide shells and copper alloy contacts to ensure durability and electrical performance. PT-1.5QT is a two-in-two-out terminal block that saves space and improves efficiency.

Features

● Voltage: 500V
● Rated Current: 17.5A
● Mounting type: TH35/7.5 DIN rail
● Type of connection: Pus-in
● Working Temperature(PP): -50°C~100℃

Material

● Connector Shell: PA
● Conductive Parts: Copper

Application

The PT series is mainly used in industrial automation and control systems, with a plug-in screw terminal design, suitable for applications with medium to large currents and voltages. In addition, the PT series also supports fast connection of large-diameter wires, with excellent durability and reliable connection performance, and meets multiple certification standards.

Product Approvals

Details
Contact Us

Details

Specifications

Product Code	Wire Range (mm²)	Amp(A)	Volt(V)	L	W	H
PT-1.5	0.14-1.5	17.5	500	45	3.5	32
PT-2.5	0.14-4	28	800	48.5	5.2	36.5
PT-4	0.2-6	38	800	56	6.2	36.5
PT-6	0.5-10	52	1000	57.7	8.2	43.5
PT-10	0.5-16	70	1000	67.7	10.2	50
PT-16	0.5-16	76	1000	75.4	12.2	52.6
PT-1.5TW	0.14-1.5	17.5	500	54	3.5	32
PT-2.5TW	0.14-4	28	800	60.5	5.2	36.5
PT-4TW	0.2-6	36	800	66.5	6.2	36.5
PT-6TW	0.5-10	52	1000	74.2	8.2	43.5
PT-10TW	0.5-16	70	1000	88.9	10.2	50.5
PT-1.5QT	0.14-1.5	17.5	500	63.2	3.5	32
PT-2.5QT	0.14-4	28	800	72.2	5.2	36.8
PT-4QT	0.2-6	38	800	77	6.2	36.5
PT-6QT	0.5-10	52	1000	90.5	8.2	43.5
PT-1.5TB	0.14-1.5	16	500	65.4	3.5	42.6
PT-2.5TB	0.14-4	26	500	68	5.2	47
PT-4TB	0.2-4	32	800	68	6.2	47
PT-1.5-3L	0.14-1.5	17.5	500	102	5.2	58
PT-2.5-3L	0.14-4	24	500	102	5.2	58
PTC-4HESI	0.2-6	6.3	500	56	6.2	64.8
