PTV 4QT Push-in Terminal Block

The PT series terminal block, with its innovative direct insertion connection technology, enables quick and easy wire connection without the need for tools, making it suitable for various occasions. This series of products offers multiple specifications and models to meet the needs of different cross-sections and voltage levels.

They use sturdy polyamide shells and copper alloy contacts to ensure durability and electrical performance. The PT series not only complies with the IEC 60947-7-1 international standard but also has the UL 94 V0 flame retardant rating. It is widely used in the fields of industrial automation, building installation, and electrical equipment, and is an ideal choice for efficient and reliable connections.

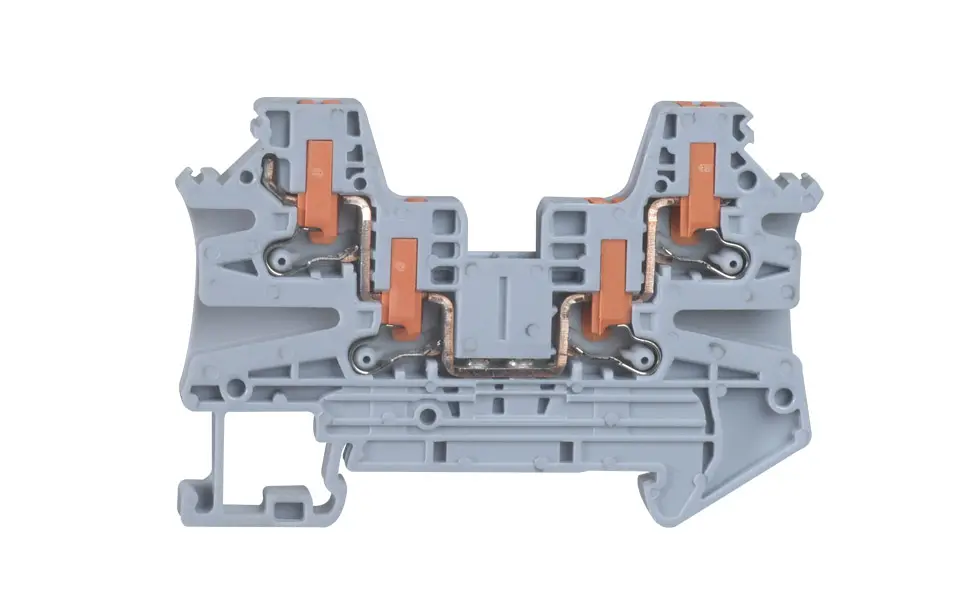

PTV 4QT Push-in Terminal Block

Features

● Voltage: 1000V
● Rated Current: 32A
● Mounting type: TH35/7.5 DIN rail
● Type of connection: Pus-in
● Working Temperature(PP): -50°C~100℃

Material

● Connector Shell: PA
● Conductive Parts: Copper

Application

The PT series is mainly used in industrial automation and control systems, with a plug-in screw terminal design, suitable for applications with medium to large currents and voltages. In addition, the PT series also supports fast connection of large-diameter wires, with excellent durability and reliable connection performance, and meets multiple certification standards.

Product Approvals

4 1

Specifications

Product Code Wire Range
(mm²)
Amp(A) Volt(V) L W H
PTV-2.5 0.14-4 28 800 50.8 5.2 36.5
PTV-4 0.2-6 32 1000 50.8 6.2 35.3
PTV-6 0.5-10 41 1000 61 8.2 42.2
PTV-2.5TW 0.14-4 28 800 60 5.2 46.9
PTV-4TW 0.2-6 32 1000 60 6.2 45.7
PTV-2.5QT 0.14-4 28 800 69.2 5.2 46.9
PTV-4QT 0.2-6 32 1000 69.2 6.2 45.7
PTV-4ME 0.2-6 24 500 70.5 6.2 48.8
PTV-6ME 0.5-6 30 1000 82 8.2 55
PTV-2.5TB 0.14-4 28 800 99.5 5.2 56
PTV-2.5PE 0.14-4 28 800 50.8 5.2 36.5
PTV-4PE 0.2-6 32 1000 50.8 6.2 35.3
