In the world of industrial electrical systems, the terminal block is more than just a simple connector—it is the backbone of secure and organized wiring. Whether you are working on a distribution box or an automated control system, selecting the right wire connector is crucial for preventing short circuits and reducing maintenance costs.
In this guide, we will break down the essential factors you need to consider to find the perfect terminal block for your specific needs.

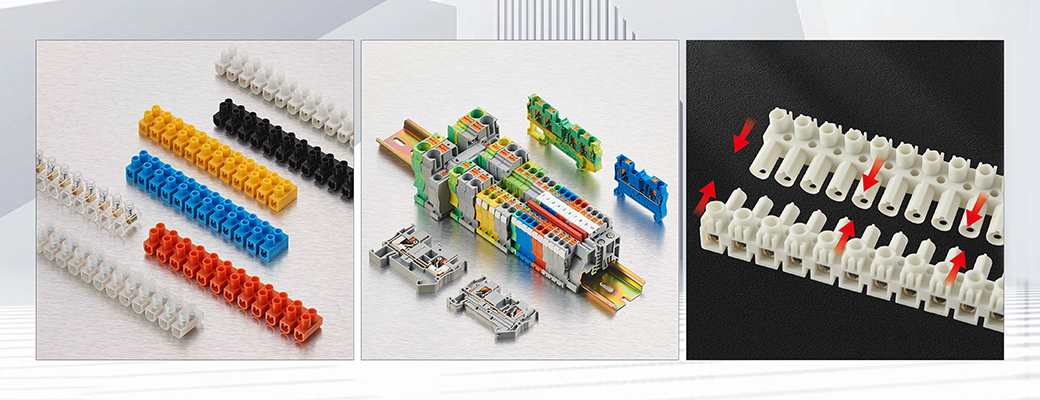

Before purchasing, it’s important to know which design fits your application. Common types include:
Pro Tip: For high-vibration environments (like railway or heavy machinery), spring-clamp designs are often superior to traditional screw terminals.
When browsing an independent site or catalog, pay close attention to these three parameters:
Always ensure the terminal block can handle at least 120% of the maximum expected current. Overloading a connector is the leading cause of electrical fires.
Check the compatible wire range. For example, some connectors are designed for solid wires, while others handle stranded wires better.
The pitch (e.g., 3.5mm, 5.0mm, or 7.62mm) must match your PCB layout or DIN rail spacing requirements.
A high-quality terminal block should feature:
Flame-retardant Housing: Look for UL94-V0 rated PA66 materials.
Conductive Parts: High-purity copper or brass with tin plating ensures low contact resistance and prevents oxidation.
Understanding failures helps in better selection. Most issues arise from:
Loose Connections: Often caused by improper torque on screw terminals.
Corrosion: Using non-plated connectors in humid or salty environments.
Incompatibility: Using the wrong terminal for the specific wire type.
