TB-3506 Barrier Terminal Block

The Barrier Terminal Block is an electrical connection device typically used on circuit boards or electrical panels. Thermosetting plastics, high current safety factor is more reliable, structural parts using plate screw crimping technology, rated AC voltage 600V.

The rated current connecting the conductive sheet is 60A, 100A, 150A, 200A, 300A, 400A, 600A, a total of seven specifications, and the cross section of the connecting wire is 10~300mm2, which is the largest cut-off terminal at present.

According to the arrangement is divided into 3P, 4P flat screw installation, with OT, UT end use, more solid and reliable, can be used for all kinds of electrical devices in the large current wiring.

TB-1006 Barrier Terminal Block left side

TB-1006 Barrier Terminal Block Left Front

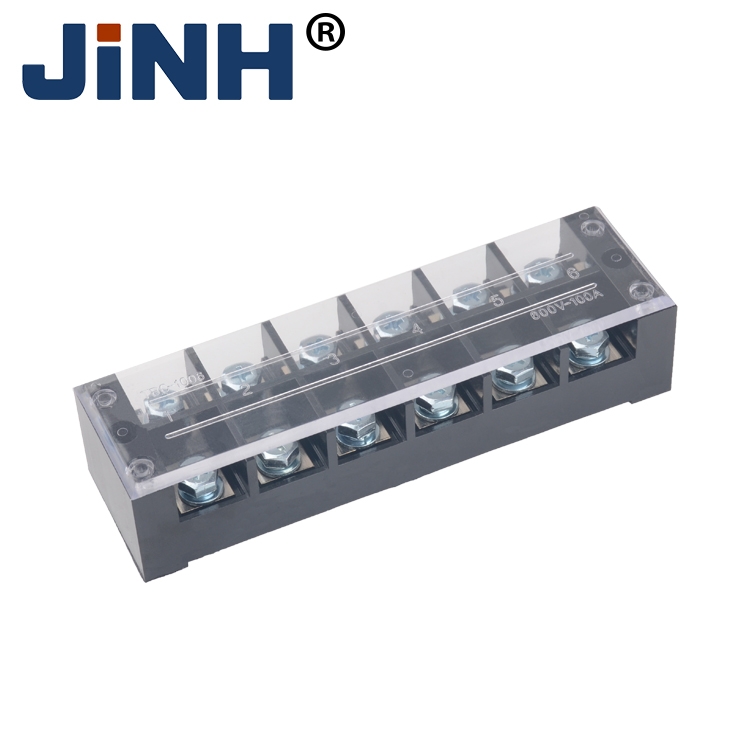

TB-1006 Barrier Terminal Block Main View

Features

● Voltage: 600V
● Rated Current: 35A
● Installation method: bolt fixed installation
● Working Temperature(PE):-40℃~100°℃

Material

● Plastic Base :ABS(black)
● Conductor :H54 brass (nickel-plated)
● Plastic cover: Transparent benzene (natural color)
● Screw :45# Steel (galvanized white)

Application

The Barrier Terminal Block, available in a wide range of current specifications and wire cross-section compatibility, is the ideal choice for ensuring a secure and dependable electrical connection in various high-current applications, making it suitable for use in a wide range of electrical devices.

Product Approvals

Details
Contact Us

Details

TB-3506 Barrier Terminal Block Structure Diagram 1

TB-3506 Barrier Terminal Block Structure Diagram 2

Specifications

Product Code	Wire section mm²	Amp	Volt(V)	L	W	H
TB-1503	0.5-1.5	15A	600V	45.5	22	17.5
TB-1504	0.5-1.5			54.2	22	17.5
TB-1505	0.5-1.5			63	22	17.5
TB-1506	0.5-1.5			73	22	17.5
TB-1510	0.5-1.5			107.5	22	17.5
TB-1512	0.5-1.5			125.5	22	17.5
TB-2503	0.5-2.5	25A		53	30	19
TB-2504	0.5-2.5			67	30	19
TB-2505	0.5-2.5			79	30	19
TB-2506	0.5-2.5			91	30	19
TB-2510	0.5-2.5			139	30	19
TB-2512	0.5-2.5			163	30	19
TB-3503	0.5-2.5	35A		55	30	19
TB-3504	0.5-2.5			67	30	19
TB-3505	0.5-2.5			80	30	19
TB-3506	0.5-2.5			91	30	19
TB-3510	0.5-2.5			139.5	30	19
TB-3512	0.5-2.5			165	30	19
TB-4503	1.5-4	45A		70	38	23.5
TB-4504	1.5-4			86	38	23.5
TB-4505	1.5-4			103	38	23.5
TB-4506	1.5-4			120	38	23.5
TB-4510	1.5-4			187	38	23.5
TB-4512	1.5-4			221	38	23.5
TB-6003	2.5-6	60A		75	38	30
TB-6004	2.5-6			93	38	30
TB-6006	2.5-6			128.5	38	30
TB-6012	2.5-6			234.5	38	30
TB-1003	2.5-10	100A		86.5	43.5	35
TB-1004	2.5-10			108.5	43.5	35
TB-1006	2.5-10			152.5	43.5	35
TB-1012	2.5-10			284.5	43.5	35

Contact Us

Download

Barrier Terminal Block.pdf
