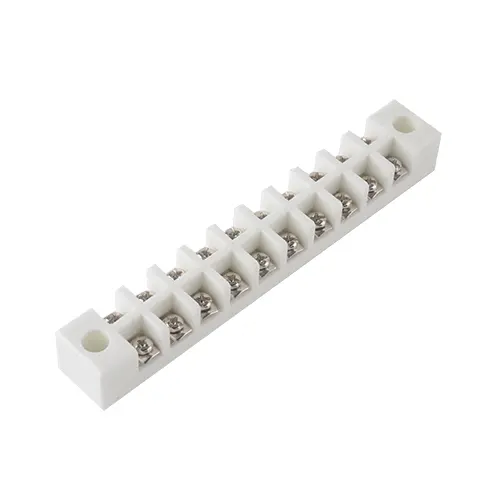

TB-40010 TB-type Ceramic Terminal Block

The TB-type ceramic terminal blocks are made of engineering ceramics, offering excellent electrical insulation, high-temperature resistance, and corrosion resistance. Compared to basic ceramic terminal posts, TB-type ceramic terminal blocks feature a more compact and complex structure, making them suitable for higher installation densities and more demanding electrical requirements, such as multiple connection points and more intricate wiring methods.

Additionally, TB-type ceramic terminal blocks have been upgraded in various aspects, including lower contact resistance, higher heat resistance, and better mechanical stability, providing more stable and safer electrical connections across various industries.

TB-40010

Features

● Voltage: :450V
● Rated Current: 15A-40A
● Color: White or Grayish-white
● No. Of circuits: 3P, 4P, 6P,10P, 12P

Material

● Terminal shell:Ceramic
● Conductive Parts: Brass

Application

TB-type ceramic terminals are widely used in industrial automation, power control systems, and electrical connections in high-temperature environments. With their compact design, excellent heat resistance, and superior electrical performance, they are particularly suited for applications requiring high-density wiring and long-term stability, providing reliable connection solutions in demanding working conditions.

Product Approvals

4 1

Specifications

Product Code Pole Current(A) Voltage(V) Wire Gauge
(Max mm²)
TB-4003 3P 15-40A 450V 6
TB-4004 4P 15-40A
TB-4006 6P 15-40A
TB-40010 10P 15-40A
TB-4012 12P 15-40A
TB-6002 2P 60-100A 10
TB-6004 4P 60-100A
TB-6006 6P 60-100A
