UK2.5B Universal Terminal Block

JHUK series combined terminal row adopts frame type screw connection structure. The design complies with IEC60947-1, GB14048 standards, which is widely used in the circuit of AC 50Hz(60Hz), rated voltage 660V, DC 40V and below, rated sectional are a 0.75~150mm² connection conductor, it also is suitable for connecting the circle copper conductor of tube terminal that is not specially processed or pressure welding.

Small volume, complete set of specifications, big connected conductor sectional area and good electrical conductivity, the one that is below50mm²adopts copper press line frame and copper fasten screw; and the one that is above 50mm²adopts copper press line frame and steel screw and copper skirt plate. It has a big tighten moment and self-locking function.

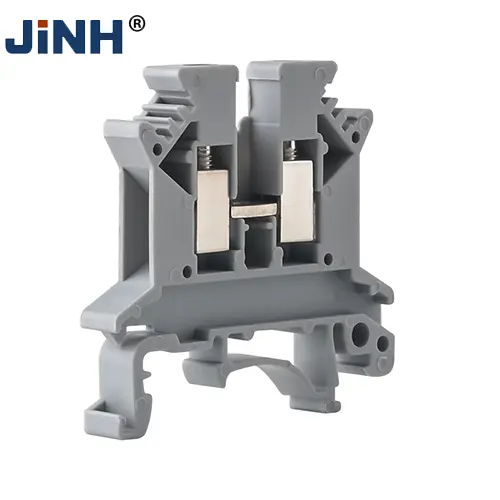

UK2.5B Universal Terminal Block Front Three

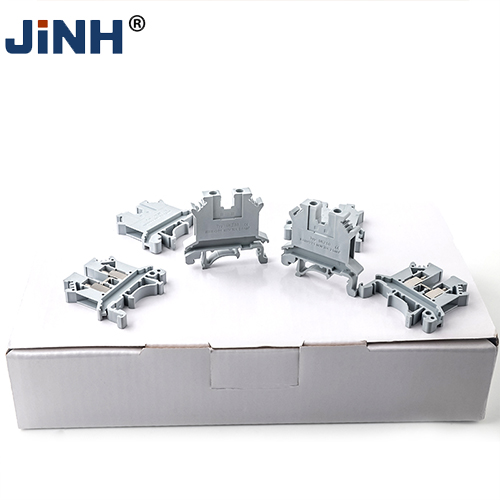

UK2.5B Universal Terminal Block Multiple

UK2.5B Universal Terminal Block Rose Red

UK2.5B Universal Terminal Block Side Link Gray

UK2.5B Universal Terminal Block Side Link Slender

UK2.5B Universal Terminal Block Side Link

UK2.5B Universal Terminal Block Top View

Features

● Voltage: 690V
● Rated Current: 32A
● Mounting type: TH35/7.5 DIN rail
● Type of connection: Screw connection
● Working Temperature(PP): -50°C~100℃

Material

● Connector Shell: PA
● Conductive Parts: Copper

Application

The JHUK series combined terminal row, compliant with IEC60947-1 and GB14048 standards, offers a compact and versatile solution for secure electrical connections in industrial control panels, power distribution systems, and renewable energy applications.

Product Approvals

Details
Contact Us

Details

UK2.5B Universal Terminal Block Structure Diagram1

UK2.5B Universal Terminal Block Structure Diagram2

Specifications

Product Code	Mm²		Amp	Volt(V)	L	W	H
Product Code	Rigidity wire	Flexible wire	Amp	Volt(V)	L	W	H
UK1.5N	0.2-4	0.2-1.5	32A	690V	42.5	5.7	42
UK2.5B	0.2-4	0.2-2.5	32A	690V	42.5	6.2	41
UK3N	0.2-4	0.2-25	32A	800V	42.5	5.2	46
UK5N	0.2-6	0.2-4	41A	800V	42.5	6.2	46
UK6N	0.2-10	0.2-6	57A	800V	42.5	8.2	46
UK10N	0.5-16	0.5-10	76A	800V	42.5	10.2	46
UK16N	2.5-25	4-16	101A	800V	42.5	12.2	53
UK25N	2.5-35	4-25	100A	800V	42.5	25	46
UK35N	10-35	10-35	125A	800V	56	15.3	51
UK50N	16-50	25-50	150A	1000V	77.5	20	78
UK70N	25-70	34-70	192A	1000V	82	22.5	79.5
UK95N	25-95	35-95	232A	1000V	89	25.2	90.5
UK150N	35-150	50-150	309A	1000V	106	31	112
2UIK35N	10-35	0.2-6	125A	800V	51	15.2	62
