UKK160 High-Voltage Distribution Junction Terminal

The UKK160 Distribution Junction Terminal is built for high-voltage (690V IEC) environments, offering an 80A rated current capacity for reliable power distribution. Ideal for industrial, commercial, and energy sector applications, it ensures safe and efficient connection management.

Made with a flame-retardant UL94V0-rated PA Nylon shell and nickel-plated brass components, the UKK160 provides superior durability and electrical safety. The transparent cover allows for easy connection inspection, enhancing maintenance efficiency and reliability. This distribution junction terminal is the perfect choice for demanding high-voltage systems, delivering both safety and performance.

Features

● Voltage: 690V IEC
● Rated Current: 160A
● The transparent cover is good to see if the cable is in a reliable connection

Material

● Connector Shell: PA Nylon
● Grade of flame retardant: UL94V0
● Metal material: Brass nickel plated

Application

The Unipolar Distribution Block finds its niche in diverse applications, ranging from industrial control panels to power distribution in commercial buildings. Its high-voltage capabilities and transparent cover for connection monitoring make it a versatile solution for a wide spectrum of electrical distribution needs.

Product Approvals

4 1

Details

UKK160 Unipolar Distribution Block structure diagram
UKK160 Unipolar Distribution Block diagram

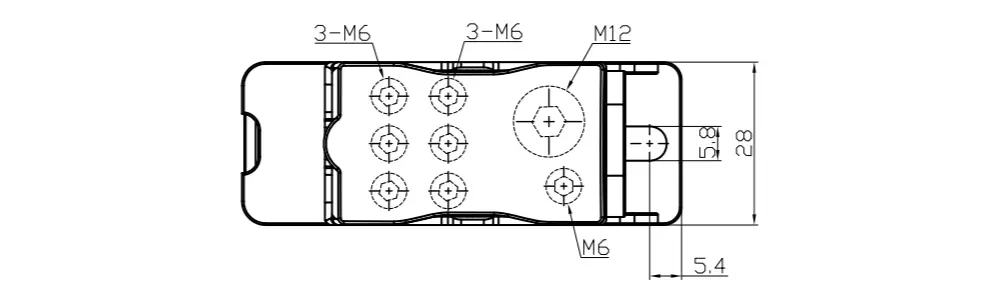

UKK160 Unipolar Distribution Block design

Specifications

ltem No. Current(Amp) Connector type Voltage(V) Conductor connection range
(mm²)		 Quantity of hole
(pcs)		 Dimensions
(LxWXH)(mm)
JHUKK80 80A UKK80 Unipolar Distribution Block 690VIEC 6 to 16
2.5 to 6
2.5 to 16		 x1
x4
x2		 28x65x47
JHUKK125 125A UKK125A 690VIEC 10 to 35
2.5 to 16		 x1
x7		 28x74x48
JHUKK160 160A UKK160A 690VIEC 10 to 70
2.5 to 16		 x1
x7		 28x74x48
JHUKK250 250A UKK250A 690VIEC 35 to 120
6 to 35
2.5 to 16
2.5 to 10		 x1
x2
x5
x4		 47x95x50
JHUKK400 400A UKK400A 690VIEC 95 to 185
6 to 35
2.5 to 16
2.5 to 10		 x1
x2
x5
x4		 47x95x50
JHUKK500 500A UKK500 690VIEC 4×15.5×0.8 to 8×24
6 to 35
2.5 to 16
2.5 to 10		 x1
x2
x5
x4		 47x95x50
