UKK250 Terminal Block 250A Durable Power Solution

The UKK250 Terminal Block 250A is a robust electrical power distribution device tailored for high-voltage environments up to 690V IEC. With a rated current capacity of 250A and a transparent cover for quick inspection, it guarantees reliable connections and operational safety.

Constructed with a flame-retardant UL94V0-rated PA Nylon shell and nickel-plated brass components, the UKK250 ensures superior durability and electrical safety. Ideal for industrial, commercial, and energy applications, it delivers a dependable and long-lasting power distribution solution.

UKK250 Terminal Block 250A Durable Power Solution

UKK250 Terminal Block 250A Durable Power Solutionfront

UKK250 Terminal Block 250A Durable Power Solutionopen

UKK250 Terminal Block 250A Durable Power Solution top

Features

● Voltage: 690V IEC
● Rated Current: 250A
● The transparent cover is good to see if the cable is in a reliable connection

Material

● Connector Shell: PA Nylon
● Grade of flame retardant: UL94V0
● Metal material: Brass nickel plated

Application

The Unipolar Distribution Block finds its niche in diverse applications, ranging from industrial control panels to power distribution in commercial buildings. Its high-voltage capabilities and transparent cover for connection monitoring make it a versatile solution for a wide spectrum of electrical distribution needs.

Product Approvals

Details
Contact Us

Details

UKK250 Unipolar Distribution Block structure diagram

UKK250 Unipolar Distribution Block diagram

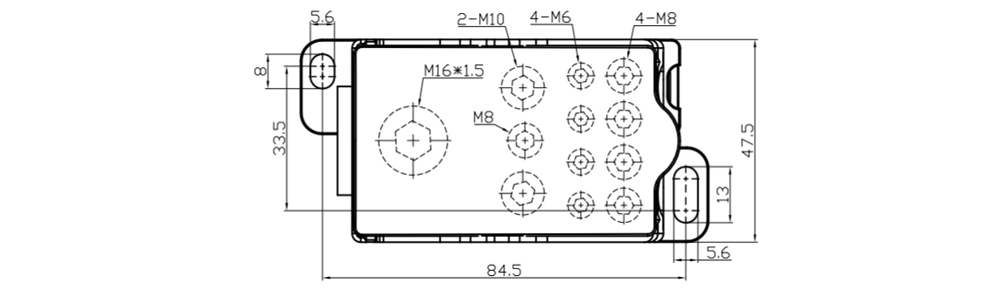

UKK250 Unipolar Distribution Block design

Specifications

ltem No.	Current(Amp)	Connector type	Voltage(V)	Conductor connection range (mm²)	Quantity of hole (pcs)	Dimensions (LxWXH)(mm)
JHUKK80	80A		690VIEC	6 to 16 2.5 to 6 2.5 to 16	x1 x4 x2	28x65x47
JHUKK125	125A		690VIEC	10 to 35 2.5 to 16	x1 x7	28x74x48
JHUKK160	160A		690VIEC	10 to 70 2.5 to 16	x1 x7	28x74x48
JHUKK250	250A		690VIEC	35 to 120 6 to 35 2.5 to 16 2.5 to 10	x1 x2 x5 x4	47x95x50
JHUKK400	400A		690VIEC	95 to 185 6 to 35 2.5 to 16 2.5 to 10	x1 x2 x5 x4	47x95x50
JHUKK500	500A		690VIEC	4×15.5×0.8 to 8×24 6 to 35 2.5 to 16 2.5 to 10	x1 x2 x5 x4	47x95x50
