UKK500 500A Distribution Block UKK Durable and Safe

The UKK500 500A Distribution Block UKK is a high-performance solution for efficient power distribution in high-voltage environments (up to 690V IEC). Designed with a transparent cover for quick and reliable connection inspection, it features a flame-retardant UL94V0-rated PA Nylon shell and nickel-plated brass components, ensuring exceptional safety, durability, and electrical conductivity.

This distribution block is ideal for industrial, commercial, and energy applications, offering a trusted and long-lasting power distribution solution.

Features

● Voltage: 690V IEC
● Rated Current: 400A
● The transparent cover is good to see if the cable is in a reliable connection

Material

● Connector Shell: PA Nylon
● Grade of flame retardant: UL94V0
● Metal material: Brass nickel plated

Application

The Unipolar Distribution Block finds its niche in diverse applications, ranging from industrial control panels to power distribution in commercial buildings. Its high-voltage capabilities and transparent cover for connection monitoring make it a versatile solution for a wide spectrum of electrical distribution needs.

Product Approvals

4 1

Details

UKK500 Unipolar Distribution Block Structure diagram
UKK500 Unipolar Distribution Block Structure

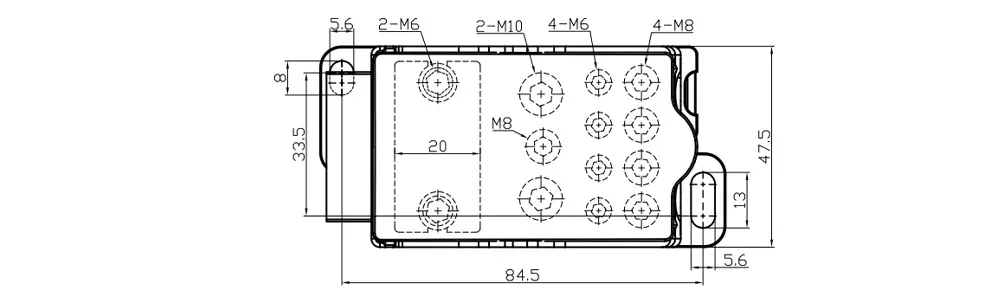

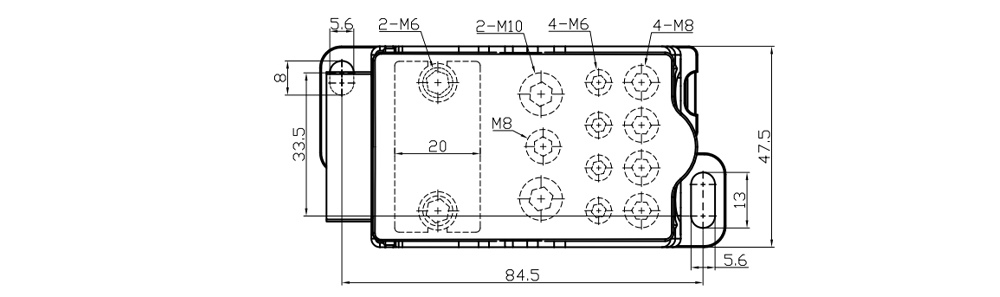

UKK500 Unipolar Distribution Block design

Specifications

ltem No. Current(Amp) Connector type Voltage(V) Conductor connection range
(mm²)		 Quantity of hole
(pcs)		 Dimensions
(LxWXH)(mm)
JHUKK80 80A UKK80 Unipolar Distribution Block 690VIEC 6 to 16
2.5 to 6
2.5 to 16		 x1
x4
x2		 28x65x47
JHUKK125 125A UKK125A 690VIEC 10 to 35
2.5 to 16		 x1
x7		 28x74x48
JHUKK160 160A UKK160A 690VIEC 10 to 70
2.5 to 16		 x1
x7		 28x74x48
JHUKK250 250A UKK250A 690VIEC 35 to 120
6 to 35
2.5 to 16
2.5 to 10		 x1
x2
x5
x4		 47x95x50
JHUKK400 400A UKK400A 690VIEC 95 to 185
6 to 35
2.5 to 16
2.5 to 10		 x1
x2
x5
x4		 47x95x50
JHUKK500 500A UKK500 690VIEC 4×15.5×0.8 to 8×24
6 to 35
2.5 to 16
2.5 to 10		 x1
x2
x5
x4		 47x95x50
